Lead Time: 15-25 days
Materials: stainless steel 304
Voltage: Customized, 110v-440v,50-60hz.
Core Components Brand: Siemens,Delta, Schneider, Baltur
Shipping: Support to sea freight, land and air freight
Service:
1 One year warranty, lifetime service
2 Local engineer on-site service available within 14 working days
Aquarium Fish Feed Twin Screw Extruder
1.Introduction
The styles of fish feed have gone through a technique from raw to cooked, from shallow processing to deep processing, from the original fish and shrimp crushed without delay to feeding, to the later matured pellet feeding, to the cutting-edge nutrient ratio medical feeding. the extruded fish feed machinery and system manufacturing line specializes in the production of numerous kinds and specs of extruded aquatic fish feed for small and medium aquaculture farms and man or woman fisheries. the output of our fish feed system is a hundred kg in line with hour -10 lots per hour, divided into distinctive gadget configurations. high-protein extruded feed pellets, excessive protein content, fish develop fast, absorb well, and the degree of feed waste is low, and fish excretion has much less harm to water satisfactory, and may be recycled and used to develop ecological agriculture. it is a powerful tool and means for sustainable fishery improvement.
2.Production Video

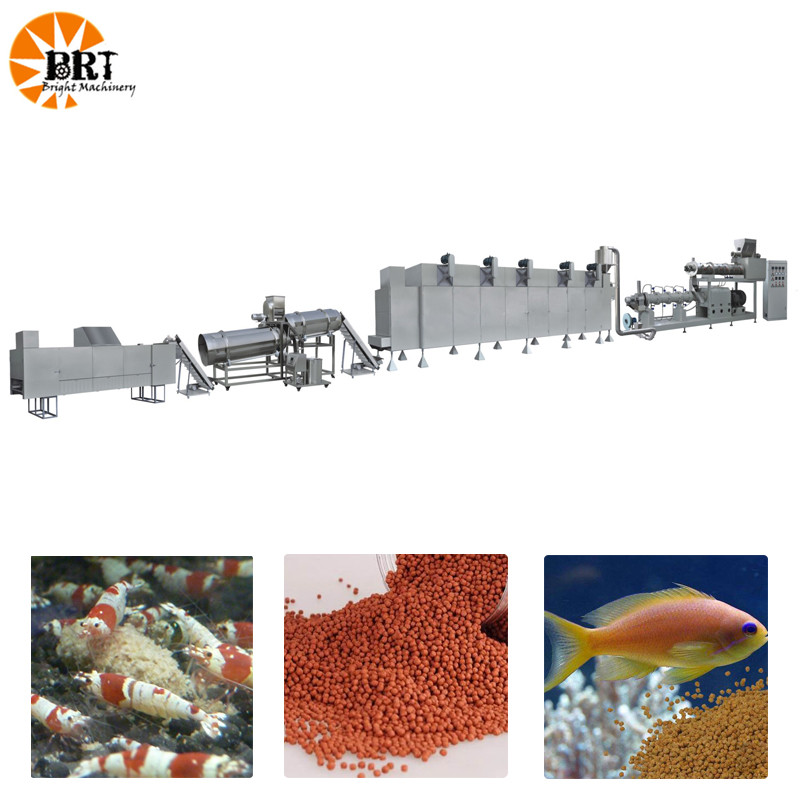

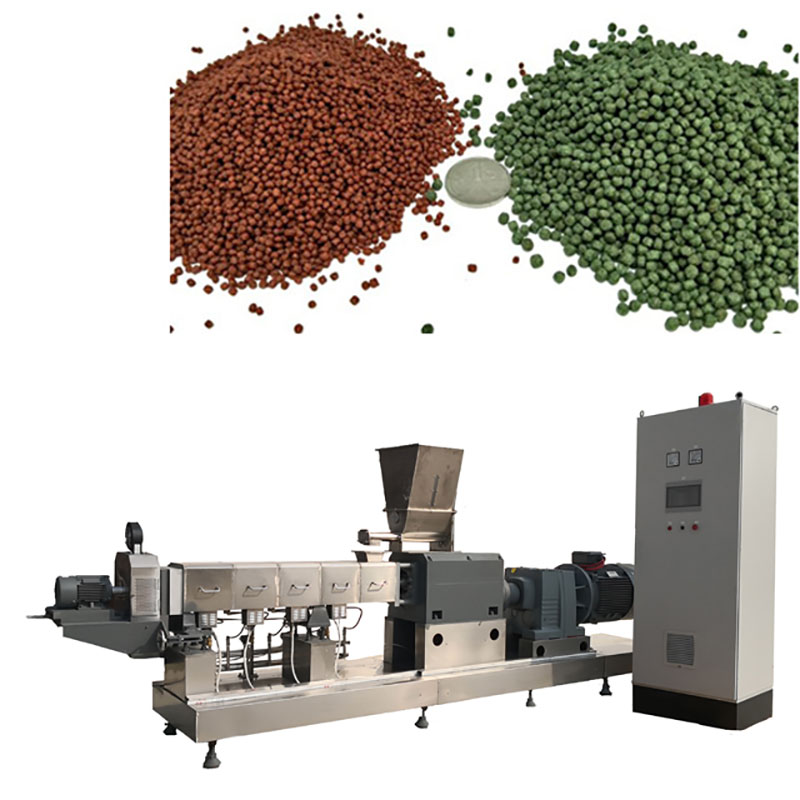

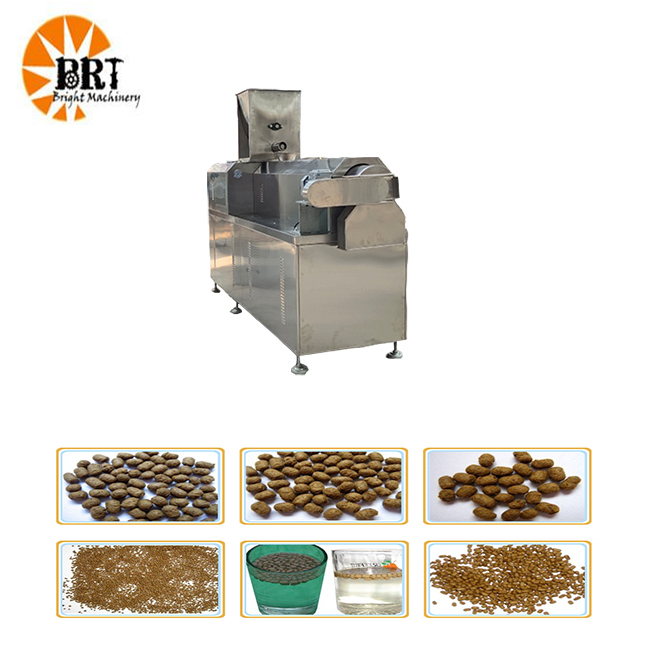

3.Machine Display
4.Samples
5.Technical Parameter
Model | Install power(kw) | Actuall consumption(kw) | Capacity | Size(mm) |
DSE-65 production line | 80 | 56-64 | 100-150 kg/h | 21000*1500*3000 |
DSE-70 production line | 116 | 82-93 | 200-250 kg/h | 21000*1500*3000 |
DSE-75 production line | 154 | 108-123 | 300-350 kg/h | 25000*1500*3200 |
DSE-85 production line | 194 | 137-156 | 400-500 kg/h | 25000*1500*3200 |
DSE-95S productionline | 165(Steam dryer) | 115-132 | 1000-1800 kg/h | 28000*1500*3500 |
DSE-95S-2 production line | 295(Steam dryer) | 206-236 | 2000-3000 Kg/h | 25000*20000*6000 |
DSE-95S-3 production line | 375(Steam dryer) | 263-300 | 3000-4000 Kg/h | 25000*20000*13000 |
DSE-95S-4 production line | 496(Steam dryer) | 347-397 | 4000-5000 Kg/h | 30000*25000*16000 |
DSE-130S production line | 540(Steam dryer) | 380-432 | 5000-6000 Kg/h | 30000*30000*16000 |

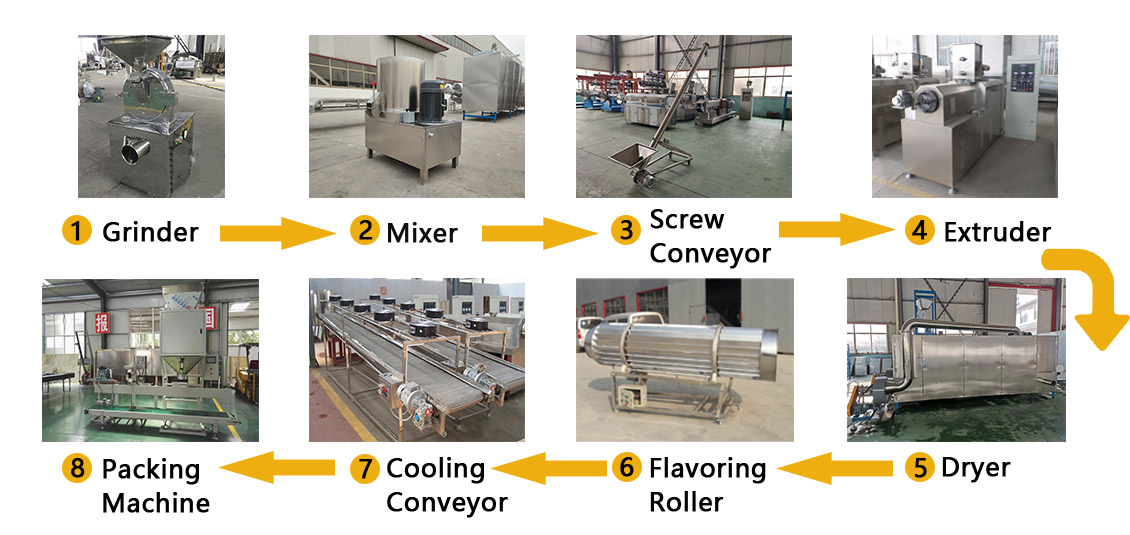

6.Flow Chart
Screw conveyor→Mixer→Screw conveyor→Extruder→Air conveyor→Dryer→Sifter→Hoist→Flavoring roller→Cooling conveyor
7.Product Advantages
1.Adopt Siemens main motor, Delta inverter, Schneider Omron ABB electrical components, the world's top brands, efficient and stable operation, reliable quality, durable, global accessories, can be directly purchased locally, effectively reducing production cost.
2.The screw material is high-speed alloy steel, carburized, with hardness up to HRC 55-65, high wear resistance, high hardness, good toughness, optional 38CrMoAl, 12CrMoV, W6Mo5Cr4V2 material, long service life. Some models are equipped with a combination screw, which has wider applicability of raw materials. The screw combination method can be adjusted according to different products, and one machine can be used for multiple purposes.
3.The main motor, rotary cutting motor and feeding motor are all controlled by frequency conversion, which can realize soft start and effectively protect the motor, and can adjust the speed according to the product status to produce higher quality products; equipped with PLC touch screen control system, equipment temperature and The speed adjustment is more digital and the control is more precise.
4.Using a new type of box, the box material QT400, good stability. Gear material 20CrNiMoA, carburizing and quenching, hardness HRC58-62, high precision, low noise, long service life; using Japanese NSK, SKF bearings, high precision, long life, stable performance; oil pump motor, forced internal circulation lubrication; condenser, lower The surface temperature of gears and bearings increases the service life; the filter cleans the impurities in the oil, improves the lubrication effect and prolongs the service life.
5.According to the actual situation, different energy sources, electricity, fuel oil, gas, steam can be used to save production costs; equipped with circulating fans and dehumidification fans to promote heat circulation, remove water vapor, and improve drying efficiency; 304 stainless steel mesh cloth and mesh are used. belt to ensure product quality; adjustable running speed, adjust drying time according to different products, high efficiency.
