Corn Puff Snack Extruder Machine

Corn Puff Snack Extruder Machine

1 Introduction

The automatic puff Snack Production Line makes powdered raw substances which include corn flour into puff snack via the system of mixing,puffing,drying,flavoring and cooling. the identical manufacturing line can produce puff snacks of diverse styles and sizes. on the same time, the equal puff snack can be matched with exceptional machine manufacturing strains according to specific capacity

2 Production Video

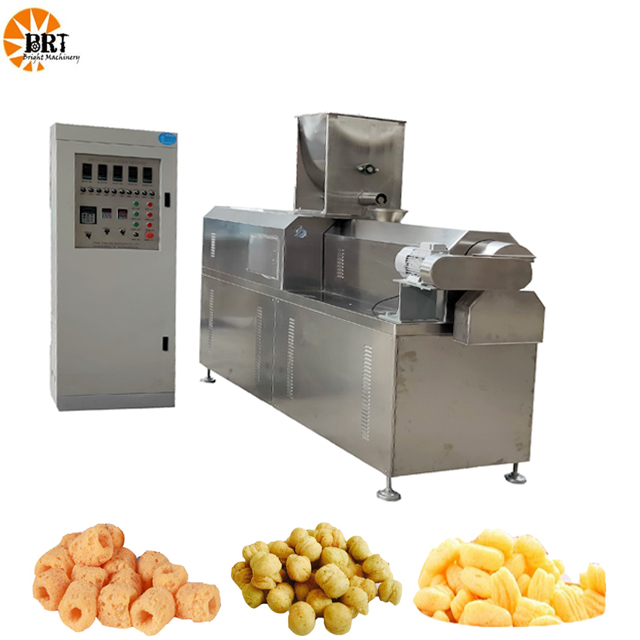

3 Machine Display

4 Samples

5 Technical Parameter

6 Flow Chart

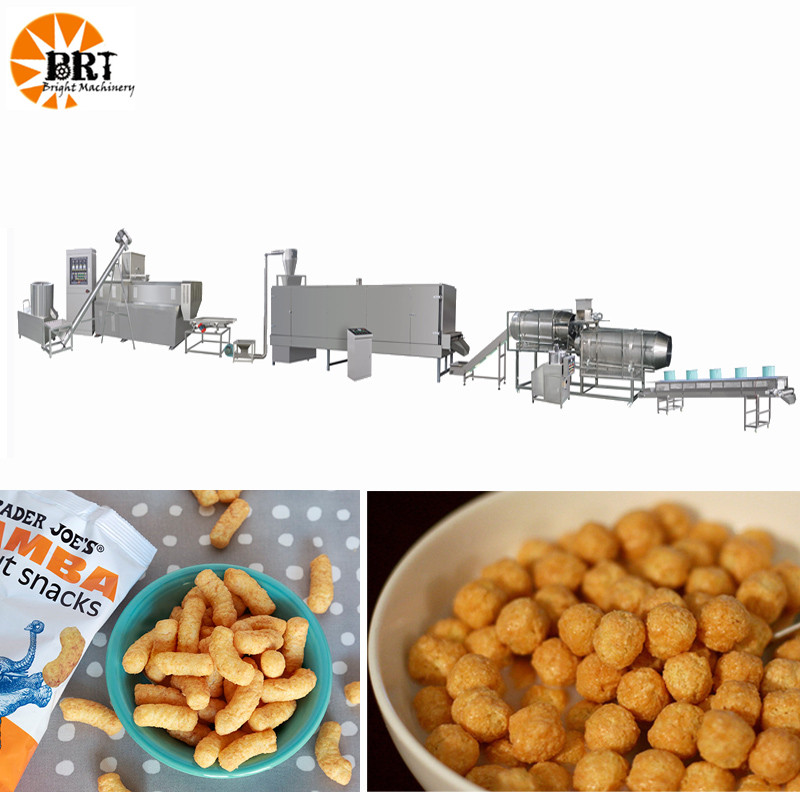

Mixer→Screw Conveyor→Extruder→Air Conveyor→Dryer→Hoister→Flavoring System→Cooling Conveyor

7 Product Advantage

1.Adopt Siemens main motor, Delta inverter, Schneider Omron ABB electrical components, the world's famous brands, safe, reliable and durable, can effectively control the motor speed according to the state of the product, reduce consumption.

2.The screw material is high-speed alloy steel, carburized, with hardness up to HRC 55-65, high wear resistance, high hardness, good toughness, optional 38CrMoAl, 12CrMoV, W6Mo5Cr4V2 material, long service life. Some models are equipped with a combination screw, which has wider applicability of raw materials. The screw combination method can be adjusted according to different products, and one machine can be used for multiple purposes.

3.The main motor, rotary cutting motor and feeding motor are all controlled by frequency conversion, which can realize soft start and effectively protect the motor, and can adjust the speed according to the product status to produce higher quality products; equipped with PLC touch screen control system, equipment temperature and The speed adjustment is more digital and the control is more precise.

4.Using a new type of box, the box material QT400, good stability. Gear material 20CrNiMoA, carburizing and quenching, hardness HRC58-62, high precision, low noise, long service life; using Japanese NSK, SKF bearings, high precision, long life, stable performance; oil pump motor, forced internal circulation lubrication; condenser, lower The surface temperature of gears and bearings increases the service life; the filter cleans the impurities in the oil, improves the lubrication effect and prolongs the service life.

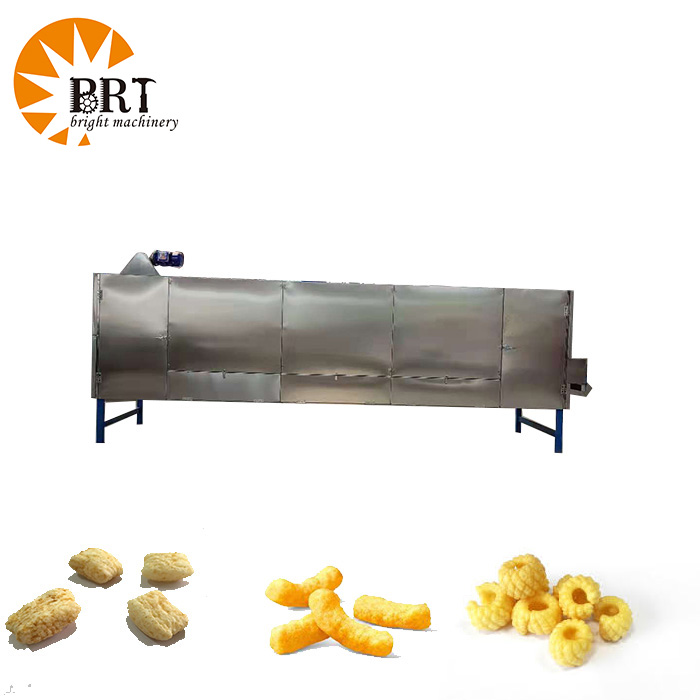

5.According to the actual situation, different energy sources, electricity, fuel oil, gas, steam can be used to save production costs; equipped with circulating fans and dehumidification fans to promote heat circulation, remove water vapor, and improve drying efficiency; 304 stainless steel mesh cloth and mesh are used. belt to ensure product quality; adjustable running speed, adjust drying time according to different products, high efficiency.
