Puff Food Making Machine Extruded

Lead Time: 15-25 days

Materials: stainless steel 304

Voltage: Customized, 110v-440v,50-60hz.

Core Components Brand: Siemens,Delta, Schneider, Baltur

Shipping: Support to sea freight, land and air freight

Service:

1 One year warranty, lifetime service

2 Local engineer on-site service available within 14 working days


  Contact Now
Product Details

Puff Food Making Machine Extruded


1. Introduction

Puffing video line refers to the material is crushed, mixed, humidified, into the spiral extruder, the material in the extruder through high temperature steaming and through a specially designed die hole and puffed food. Raw materials are mainly corn flour, rice, flour and other grain starch. The food produced by puffing machine is small, varied in shape and beautifully packaged.A lot of differnet shapes die moulds for you too choose to enhance the products variety .


2. Production Video

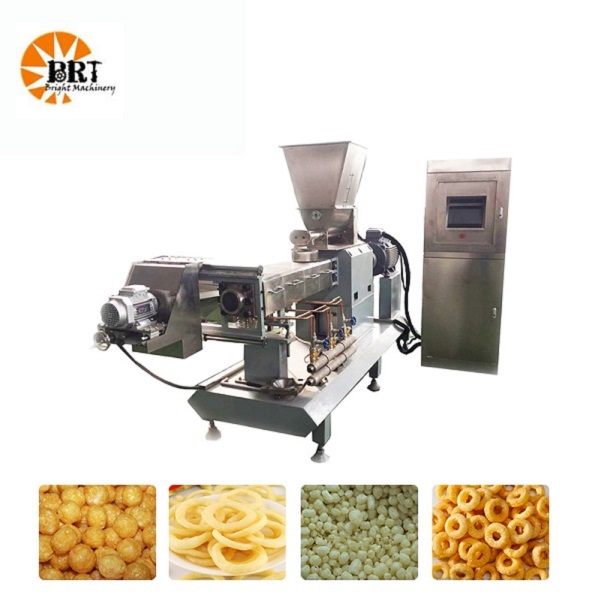

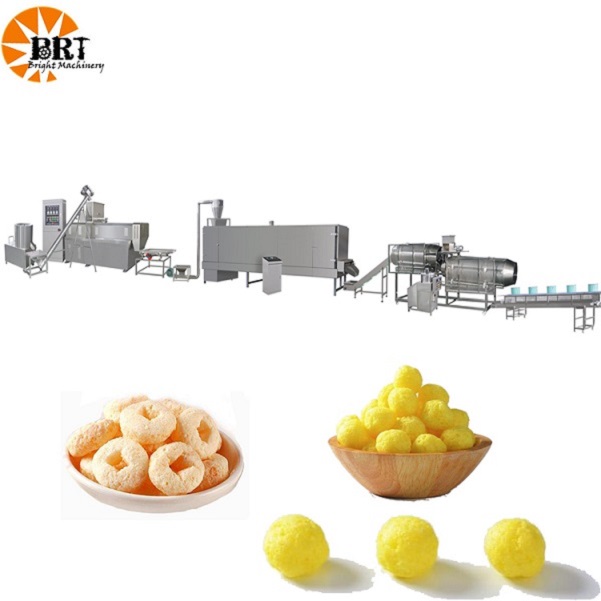

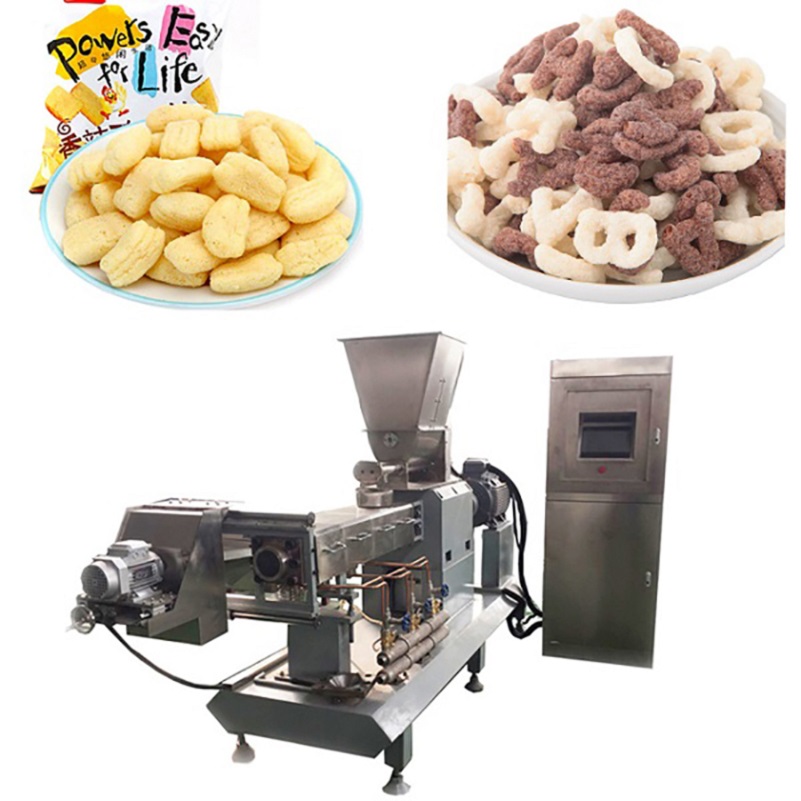

3. Machine Display

Puff Food Making Machine Extruded


4. Samples

Puff Food Making Machine ExtrudedPuff Food Making Machine Extruded Puff Food Making Machine ExtrudedPuff Food Making Machine Extruded


 Puff Food Making Machine ExtrudedPuff Food Making Machine Extruded Puff Food Making Machine ExtrudedPuff Food Making Machine Extruded


5. Technical Parameter

Model

Capacity/output

Installed Power

Power Consumption

Dimension

DSE65 Puff Snack Production Line

100-150kg/h

120kw

96kw

26*3*2.2m

DSE65F Puff Snack Production Line

100-150kg/h

124kw

100kw

26*3*2.2m

DSE70 Puff Snack Production Line

200-250kg/h

164kw

132kw

28*3*2.2m

DSE70F Puff Snack Production Line

200-250kg/h

130kw

104kw

26*3*2.2m

DSE85 Puff Snack Production Line

300-500kg/h

270kw

216kw

32*3*2.2m

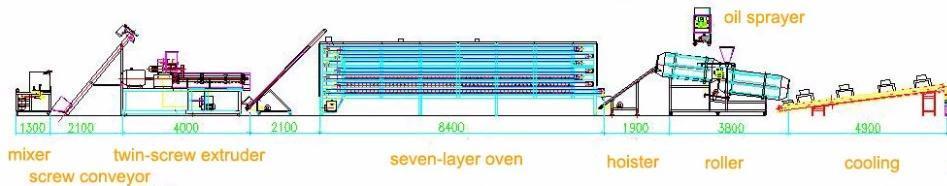

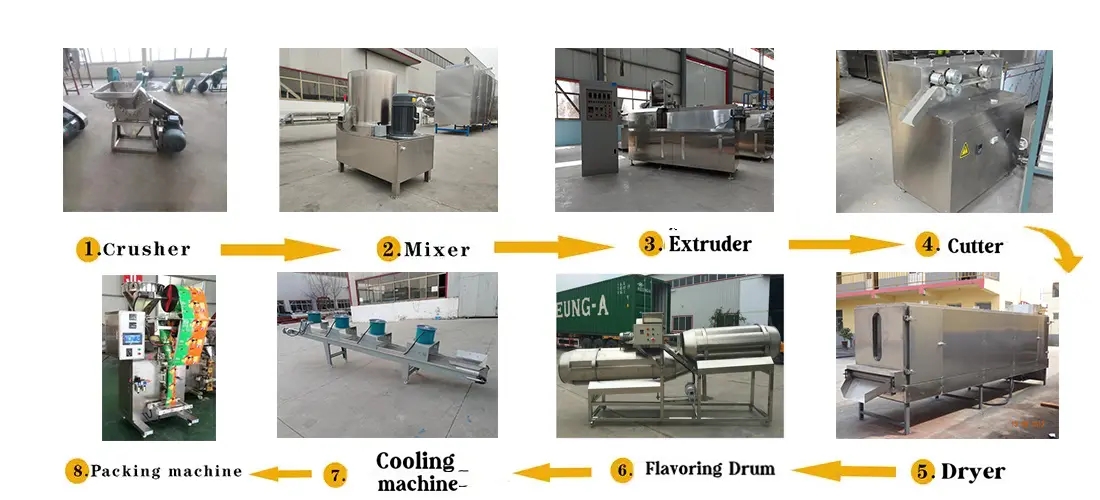

6. Flow Chart

Mixer→Screw Conveyor→Extruder→Air Conveyor→Dryer→Hoister→Flavoring System→Cooling Conveyor

Puff Food Making Machine Extruded


7. Product Advantage

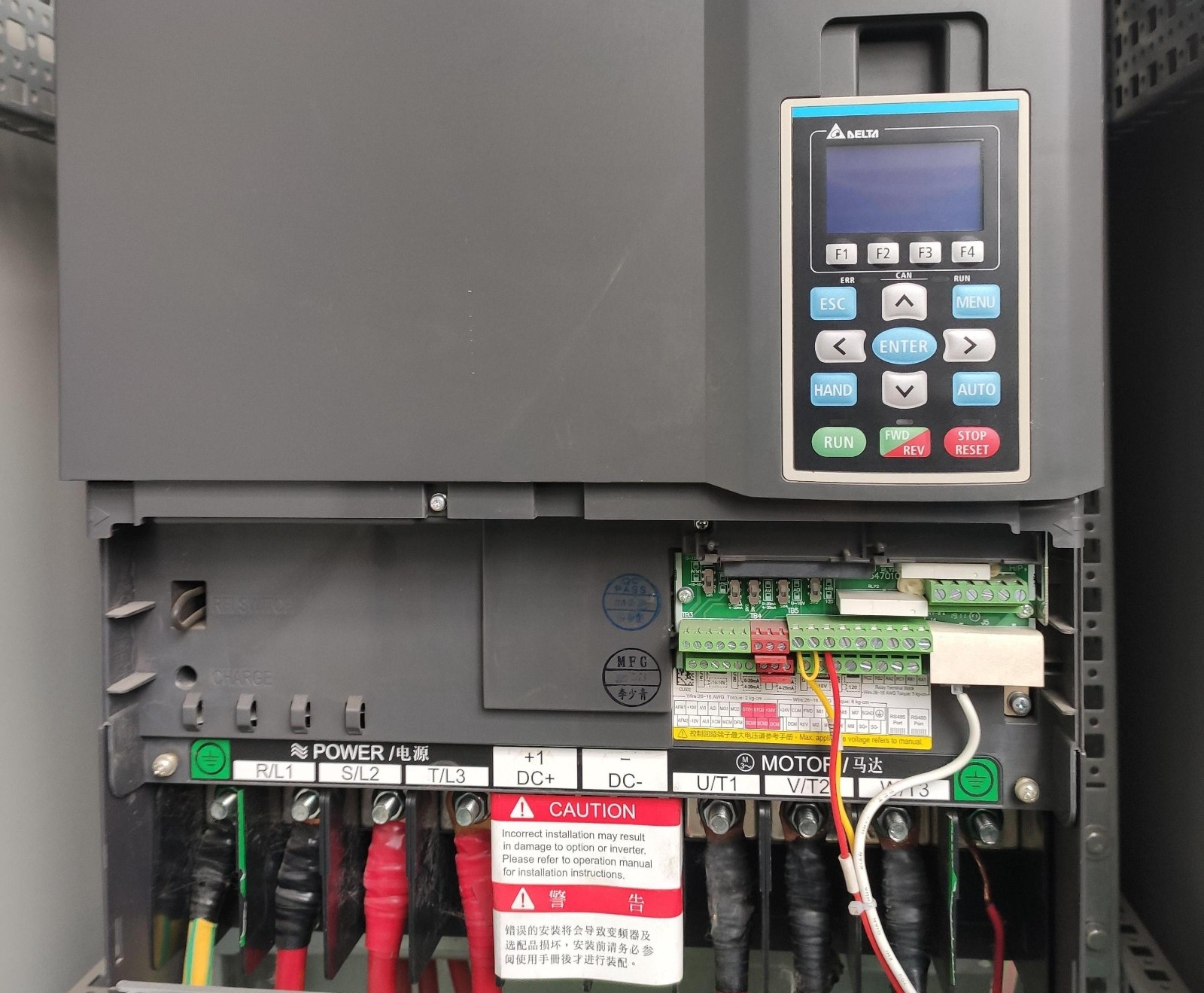

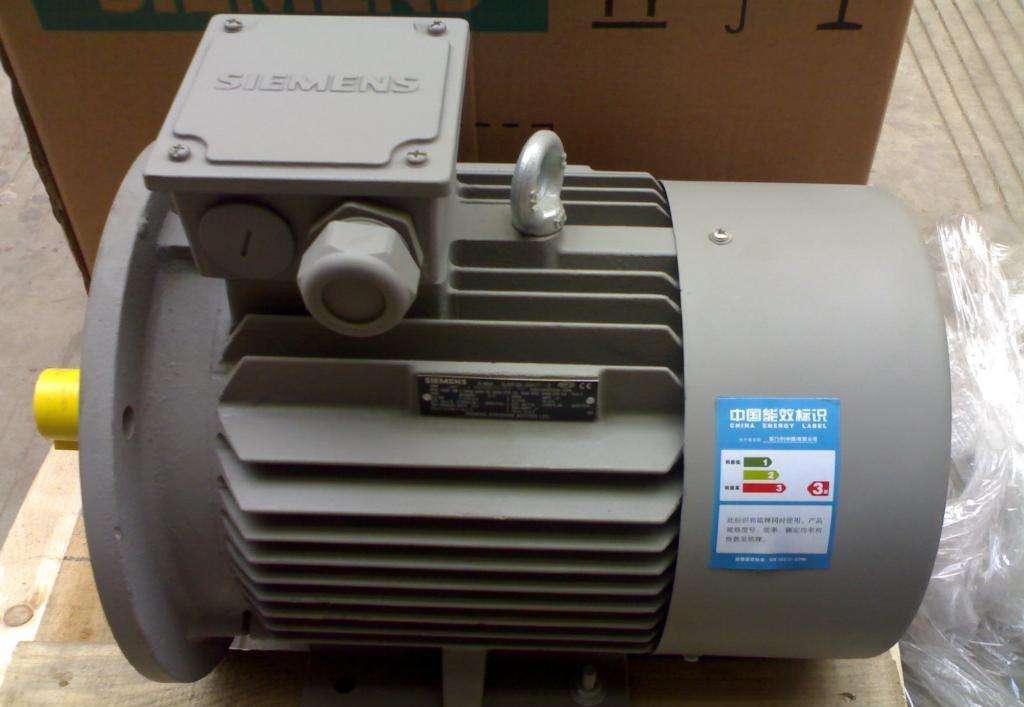

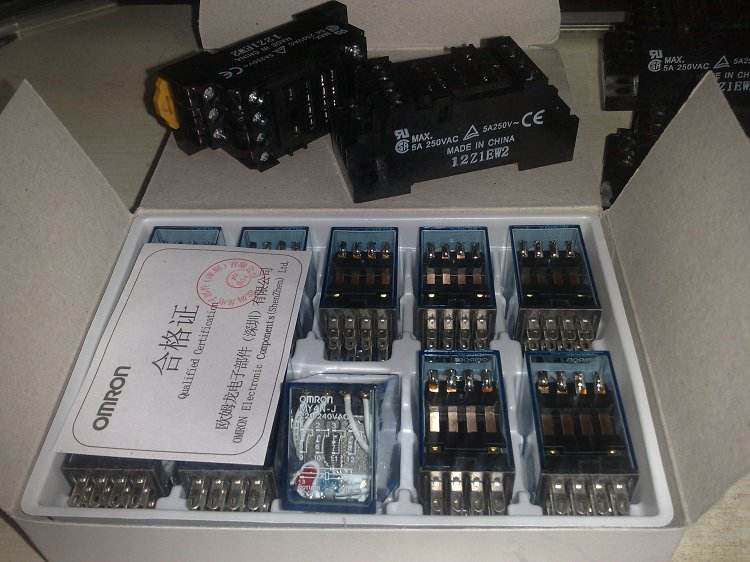

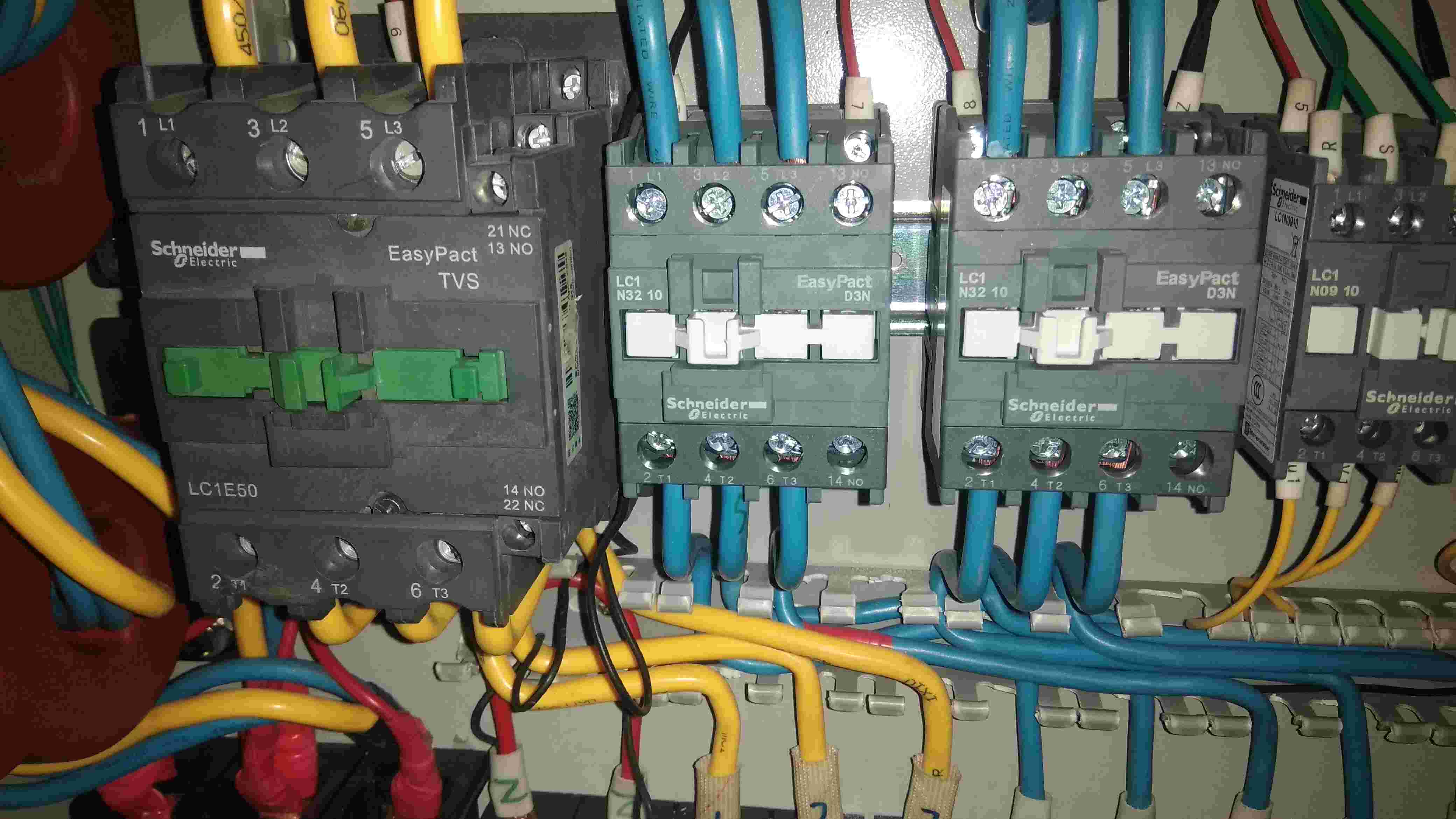

1.Use Siemens main motor, Delta inverter, Schneider or Omron or ABB brand electrical components, the world's top brands, cefficient and stable operation, dependable high-quality, long lasting, global add-ons, can be directly purchased regionally, efficiently reducing manufacturing fee.


Puff Food Making Machine Extruded Puff Food Making Machine Extruded Puff Food Making Machine Extruded Puff Food Making Machine Extruded

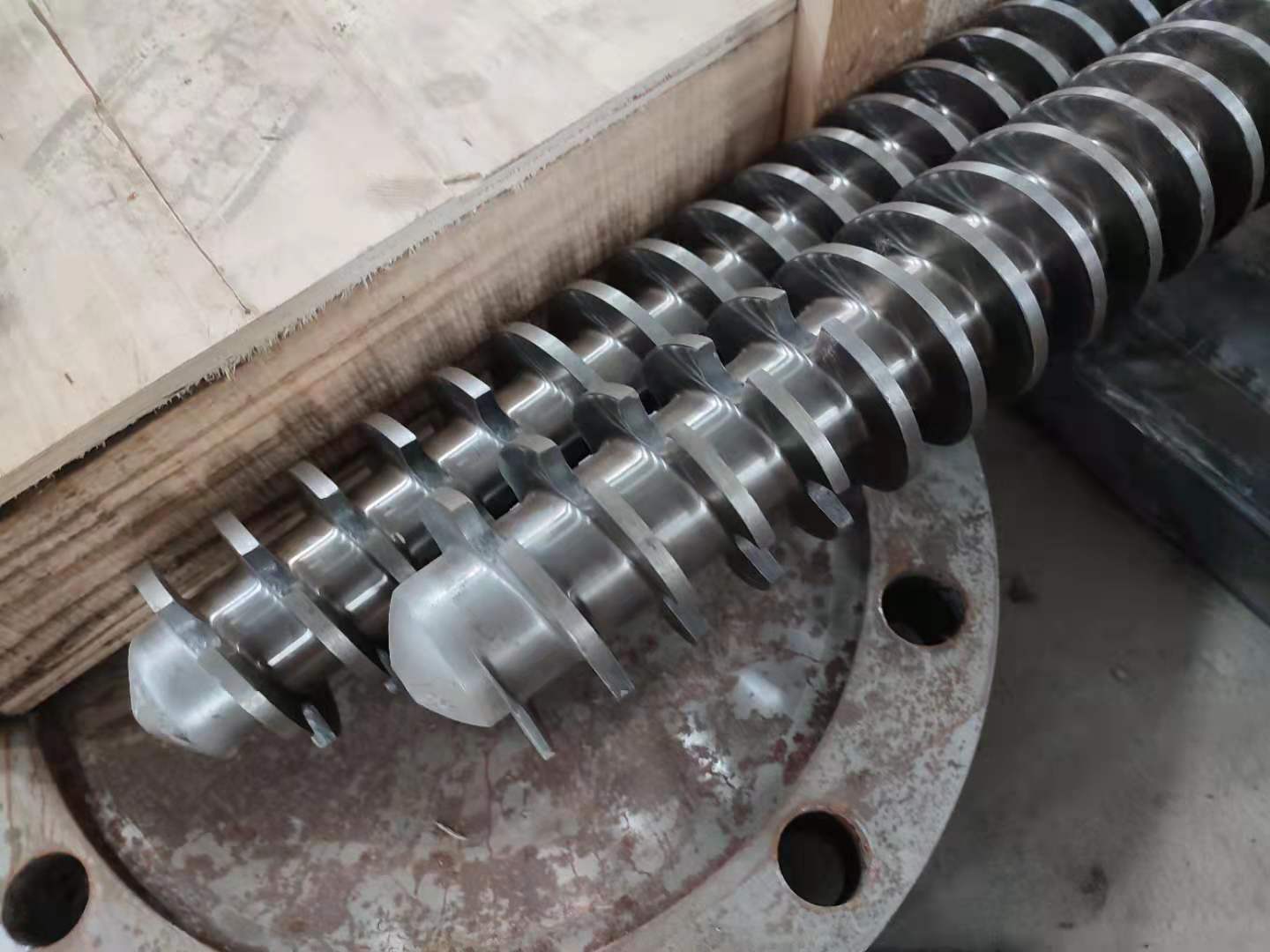

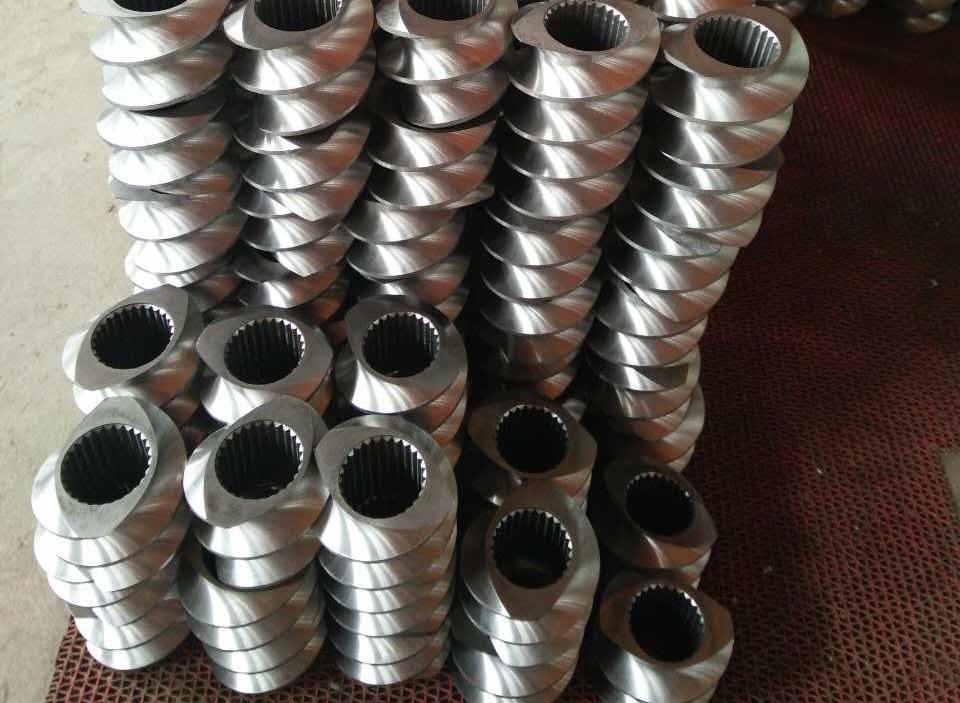

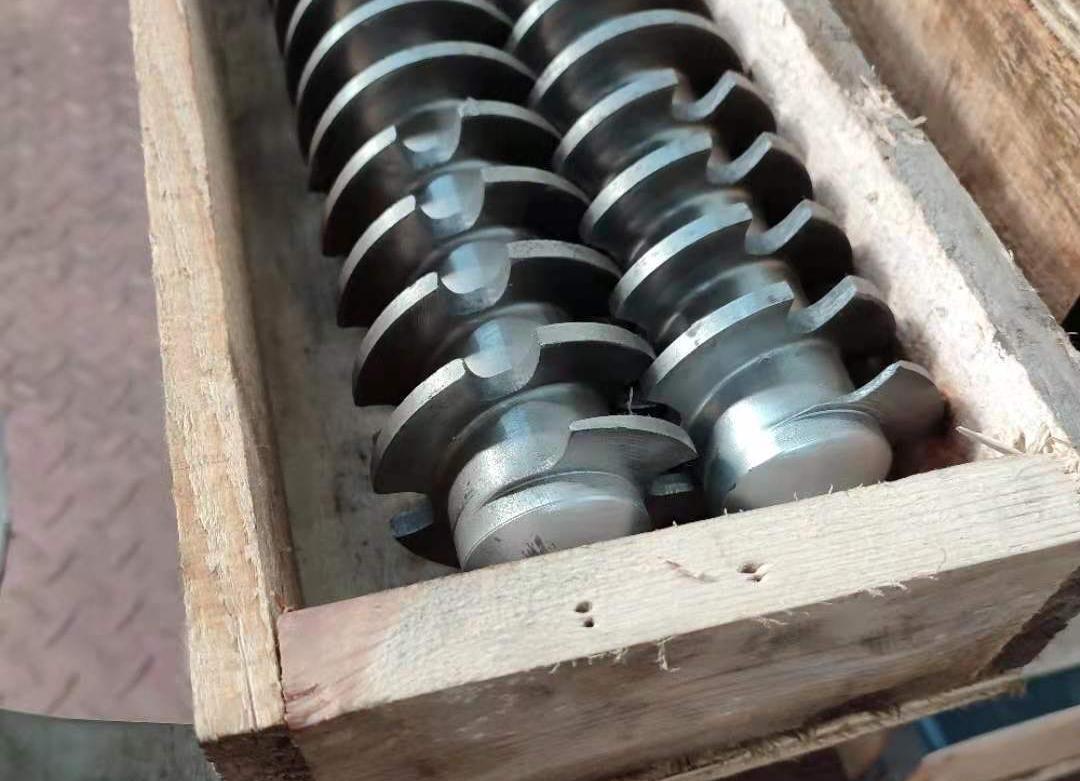

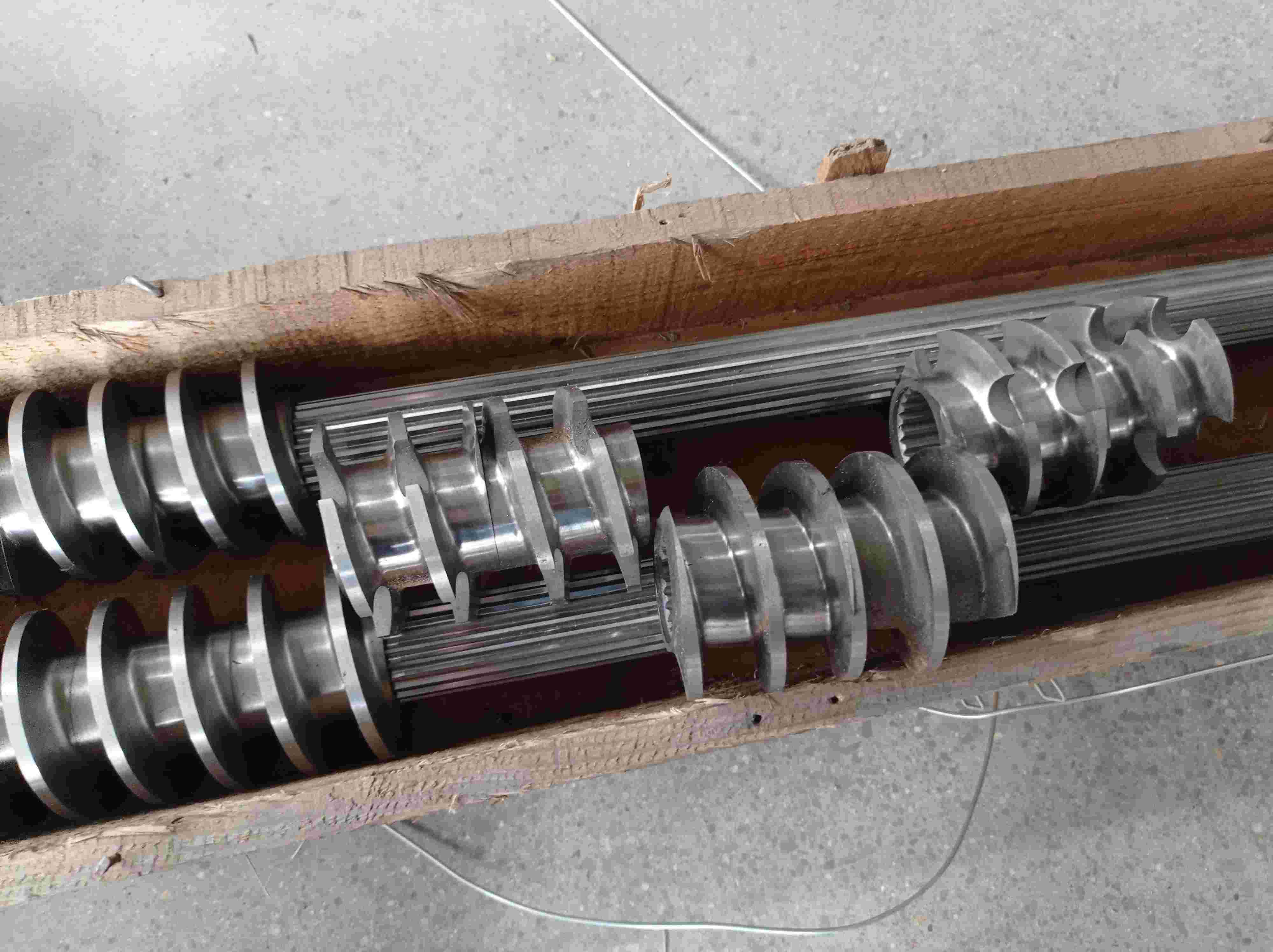

2.The screw material is high-speed alloy steel, carburized, with hardness up to HRC 55-65, high wear resistance, high hardness, good toughness, optional 38CrMoAl, 12CrMoV, W6Mo5Cr4V2 material, long service life. Some models are equipped with a combination screw, which has wider applicability of raw materials. The screw combination method can be adjusted according to different products, and one machine can be used for multiple purposes.


Puff Food Making Machine Extruded Puff Food Making Machine Extruded Puff Food Making Machine Extruded Puff Food Making Machine Extruded

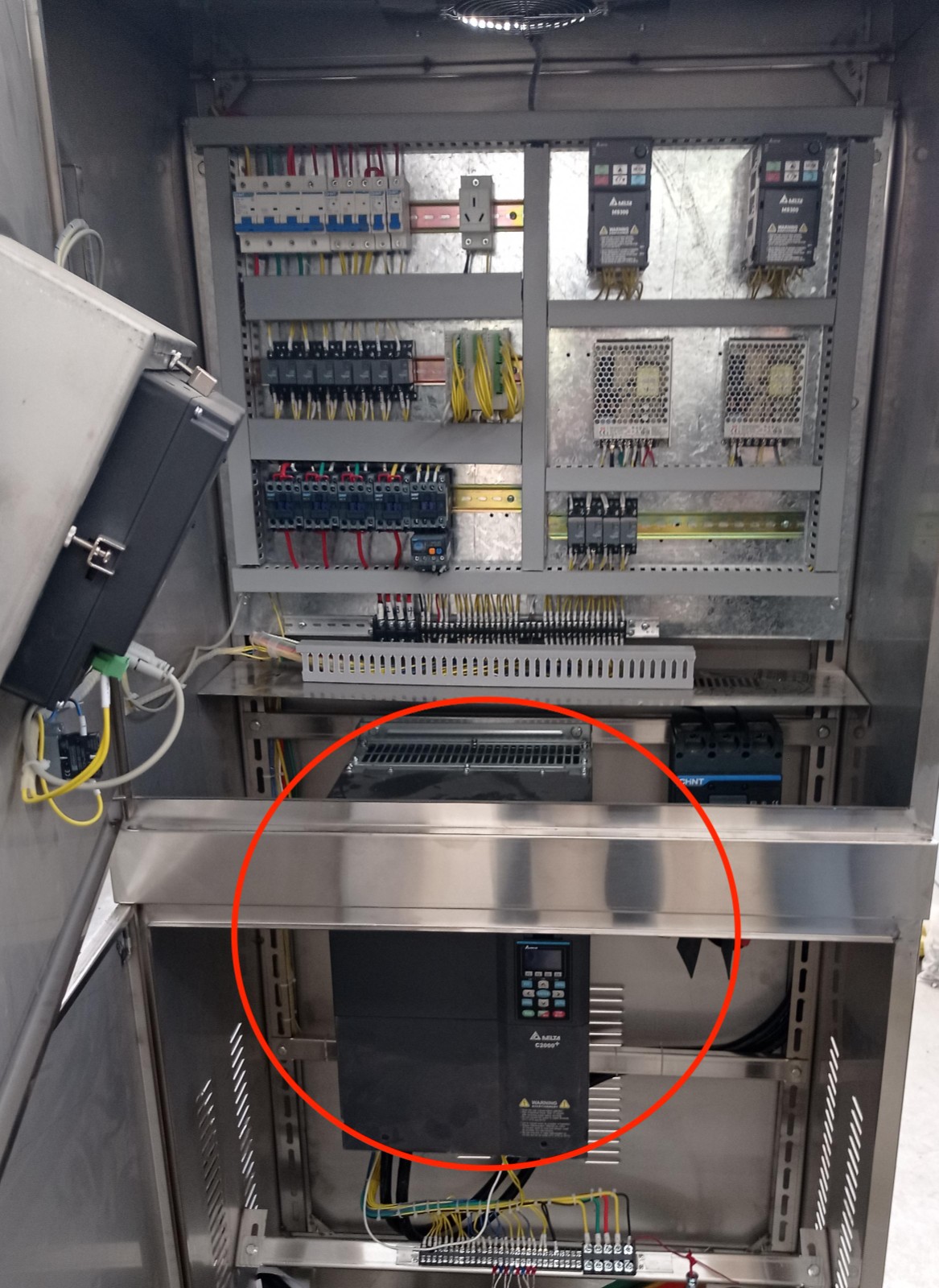

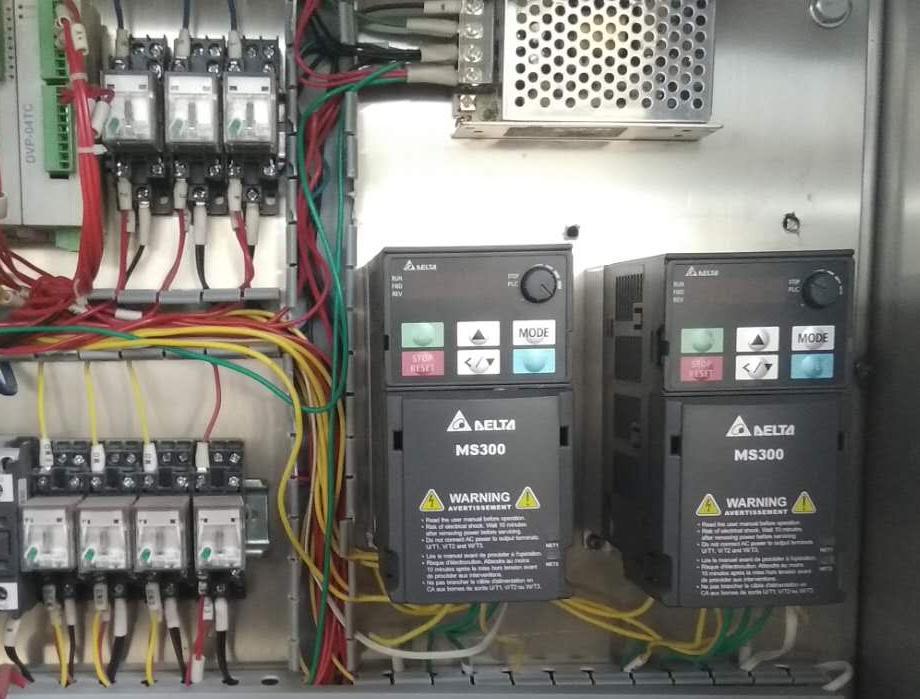

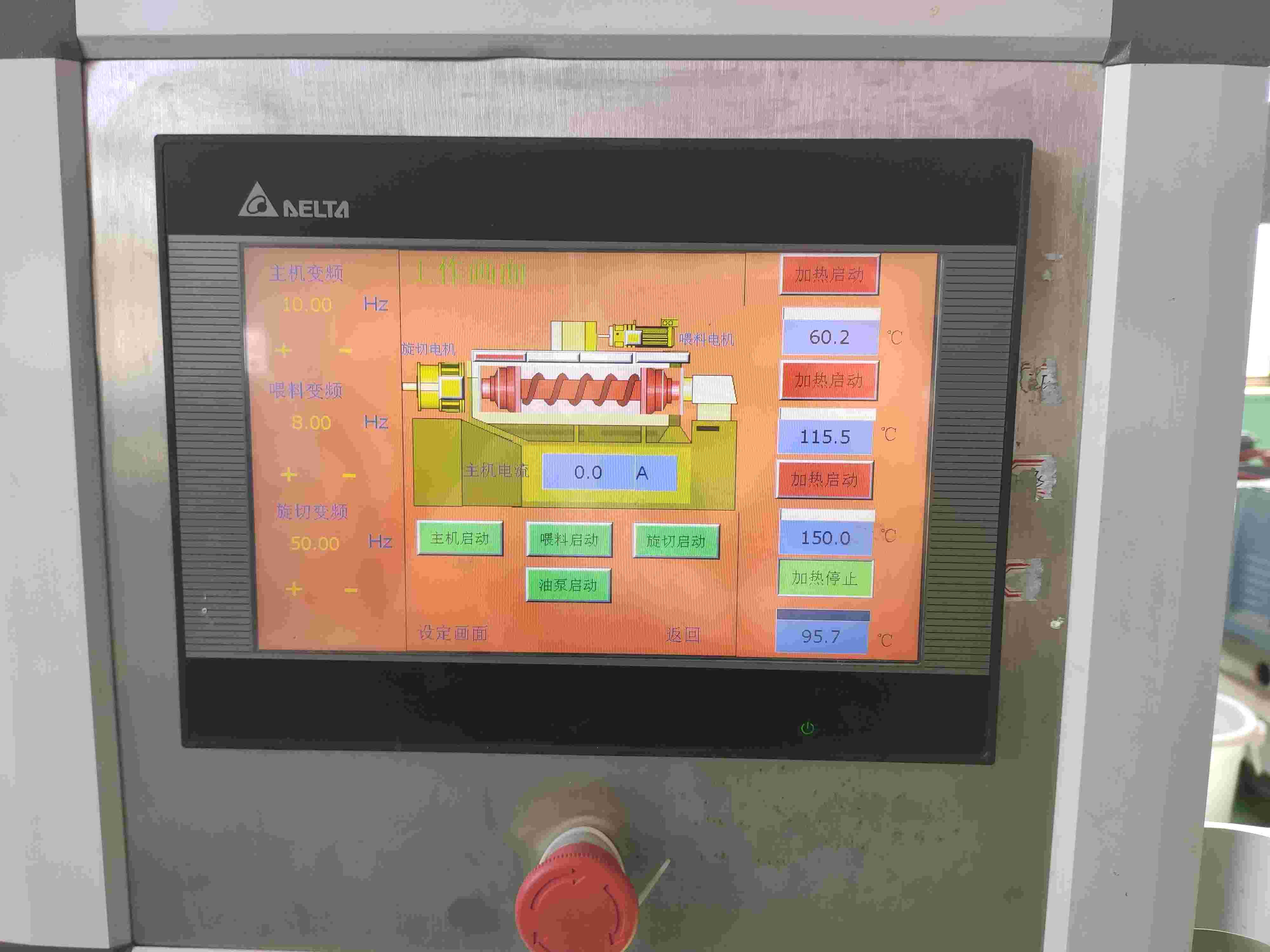

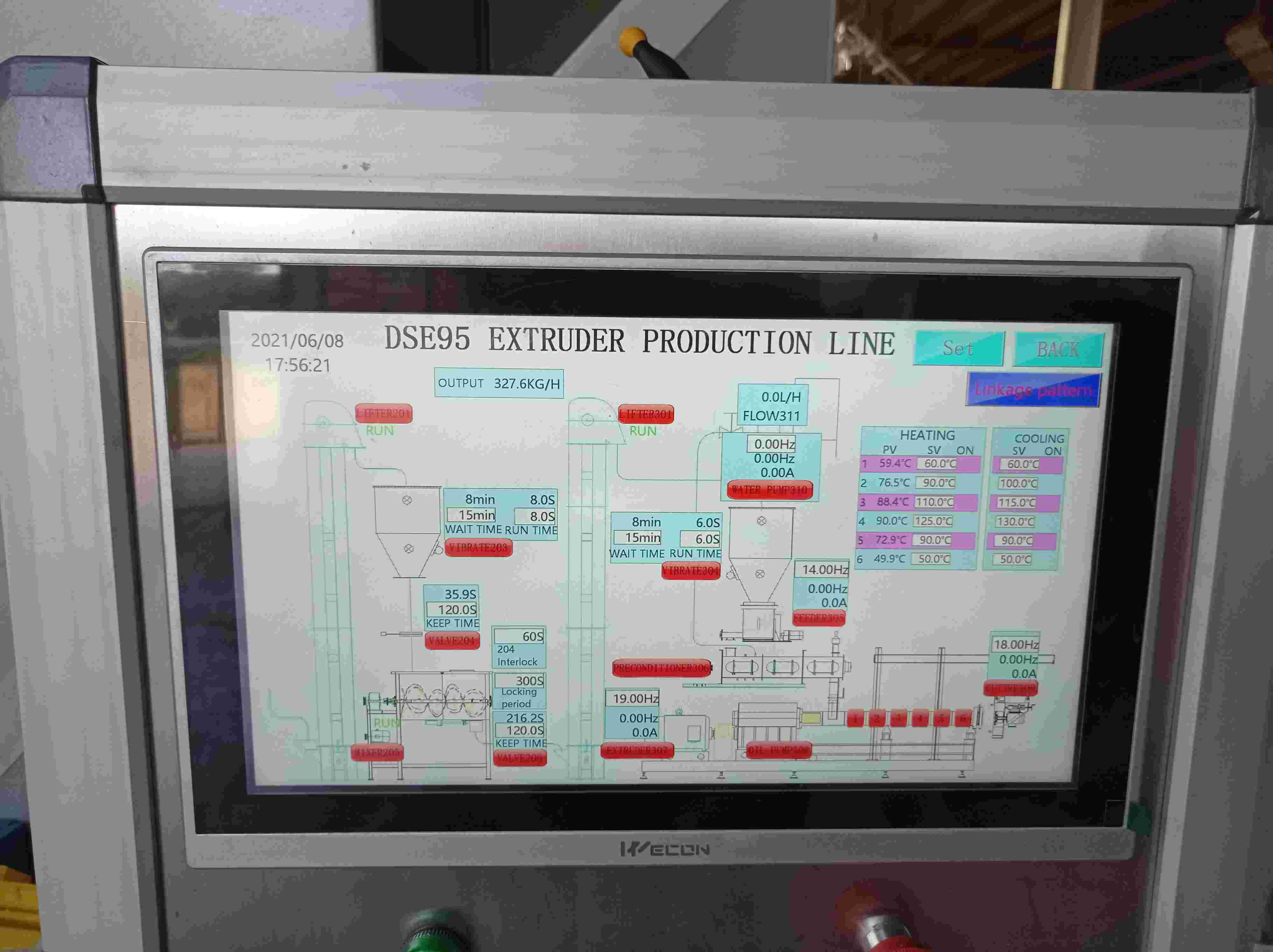

3.The main motor, rotary cutting motor and feeding motor are all controlled by frequency conversion, which can realize soft start and effectively protect the motor, and can adjust the speed according to the product status to produce higher quality products; equipped with PLC touch screen control system, equipment temperature and The speed adjustment is more digital and the control is more precise.


Puff Food Making Machine Extruded Puff Food Making Machine Extruded Puff Food Making Machine Extruded Puff Food Making Machine Extruded

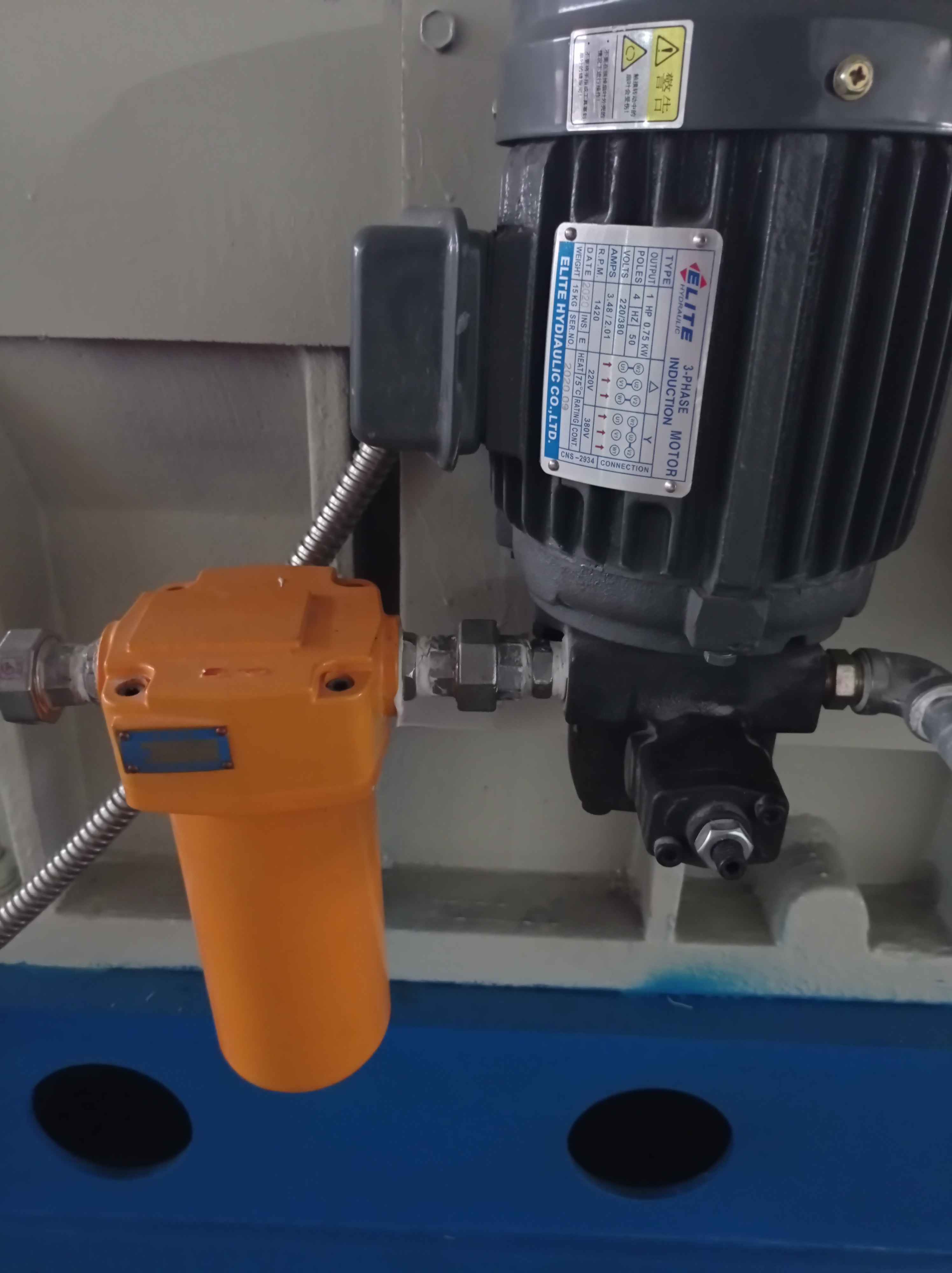

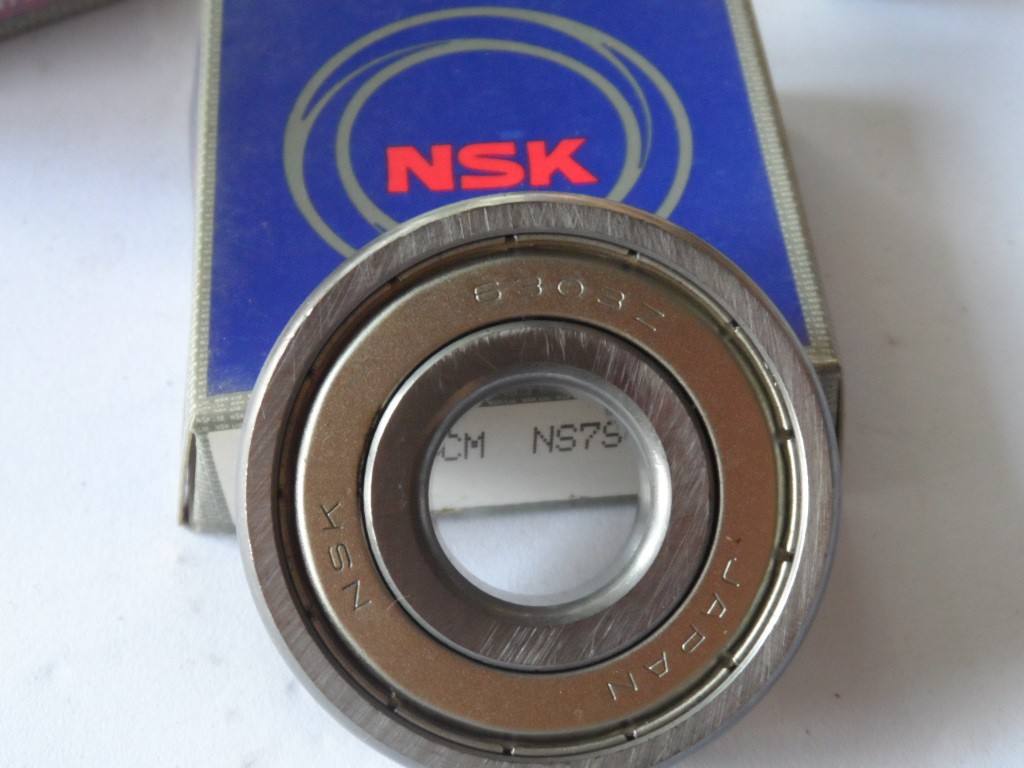

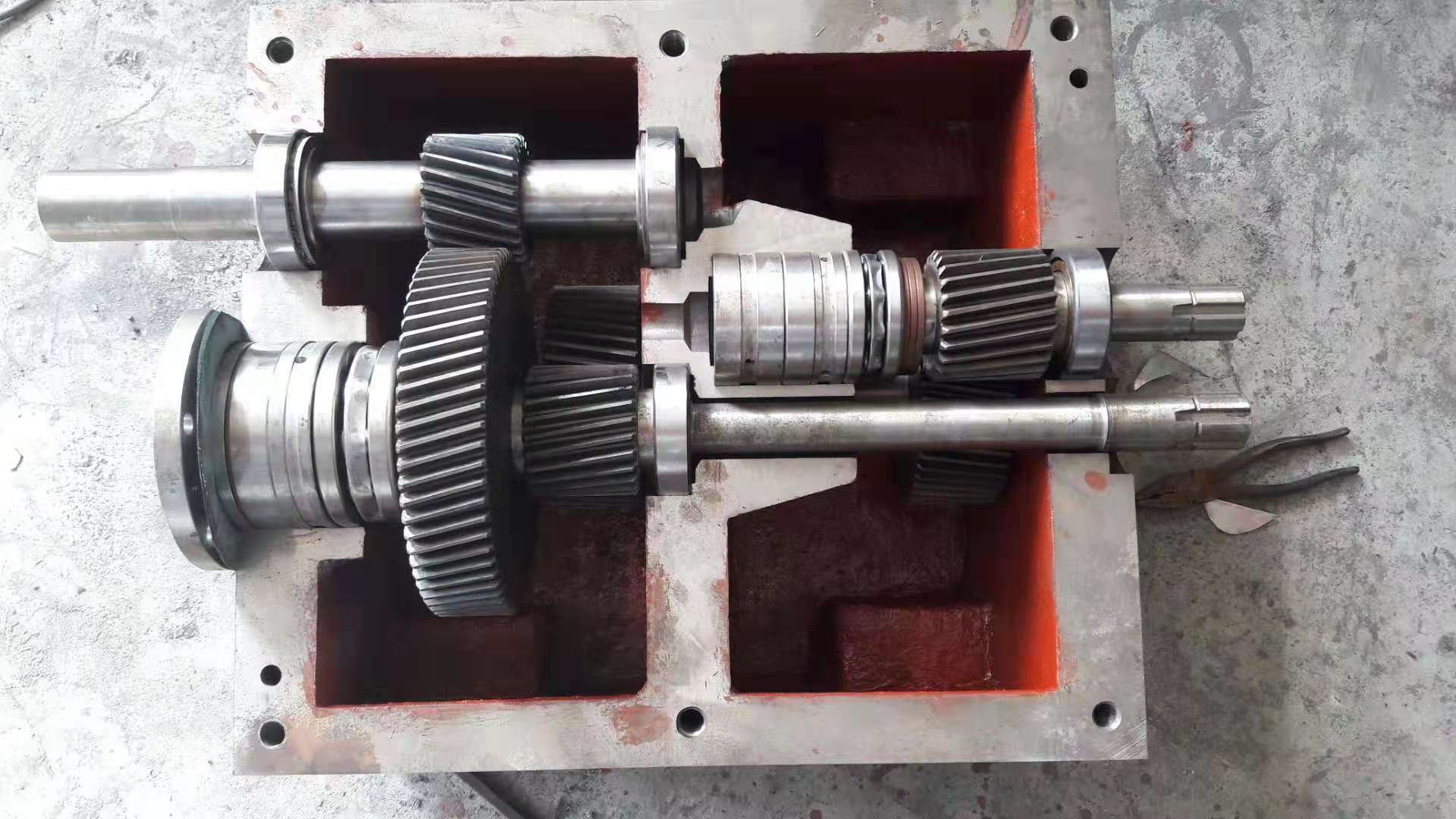

4.Using a new type of box, the box material QT400, good stability. Gear material 20CrNiMoA, carburizing and quenching, hardness HRC58-62, high precision, low noise, long service life; using Japanese NSK, SKF bearings, high precision, long life, stable performance; oil pump motor, forced internal circulation lubrication; condenser, lower The surface temperature of gears and bearings increases the service life; the filter cleans the impurities in the oil, improves the lubrication effect and prolongs the service life.


Puff Food Making Machine Extruded Puff Food Making Machine Extruded Puff Food Making Machine Extruded Puff Food Making Machine Extruded

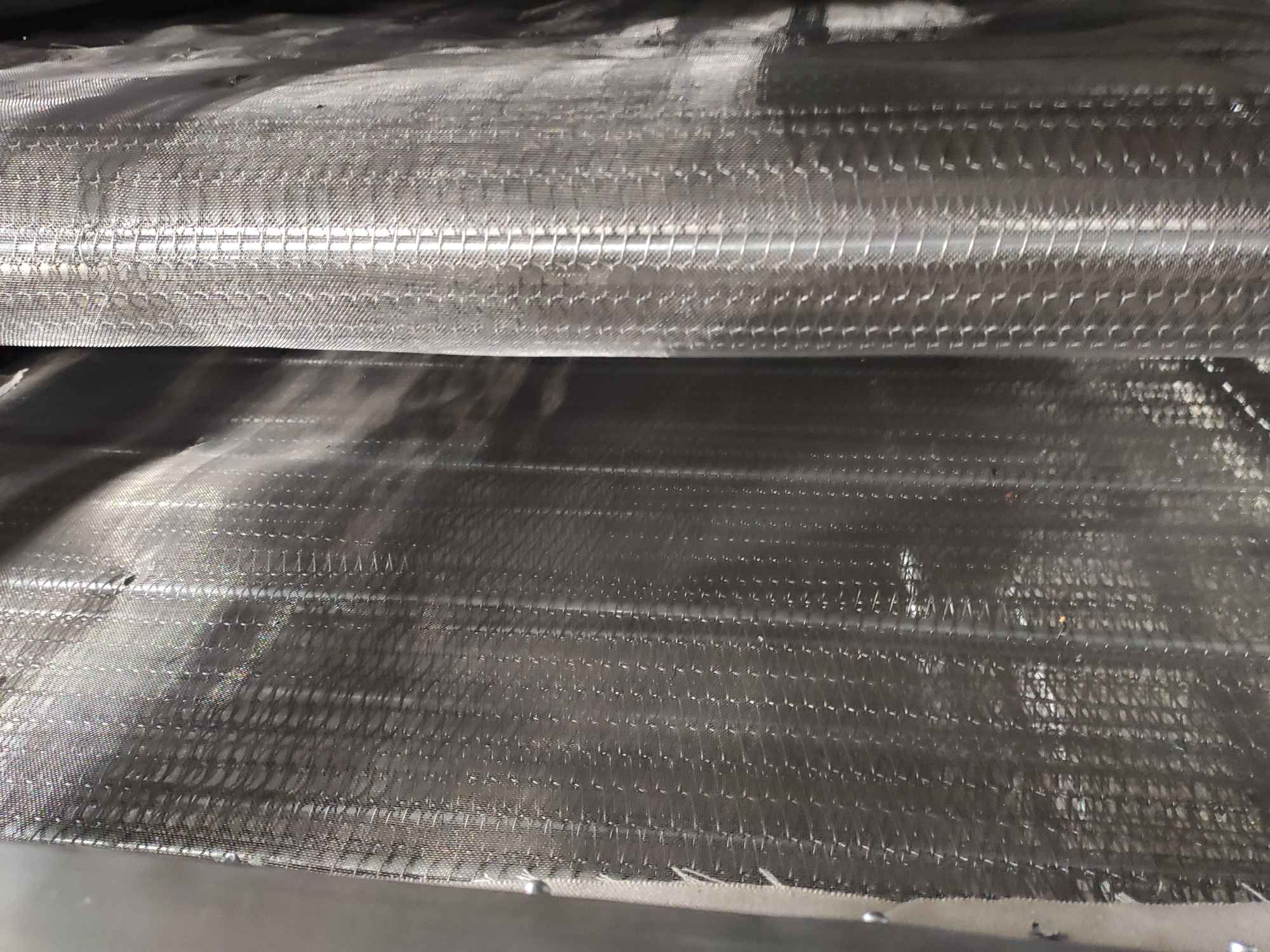

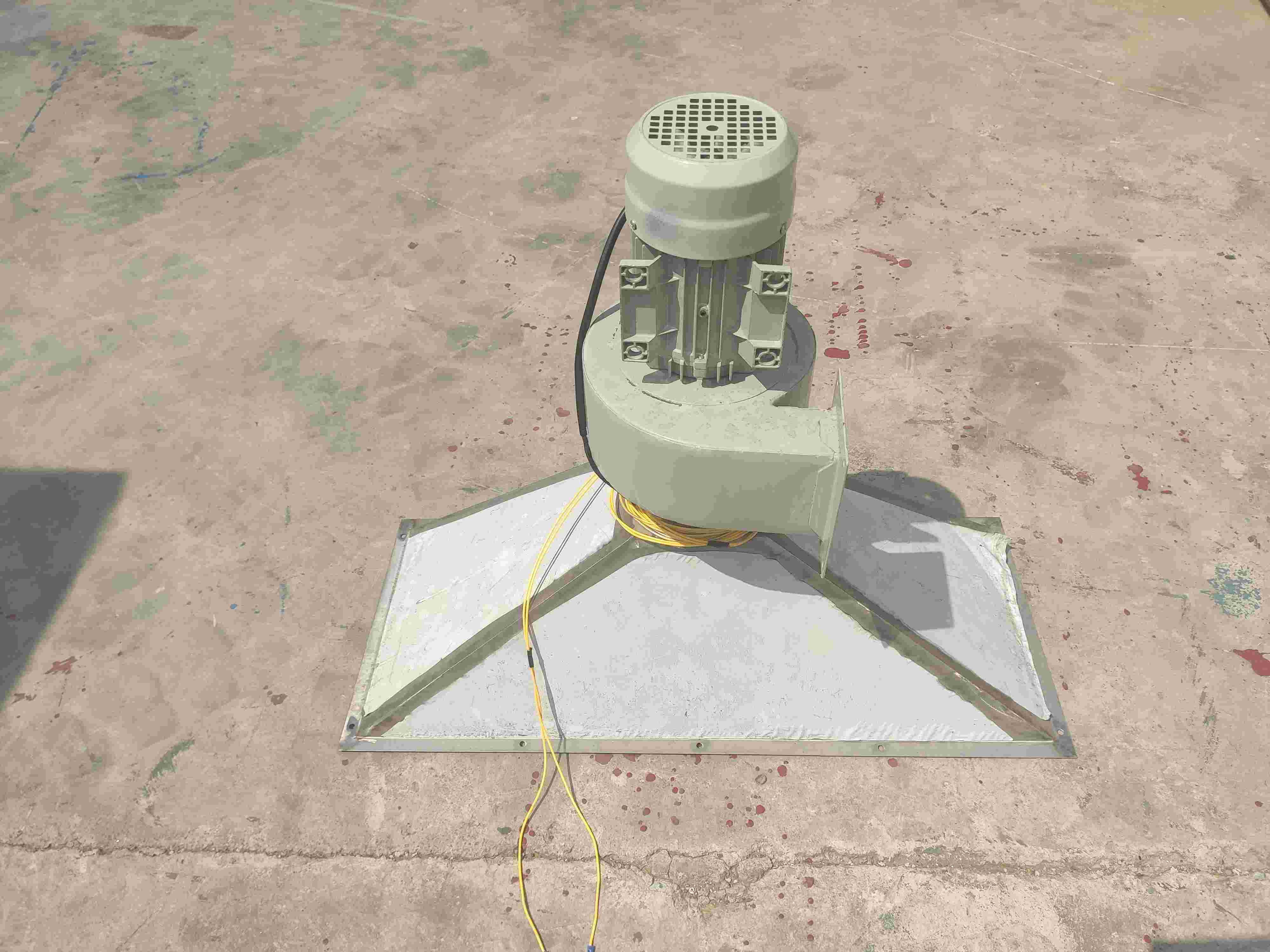

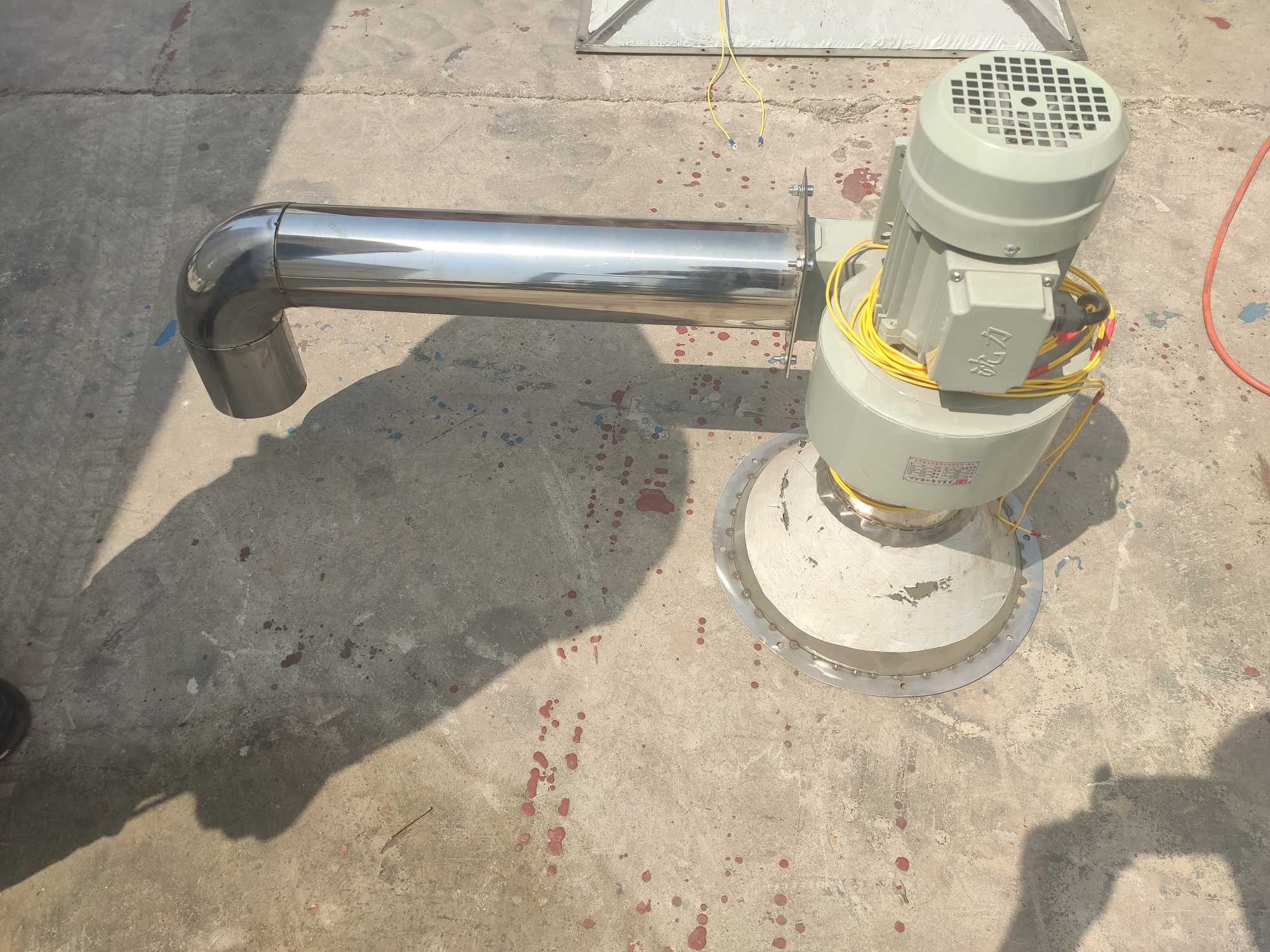

5.According to the actual situation, different energy sources, electricity, fuel oil, gas, steam can be used to save production costs; equipped with circulating fans and dehumidification fans to promote heat circulation, remove water vapor, and improve drying efficiency; 304 stainless steel mesh cloth and mesh are used. belt to ensure product quality; adjustable running speed, adjust drying time according to different products, high efficiency.


Puff Food Making Machine Extruded Puff Food Making Machine Extruded Puff Food Making Machine Extruded Puff Food Making Machine Extruded
