Corn Snack Food Machine

puff corn snack production line puffed core filling food extruder machine adopt corn, rice, wheat, oat, barley etc as ingredients to make puffed snack. Through frication of screw and barrel, the grains are cooked in the extruder. Forming is at the die face cutter. The product shape is determined by a combination of the die aperture, including ball, tube, stick, ring, fruit loop, star, wheel and flower etc.


Lead Time: 15-25 days

Materials: stainless steel 304

Voltage: Customized, 110v-440v,50-60hz.

Core Components Brand: Siemens,Delta, Schneider, Baltur

Shipping: Support to sea freight, land and air freight

Service:

1 One year warranty, lifetime service

2 Local engineer on-site service available within 14 working days


  Contact Now
Product Details

Corn Snack Food Machine


1.Introduction

The Corn Snack Food Machine automated makes powdered uncooked substances such as corn flour into puff snack via the procedure of mixing,puffing,drying,flavoring and cooling. The identical manufacturing Puff Snacks Production Line can produce puff snacks of quite a number shapes and sizes. At the equal time, the identical puff snack can be matched with exclusive laptop manufacturing strains in accordance to one-of-a-kind capacity.


2.Production video

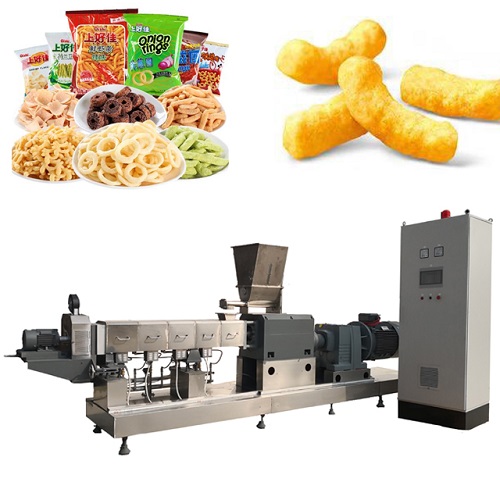

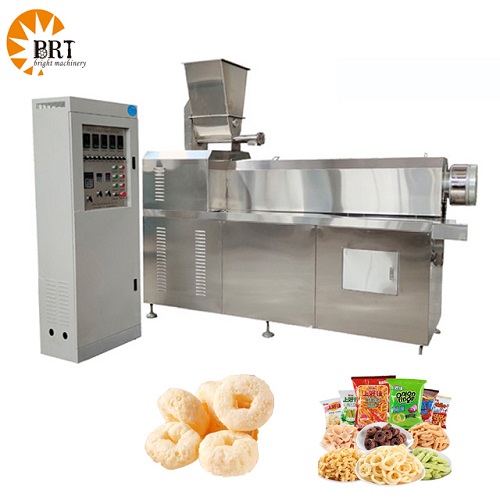

3.Machine display

Corn Snack Food Machine

4.Samples

Corn Snack Food Machine


5.Technical parameter

Model

Capacity/output

Installed Power

Power Consumption

Dimension

DSE65 Puff Snack Production Line

100-150kg/h

120kw

96kw

26*3*2.2m

DSE65F Puff Snack Production Line

100-150kg/h

124kw

100kw

26*3*2.2m

DSE70 Puff Snack Production Line

200-250kg/h

164kw

132kw

28*3*2.2m

DSE70F Puff Snack Production Line

200-250kg/h

130kw

104kw

26*3*2.2m

DSE85 Puff Snack Production Line

300-500kg/h

270kw

216kw

32*3*2.2m

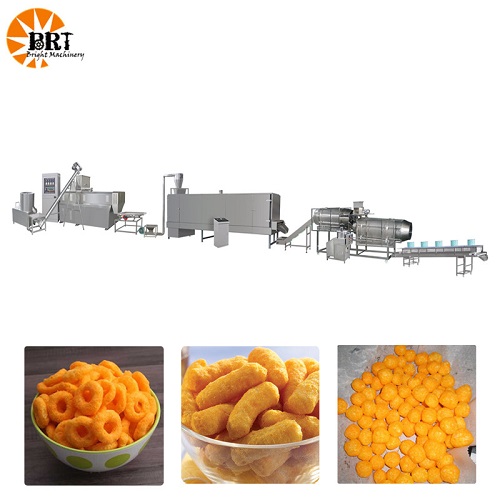

6.Flow chart

Mixer→Screw Conveyor→Extruder→Air Conveyor→Dryer→Hoister→Flavoring System→Cooling Conveyor

Corn Snack Food Machine


7.Product advantages

1.Corn Snack Food Machine,Adopt Siemens fundamental motor, Delta inverter, Schneider Omron ABB electrical components, the world's pinnacle brands, environment friendly and steady operation, dependable quality, durable, international accessories, can be immediately bought locally, correctly decreasing manufacturing cost.

Corn Snack Food Machine Corn Snack Food Machine Corn Snack Food Machine Corn Snack Food Machine


2The Corn Snack Food Machine screw cloth is high-speed alloy steel, carburized, with hardness up to HRC 55-65, excessive put on resistance, excessive hardness, true toughness, elective 38CrMoAl, 12CrMoV, W6Mo5Cr4V2 material, lengthy carrier life. Some fashions are geared up with a aggregate screw, which has wider applicability of uncooked materials. The screw aggregate approach can be adjusted in accordance to one of a kind products, and one laptop can be used for more than one purposes.



Corn Snack Food Machine Corn Snack Food Machine Corn Snack Food Machine Corn Snack Food Machine


3.The Corn Snack Food Machine primary motor, rotary slicing motor and feeding motor are all managed via frequency conversion, which can realise tender begin and efficaciously shield the motor, and can regulate the velocity in accordance to the product reputation to produce greater pleasant products; outfitted with PLC contact display screen manage system, gear temperature and The pace adjustment is greater digital and the manipulate is greater precise.


Corn Snack Food Machine Corn Snack Food Machine Corn Snack Food Machine Corn Snack Food Machine


4.Corn Snack Food Machine Using a new kind of box, the container fabric QT400, suitable stability. Gear fabric 20CrNiMoA, carburizing and quenching, hardness HRC58-62, excessive precision, low noise, lengthy provider life; the use of Japanese NSK, SKF bearings, excessive precision, lengthy life, secure performance; oil pump motor, pressured inner circulation lubrication; condenser, decrease The floor temperature of gears and bearings will increase the provider life; the filter cleans the impurities in the oil, improves the lubrication impact and prolongs the carrier life.

Corn Snack Food Machine Corn Snack Food Machine Corn Snack Food Machine Corn Snack Food Machine


5.Corn Snack Food Machine,According to the genuine situation, unique power sources, electricity, gas oil, gas, steam can be used to store manufacturing costs; outfitted with circulating followers and dehumidification followers to promote warmth circulation, take away water vapor, and enhance drying efficiency; 304 stainless metal mesh fabric and mesh are used. belt to make sure product quality; adjustable walking speed, regulate drying time in accordance to distinctive products, excessive efficiency.



Corn Snack Food Machine Corn Snack Food Machine Corn Snack Food Machine Corn Snack Food Machine
