Lead Time: 15-25 days
Materials: stainless steel 304
Voltage: Customized, 110v-440v,50-60hz.
Core Components Brand:Siemens,Delta, Schneider, Baltur
Shipping: Support to sea freight, land and air freight
Service:
1 One year warranty, lifetime service
2 Local engineer on-site service available within 14 working days

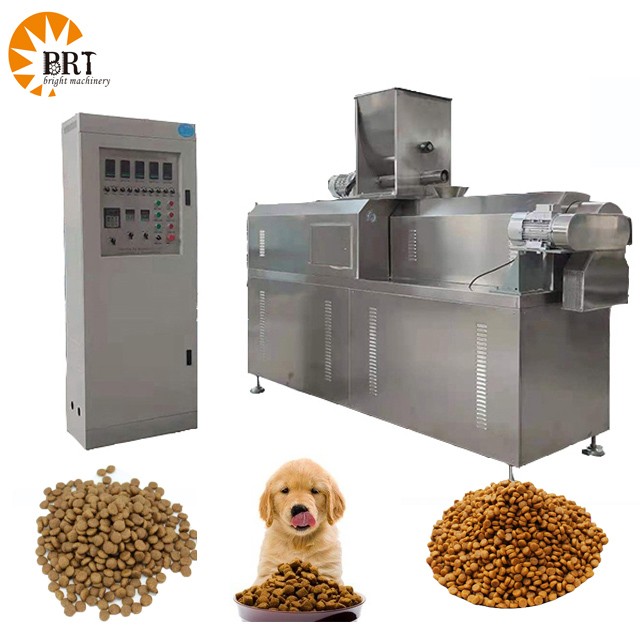

Pet Dog Food Extruder Machine
1 Introduction
The automated dog meals production line makes powdered raw materials such as corn flour into dog meals thru the manner of mixing,extruding,drying,flavoring and cooling. the equal manufacturing line can produce dog food of various shapes and sizes. at the identical time, the equal canine food may be matched with specific device production strains consistent with unique potential.
2 Product Video
3 Machine Display
4 Samples
5 Technical Parameter
Model | Install power(kw) | Actuall consumption(kw) | Capacity | Size(mm) |
DSE-65 production line | 80 | 56-64 | 100-150 kg/h | 21000*1500*3000 |
DSE-70 production line | 116 | 82-93 | 200-250 kg/h | 21000*1500*3000 |
DSE-75 production line | 154 | 108-123 | 300-350 kg/h | 25000*1500*3200 |
DSE-85 production line | 194 | 137-156 | 400-500 kg/h | 25000*1500*3200 |
DSE-85S production line | 121(Steam dryer) | 85-97 | 600-800 kg/h | 28000*1500*3500 |
DSE-95S production line | 165(Steam dryer) | 115-132 | 1000-1800 kg/h | 28000*1500*3500 |
DSE-95S-2 production line | 295(Steam dryer) | 206-236 | 2000-3000 kg/h | 25000*20000*6000 |
DSE-95S-3 production line | 375(Steam dryer) | 263-300 | 3000-4000 kg/h | 25000*20000*13000 |
DSE-95S-4 production line | 496(Steam dryer) | 347-397 | 4000-5000 kg/h | 30000*25000*16000 |
DSE-130S production line | 540(Steam dryer) | 380-432 | 5000-6000 kg/h | 30000*30000*16000 |

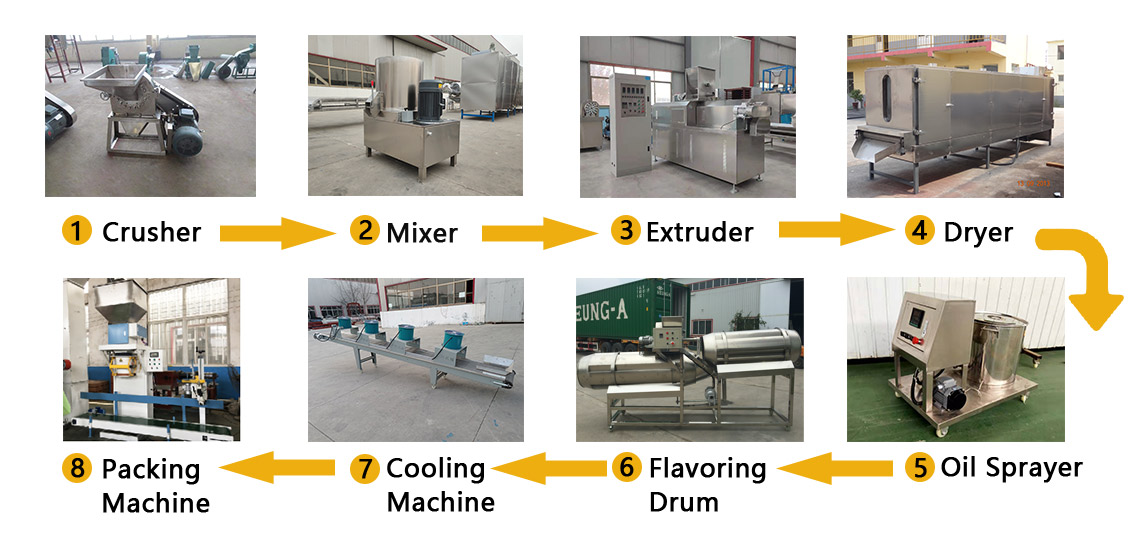

6 Flow Chart
Mixer→Screw Conveyor→Extruder→Air Conveyor→Dryer→Hoister→Flavoring System→Cooling Conveyor
7 Product Advantage
1.The main brand of different part is Siemens motor, delta inverter, Schneider or Omron electrical parts so on. Reliable performance, safety and durability, long service life, easy to replace, greatly reduce the use of the cost.
2.The screw material is high-speed alloy steel, carburized, with hardness up to HRC 55-65, high wear resistance, high hardness, good toughness, optional 38CrMoAl, 12CrMoV, W6Mo5Cr4V2 material, long service life. Some models are equipped with a combination screw, which has wider applicability of raw materials. The screw combination method can be adjusted according to different products, and one machine can be used for multiple purposes.
3.The main motor, rotary cutting motor and feeding motor are all controlled by frequency conversion, which can realize soft start and effectively protect the motor, and can adjust the speed according to the product status to produce higher quality products; equipped with PLC touch screen control system, equipment temperature and The speed adjustment is more digital and the control is more precise.
4.Using a new type of box, the box material QT400, good stability. Gear material 20CrNiMoA, carburizing and quenching, hardness HRC58-62, high precision, low noise, long service life; using Japanese NSK, SKF bearings, high precision, long life, stable performance; oil pump motor, forced internal circulation lubrication; condenser, lower The surface temperature of gears and bearings increases the service life; the filter cleans the impurities in the oil, improves the lubrication effect and prolongs the service life.

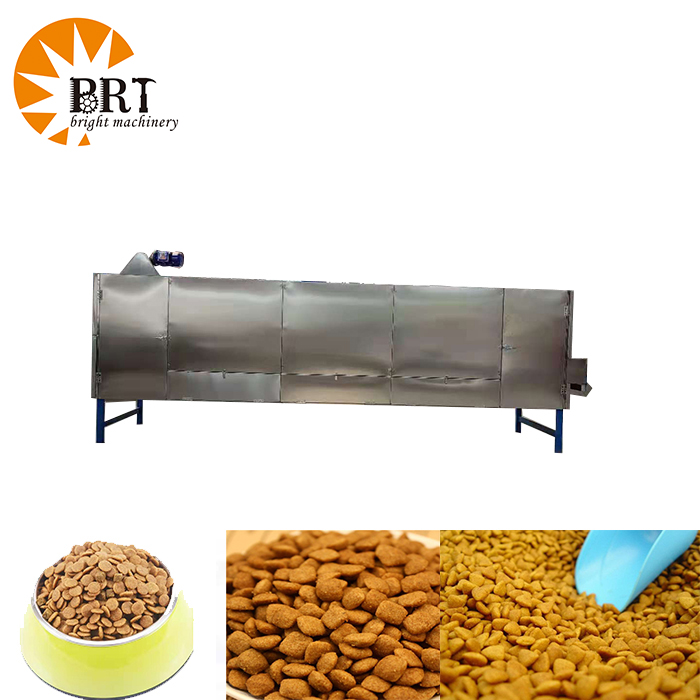

5.According to the actual situation, different energy sources, electricity, fuel oil, gas, steam can be used to save production costs; equipped with circulating fans and dehumidification fans to promote heat circulation, remove water vapor, and improve drying efficiency; 304 stainless steel mesh cloth and mesh are used. belt to ensure product quality; adjustable running speed, adjust drying time according to different products, high efficiency.
