Pet Cat Food Machine

Lead Time: 15-25 days

Materials: stainless steel 304

Voltage: Customized, 110v-440v,50-60hz.

Core Components Brand:Siemens,Delta, Schneider, Baltur

Shipping: Support to sea freight, land and air freight

Service:

1 One year warranty, lifetime service

2 Local engineer on-site service available within 14 working days


  Contact Now
Product Details

Pet Cat Food Machine


1 Introduction

Dog food is specially provided for pets, small animals feed, between human food and traditional livestock and poultry feed animal food, mainly for all kinds of pets to provide basic life assurance, growth and health required nutrients. It has the advantages of comprehensive nutrition, high digestion and absorption rate, scientific formula, quality standard, convenient feeding and use, and can prevent some diseases This making line can produce pet foods of various styles and sizes. This fully automatic dog food making machine uses grain or powder as the raw material ,includes mixing,extruding,drying,flavoring and cooling parts.

2 Production Video


3 Machine Display

Pet Cat Food Machine

4 Samples

Pet Cat Food MachinePet Cat Food Machine Pet Cat Food MachinePet Cat Food Machine


Pet Cat Food MachinePet Cat Food Machine Pet Cat Food MachinePet Cat Food Machine


5 Technical Parameter

Model

Install power(kw)

Actuall consumption(kw)

Capacity

Size(mm)

DSE-65 production line

80

56-64

100-150 kg/h

21000*1500*3000

DSE-70 production line

116

82-93

200-250 kg/h

21000*1500*3000

DSE-75 production line

154

108-123

300-350 kg/h

25000*1500*3200

DSE-85 production line

194

137-156

400-500 kg/h

25000*1500*3200

DSE-85S production line

121(Steam dryer)

85-97

600-800 kg/h

28000*1500*3500

DSE-95S production line

165(Steam dryer)

115-132

1000-1800 kg/h

28000*1500*3500

DSE-95S-2 production line

295(Steam dryer)

206-236

2000-3000 Kg/h

25000*20000*6000

DSE-95S-3 production line

375(Steam dryer)

263-300

3000-4000 Kg/h

25000*20000*13000

DSE-95S-4 production line

496(Steam dryer)

347-397

4000-5000 Kg/h

30000*25000*16000

DSE-130S production line

540(Steam dryer)

380-432

5000-6000 Kg/h

30000*30000*16000

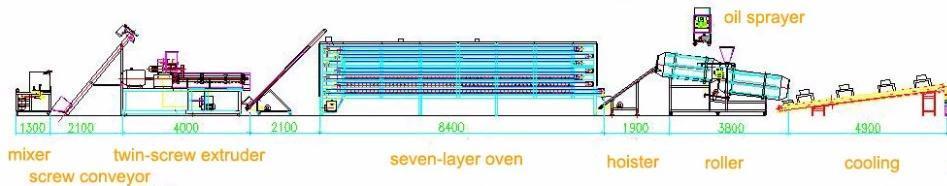

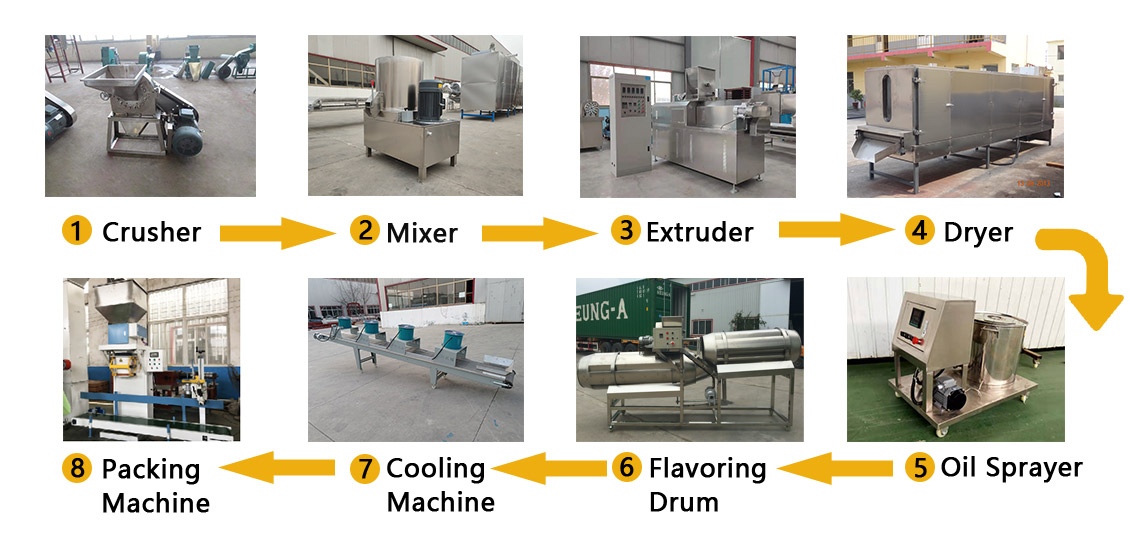

6 Flow Chart

Mixer→Screw Conveyor→Extruder→Air Conveyor→Dryer→Hoister→Flavoring SystemCooling Conveyor




Pet Cat Food Machine


7 Product Advantage

1.The main brand for machine is siemens motor, delta inverter, schneider or omron electrical parts so on.  dependable overall performance, protection and durability, lengthy carrier life, clean to update, substantially lessen the usage of the price.


Pet Cat Food Machine Pet Cat Food Machine Pet Cat Food Machine Pet Cat Food Machine


2.The screw fabric is high-speed alloy steel, carburized, with hardness as much as hrc fifty five-sixty five, excessive wear resistance, excessive hardness, accurate toughness, non-obligatory 38crmoal, 12crmov, w6mo5cr4v2 material, lengthy carrier lifestyles. some fashions are equipped with a aggregate screw, which has wider applicability of uncooked substances. the screw aggregate approach may be adjusted in keeping with distinctive merchandise, and one system may be used for more than one functions.


Pet Cat Food Machine Pet Cat Food Machine Pet Cat Food Machine Pet Cat Food Machine


3.The principle motor, rotary cutting motor and feeding motor are all managed by frequency conversion, that can recognise smooth begin and successfully guard the motor, and might alter the velocity in keeping with the product repute to provide higher high-quality products; ready with p.c contact display screen control system, system temperature and the speed adjustment is greater digital and the manipulate is extra precise.


Pet Cat Food Machine Pet Cat Food Machine Pet Cat Food Machine Pet Cat Food Machine


4.The use of a new kind of box, the container fabric qt400, true balance. gear material 20crnimoa, carburizing and quenching, hardness hrc58-62, excessive precision, low noise, long carrier existence; the use of jap nsk, skf bearings, high precision, long existence, stable performance; oil pump motor, compelled inner circulate lubrication; condenser, decrease the floor temperature of gears and bearings increases the service lifestyles; the filter out cleans the impurities inside the oil, improves the lubrication impact and prolongs the provider existence.


Pet Cat Food Machine Pet Cat Food Machine Pet Cat Food Machine Pet Cat Food Machine


5.Consistent with the actual scenario, distinct power assets, electricity, gasoline oil, gasoline, steam can be used to keep production prices; geared up with circulating lovers and dehumidification fanatics to sell warmth movement, remove water vapor, and enhance drying performance; 304 stainless steel mesh fabric and mesh are used. belt to ensure product first-class; adjustable jogging speed, alter drying time in line with special products, excessive performance.


Pet Cat Food Machine Pet Cat Food Machine Pet Cat Food Machine Pet Cat Food Machine
