Dog Food Making Machine Production Line

Dog Food Making Machine Production Line.As a food processing technology, puffing technological know-how used to be began in 1910. Its software in pet meals was once in the United States in the 1950s. The United States started out to use the extrusion precept to produce pet food, that is, the screw and screw sleeve in the puffer had been used to extrude uncooked substances to make them heat and pressurized, and the meals with excessive temperature and stress used to be extruded out of the mould to realise speedy quantity enlargement due to unexpected decompression.


Lead Time: 15-25 days

Materials: stainless steel 304

Voltage: Customized, 110v-440v,50-60hz.

Core Components Brand:Siemens,Delta, Schneider, Baltur

Shipping: Support to sea freight, land and air freight

Service:

1 One year warranty, lifetime service

2 Local engineer on-site service available within 14 working days


  Contact Now
Product Details

Dog Food Making Machine Production Line


1 Introduction

The computerized Dog Food Making Machine Production Line makes powdered uncooked supplies which consists of corn flour into canine meals with the aid of the approach of blending,extruding,drying,flavoring and cooling. the equal manufacturing line can produce canines foods of a variety of sizes and styles. on the equal time, the equal canine ingredients might also be matched with awesome gadget manufacturing strains in accordance to one-of-a-kind potential.

2 Production Vide

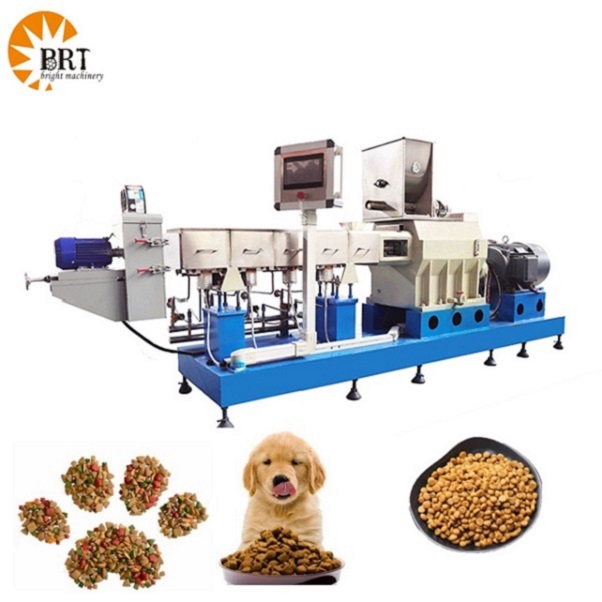

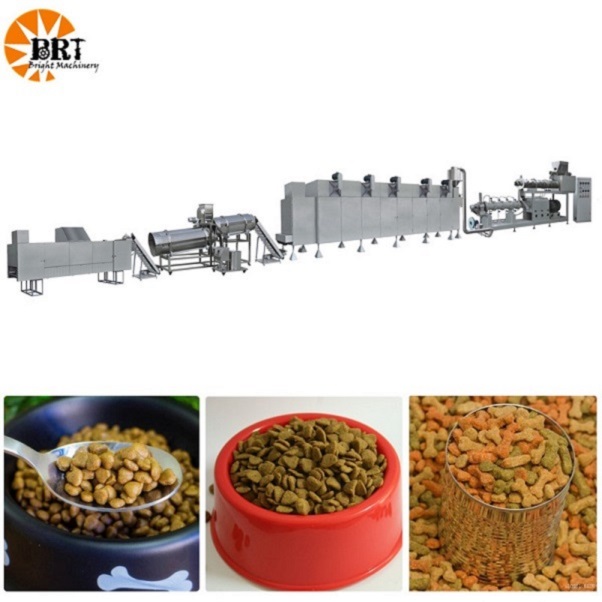

3 Machine Display

Dog Food Making Machine Production Line

4 Samples

Dog Food Making Machine Production Line


5 Technical Parameter

Model

Install power(kw)

Actuall consumption(kw)

Capacity

Size(mm)

DSE-65 production line

80

56-64

100-150 kg/h

21000*1500*3000

DSE-70 production line

116

82-93

200-250 kg/h

21000*1500*3000

DSE-75 production line

154

108-123

300-350 kg/h

25000*1500*3200

DSE-85 production line

194

137-156

400-500 kg/h

25000*1500*3200

DSE-85S production line

121(Steam dryer)

85-97

600-800 kg/h

28000*1500*3500

DSE-95S production line

165(Steam dryer)

115-132

1000-1800 kg/h

28000*1500*3500

DSE-95S-2 production line

295(Steam dryer)

206-236

2000-3000 Kg/h

25000*20000*6000

DSE-95S-3 production line

375(Steam dryer)

263-300

3000-4000 Kg/h

25000*20000*13000

DSE-95S-4 production line

496(Steam dryer)

347-397

4000-5000 Kg/h

30000*25000*16000

DSE-130S production line

540(Steam dryer)

380-432

5000-6000 Kg/h

30000*30000*16000

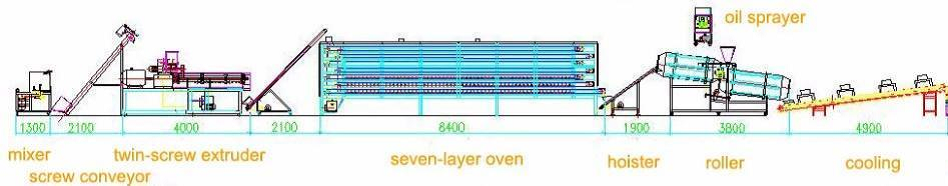

6 Flow Chart

Mixer→Screw Conveyor→Extruder→Air Conveyor→Dryer→Hoister→Flavoring System→Cooling Conveyor




Dog Food Making Machine Production Line


7 Product Advantage

1.Dog Food Making Machine Production Line,The most crucial producer for laptop computer is siemens motor, delta inverter, schneider or omron electrical elements so on. reliable day-to-day performance, safety and durability, prolonged issuer life, reachable to update, appreciably restrict the utilization of the price.


Dog Food Making Machine Production Line Dog Food Making Machine Production Line Dog Food Making Machine Production Line Dog Food Making Machine Production Line


2.Dog Food Making Machine Production Line Machine screw cloth is high-speed alloy steel, carburized, with hardness as hundreds as hrc fifty five-sixty five, immoderate put on resistance, immoderate hardness, proper toughness, non-obligatory 38crmoal, 12crmov, w6mo5cr4v2 material, prolonged provider lifestyles. some fashions are outfitted with a aggregate screw, which has wider applicability of raw substances. the screw mixture method can moreover be adjusted in retaining with one-of-a-kind merchandise, and one computer can moreover be used for increased than one functions.


Dog Food Making Machine Production Line Dog Food Making Machine Production Line Dog Food Making Machine Production Line Dog Food Making Machine Production Line


3.Dog Food Making Machine Production Line,The precept motor, rotary reducing motor and feeding motor are all managed by using potential of the utilization of frequency conversion, that can apprehend handy begin and effectually shield the motor, and would possibly additionally alter the tempo in defending with the product cognizance to furnish expanded wonderful products; prepared with p.c contact showcase exhibit manipulate system, machine temperature and the tempo adjustment is higher digital and the manipulate is large precise.


Dog Food Making Machine Production Line Dog Food Making Machine Production Line Dog Food Making Machine Production Line Dog Food Making Machine Production Line


4.Dog Food Making Machine Production Line use of a new kind of box, the container cloth qt400, actual balance. equipment fabric 20crnimoa, carburizing and quenching, hardness hrc58-62, excessive precision, low noise, prolonged company existence; the use of jap nsk, skf bearings, immoderate precision, prolonged existence, constant performance; oil pump motor, compelled interior drift into lubrication; condenser, limit the floor temperature of gears and bearings will make bigger the issuer lifestyles; the filter out cleans the impurities internal the oil, improves the lubrication have an have an effect on on and prolongs the provider existence.


Dog Food Making Machine Production Line Dog Food Making Machine Production Line Dog Food Making Machine Production Line Dog Food Making Machine Production Line


5.Dog Food Making Machine Production Line,Consistent with the actual scenario, remarkable electricity assets, electricity, gas oil, gasoline, steam can be used to keep manufacturing prices; geared up with circulating followers and dehumidification fanatics to promote warmness movement, dispose of water vapor, and beautify drying performance; 304 stainless metallic mesh fabric and mesh are used. belt to make sure product first-class; adjustable taking walks speed, alter drying time in line with one-of-a-kind products, excessive performance.


Dog Food Making Machine Production Line Dog Food Making Machine Production Line Dog Food Making Machine Production Line Dog Food Making Machine Production Line
