Automatic Pet Feed Machine

Lead Time: 15-25 days

Materials: stainless steel 304

Voltage: Customized, 110v-440v,50-60hz.

Core Components Brand:Siemens,Delta, Schneider, Baltur

Shipping: Support to sea freight, land and air freight

Service:

1 One year warranty, lifetime service

2 Local engineer on-site service available within 14 working days




  Contact Now
Product Details

Automatic Pet Feed Machine


1.Introduction

The Automatic Pet Feed Machine makes powdered uncooked supplies which consists of corn flour into canine meals through the approach of blending,extruding,drying,flavoring and cooling. the Automatic Pet Feed Machine can produce dogs ingredients of a range of sizes and styles. on the equal time, the identical dog meals may be matched with distinct system manufacturing lines according to one-of-a-kind potential.


2.Production video

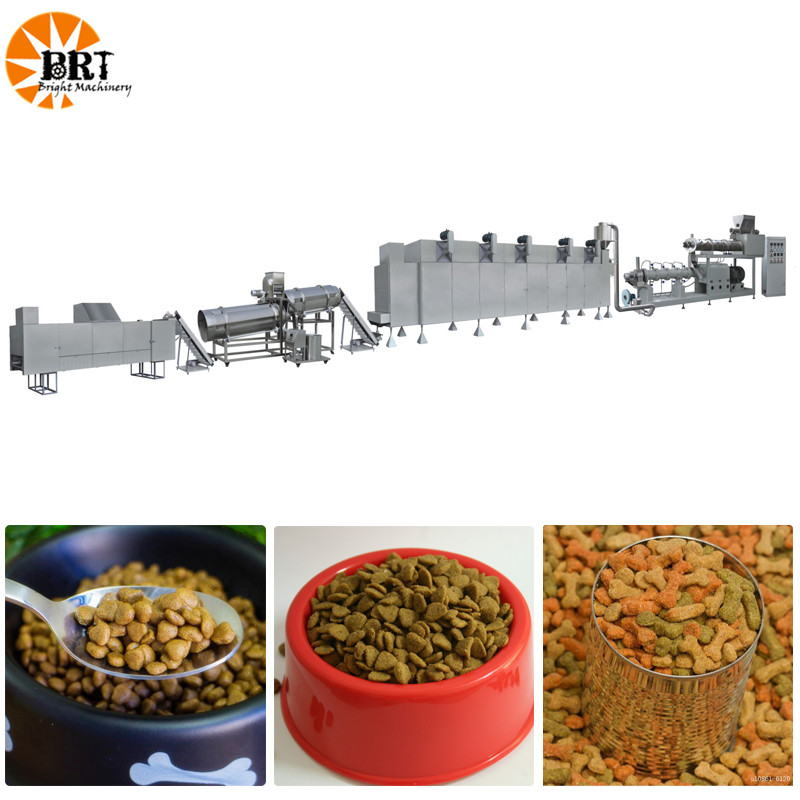

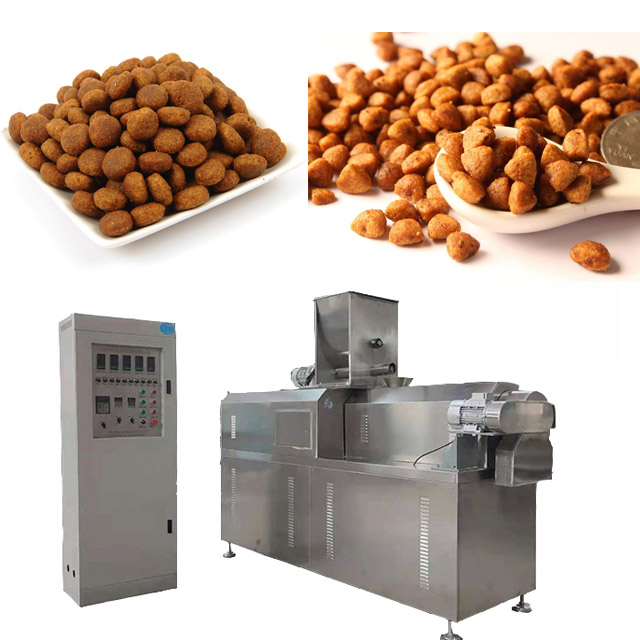

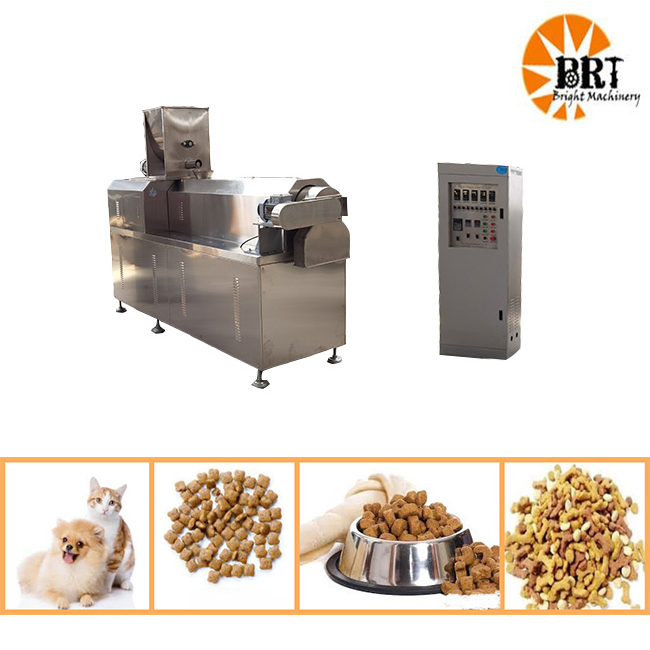

3.Machine display

Automatic Pet Feed Machine


4.Samples

Automatic Pet Feed MachineAutomatic Pet Feed Machine Automatic Pet Feed MachineAutomatic Pet Feed Machine


Automatic Pet Feed MachineAutomatic Pet Feed Machine Automatic Pet Feed MachineAutomatic Pet Feed Machine


5.Technical parameter

Model

Install power(kw)

Actuall consumption(kw)

Capacity

Size(mm)

DSE-65 production line

80

56-64

100-150 kg/h

21000*1500*3000

DSE-70 production line

116

82-93

200-250 kg/h

21000*1500*3000

DSE-75 production line

154

108-123

300-350 kg/h

25000*1500*3200

DSE-85 production line

194

137-156

400-500 kg/h

25000*1500*3200

DSE-85S production line

121(Steam dryer)

85-97

600-800 kg/h

28000*1500*3500

DSE-95S production line

165(Steam dryer)

115-132

1000-1800 kg/h

28000*1500*3500

DSE-95S-2 production line

295(Steam dryer)

206-236

2000-3000 kg/h

25000*20000*6000

DSE-95S-3 production line

375(Steam dryer)

263-300

3000-4000 kg/h

25000*20000*13000

DSE-95S-4 production line

496(Steam dryer)

347-397

4000-5000 kg/h

30000*25000*16000

DSE-130S production line

540(Steam dryer)

380-432

5000-6000 kg/h

30000*30000*16000


6.Flow chart

Mixer→Screw Conveyor→Extruder→Air Conveyor→Dryer→Hoister→Flavoring System→Cooling Conveyor

Automatic Pet Feed Machine


7.Product advantages

1.Automatic Pet Feed Machine Adopt Siemens primary motor, Delta inverter, Schneider Omron ABB electrical components, the world's pinnacle brands, environment friendly and steady operation, dependable quality, durable, world accessories, can be immediately bought locally, successfully decreasing manufacturing cost.



Automatic Pet Feed Machine Automatic Pet Feed Machine Automatic Pet Feed Machine Automatic Pet Feed Machine


2.The screw cloth is high-speed alloy steel, carburized, with hardness up to HRC 55-65, excessive put on resistance, excessive hardness, desirable toughness, non-compulsory 38CrMoAl, 12CrMoV, W6Mo5Cr4V2 material, lengthy carrier life. Some fashions are geared up with a mixture screw, which has wider applicability of uncooked materials. The screw aggregate approach can be adjusted in accordance to one of a kind products, and one computer can be used for a couple of purposes.


Automatic Pet Feed Machine Automatic Pet Feed Machine Automatic Pet Feed Machine Automatic Pet Feed Machine


3.Automatic Pet Feed Machine's important motor, rotary slicing motor and feeding motor are all managed by way of frequency conversion, which can realise gentle begin and efficiently defend the motor, and can regulate the velocity in accordance to the product reputation to produce greater exceptional products; Automatic Pet Feed Machineoutfitted with PLC contact display manage system, tools temperature and The velocity adjustment is extra digital and the manipulate is extra precise.


Automatic Pet Feed Machine Automatic Pet Feed Machine Automatic Pet Feed Machine Automatic Pet Feed Machine


4.Automatic Pet Feed Machine using a new kind of box, the field fabric QT400, appropriate stability. Gear cloth 20CrNiMoA, carburizing and quenching, hardness HRC58-62, excessive precision, low noise, lengthy provider life; Automatic Pet Feed Machine use of Japanese NSK, SKF bearings, excessive precision, lengthy life, secure performance; oil pump motor, pressured inner circulation lubrication; condenser, decrease The floor temperature of gears and bearings will increase the provider life; the filter cleans the impurities in the oil, improves the lubrication impact and prolongs the carrier life.


Automatic Pet Feed Machine Automatic Pet Feed Machine Automatic Pet Feed Machine Automatic Pet Feed Machine


5.According to the genuine situation, different energy sources, electricity, gasoline oil, gas, steam can be used to shop manufacturing costs; Automatic Pet Feed Machine outfitted with circulating followers and dehumidification followers to promote warmness circulation, cast off water vapor, and enhance drying efficiency; 304 stainless metal mesh material and mesh are used. belt to make certain product quality; adjustable strolling speed, regulate drying time in accordance to extraordinary products, excessive efficiency.


Automatic Pet Feed Machine Automatic Pet Feed Machine  Automatic Pet Feed Machine Automatic Pet Feed Machine
