Big Capacity Fish Feed Making Machine

Lead Time: 15-25 days

Materials: stainless steel 304

Voltage: Customized, 110v-440v,50-60hz.

Core Components Brand: Siemens,Delta, Schneider, Baltur

Shipping: Support to sea freight, land and air freight

Service:

1 One year warranty, lifetime service

2 Local engineer on-site service available within 14 working days


  Contact Now
Product Details

Big Capacity Fish Feed Making Machine


1.Introduction

The varieties of fish feed have long past thru a manner from raw to cooked, from shallow processing to deep processing, from the real fish and shrimp beaten proper now to feeding, to the later matured pellet feeding, to the modern-day nutrient ratio medical feeding. the extruded fish feed system and tool manufacturing line specializes in the manufacturing of severa types and specs of extruded aquatic fish feed for small and medium aquaculture farms and person fisheries. the output of our fish feed tool is 100 kg in keeping with hour -10 masses ordinary with hour, divided into exceptional tool configurations. immoderate-protein extruded feed pellets, excessive protein content, fish broaden speedy, take in nicely, and the diploma of feed waste is low, and fish excretion has masses less harm to water best, and can be recycled and used to growth ecological agriculture. it is a powerful tool and approach for sustainable fishery development.


2.Production video

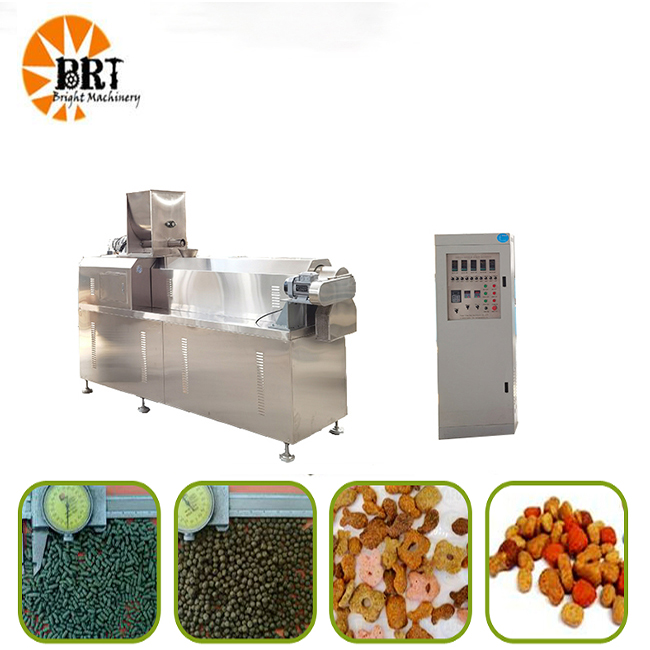

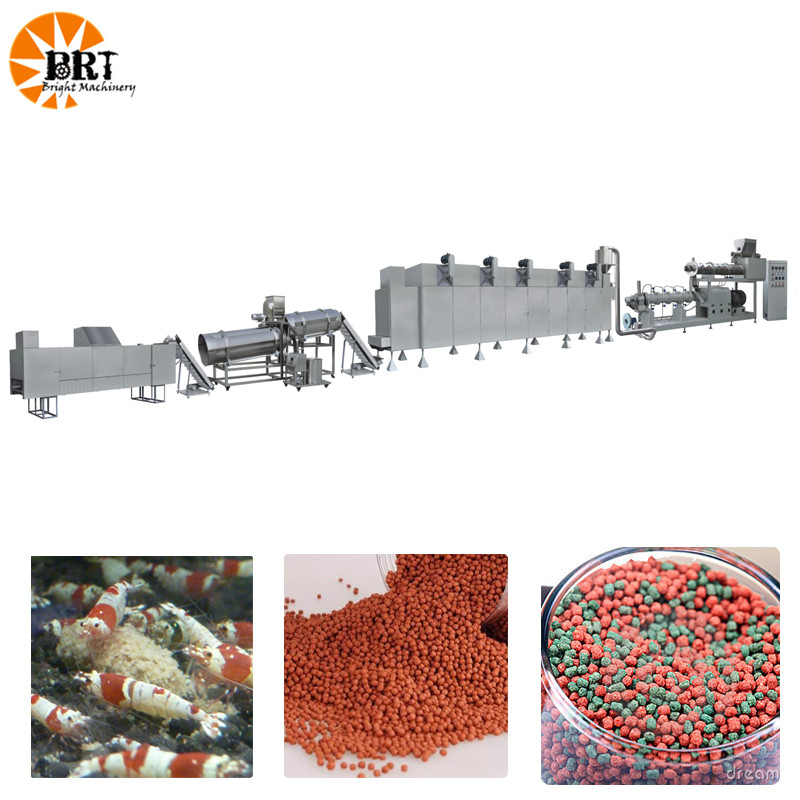

3.Machine Display

Big Capacity Fish Feed Making Machine


4.Samples

Big Capacity Fish Feed Making Machine


5.Technical Parameter

Model

Install power(kw)

Actuall consumption(kw)

Capacity

Size(mm)

DSE-65 production line

80

56-64

100-150 kg/h

21000*1500*3000

DSE-70 production line

116

82-93

200-250 kg/h

21000*1500*3000

DSE-75 production line

154

108-123

300-350 kg/h

25000*1500*3200

DSE-85 production line

194

137-156

400-500 kg/h

25000*1500*3200

DSE-95S productionline

165(Steam dryer)

115-132

1000-1800 kg/h

28000*1500*3500

DSE-95S-2 production line

295(Steam dryer)

206-236

2000-3000 Kg/h

25000*20000*6000

DSE-95S-3 production line

375(Steam dryer)

263-300

3000-4000 Kg/h

25000*20000*13000

DSE-95S-4 production line

496(Steam dryer)

347-397

4000-5000 Kg/h

30000*25000*16000

DSE-130S production line

540(Steam dryer)

380-432

5000-6000 Kg/h

30000*30000*16000

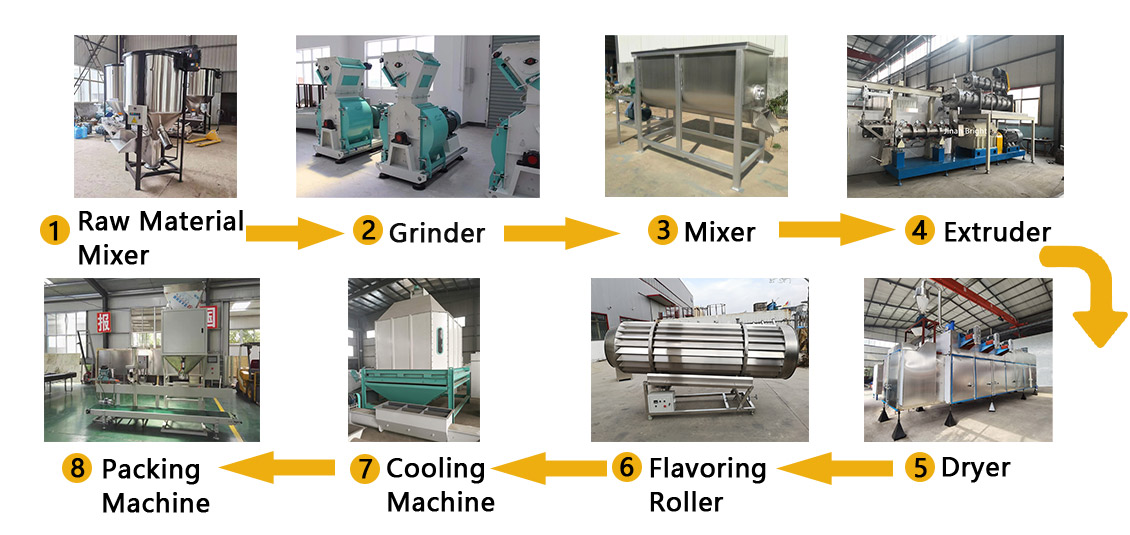

6.Flow Chart

Raw material Mixer→Elevator→Crusher set→Elevator→Silo→Mixer→Elevator→Silo→Extruder→Air conveyor→Steam dryer→Sifting screen→Conveyor→Flavoring roller→Elevator→Cooling machine→Elevator→Silo→Packing machine

Big Capacity Fish Feed Machine


7.Product Advantages

1. Customers can choose a fully automatic batching system, e,which is highly automated and saves manpower;central control system;The number of silos can also be adjusted according to the customer's formula, the characteristics of the raw materials and other factors to achieve the highest utilization rate and effectively control the production cost;The silo is configured in front of the main equipment to ensure continuous production.


Big Capacity Fish Feed Making Machine  Big Capacity Fish Feed Making Machine  Big Capacity Fish Feed Making Machine  Big Capacity Fish Feed Making Machine


2.After raw material feeding the whole system is automatic,mixing,crushing,extruding,drying,cooling and packing,continuous production line,reduce manual work。only labor is required in feeding and packaging, and it can be designed as a multi-layer structure to reduce the floor space, and at the same time use gravity to transport efficiently and save production costs.


Big Capacity Fish Feed Making Machine  Big Capacity Fish Feed Making Machine  Big Capacity Fish Feed Making Machine  Big Capacity Fish Feed Making Machine


3. Using steam circulation oven, double door design,higher drying efficiency, saving energy consumption, saving production cost;stainless steel Mesh or chain plate,promise product quality;Steam circulation system, equipped with circulating fan and dehumidification fan, super high drying efficiency.


Big Capacity Fish Feed Making Machine  Big Capacity Fish Feed Making Machine  Big Capacity Fish Feed Making Machine  Big Capacity Fish Feed Making Machine


4. Engineers can provide machine layout flowcharts and layout drawings according to the actual situation of the customer's factory, CAD production, and 3D drawings to ensure smooth installation and use by customers.


Big Capacity Fish Feed Making Machine  Big Capacity Fish Feed Making Machine  Big Capacity Fish Feed Making Machine


5.The extruder adopts high-end configuration. Siemens motors, Delta inverters, Schneider electric devices. Adopt high-torque box body, high strength and good stability; use NSK gear, equipped with forced lubrication, including filter and condenser, with long service life; machine barrel is made of 45# alloy steel, with wear-resistant bushing inside, use Long service life, low replacement cost, steam heating, high thermal efficiency; cantilever type rotary cutting, easy to adjust, fast tool setting; full combination screw, material w6mo5cr4v2, high-speed alloy steel, vacuum quenching, wide applicability, can be combined according to customer formula changes; Using a multi-shaft conditioner to precook the material to increase the protein content of the product and the output of the machine.


Big Capacity Fish Feed Making Machine  Big Capacity Fish Feed Making Machine  Big Capacity Fish Feed Making Machine  Big Capacity Fish Feed Making Machine
