Lead Time: 15-25 days
Materials: stainless steel 304
Voltage: Customized, 110v-440v,50-60hz.
Core Components Brand: Siemens,Delta, Schneider, Baltur
Shipping: Support to sea freight, land and air freight
Service:
1 One year warranty, lifetime service
2 Local engineer on-site service available within 14 working days
Big Capacity Fish Feed Machine
1.Introduction
The forms of fish feed have gone through a way from uncooked to cooked, from shallow processing to deep processing, from the actual fish and shrimp crushed proper now to feeding, to the later matured pellet feeding, to the modern nutrient ratio scientific feeding. the extruded fish feed equipment and device manufacturing line specializes in the manufacturing of numerous kinds and specifications of extruded aquatic fish feed for small and medium aquaculture farms and character fisheries. the output of our fish feed tool is one hundred kg in step with hour -10 plenty everyday with hour, divided into terrific tool configurations. excessive-protein extruded feed pellets, immoderate protein content, fish develop fast, take in well, and the diploma of feed waste is low, and fish excretion has lots less damage to water quality, and may be recycled and used to increase ecological agriculture. it's miles a effective tool and technique for sustainable fishery improvement.
2.Production Video

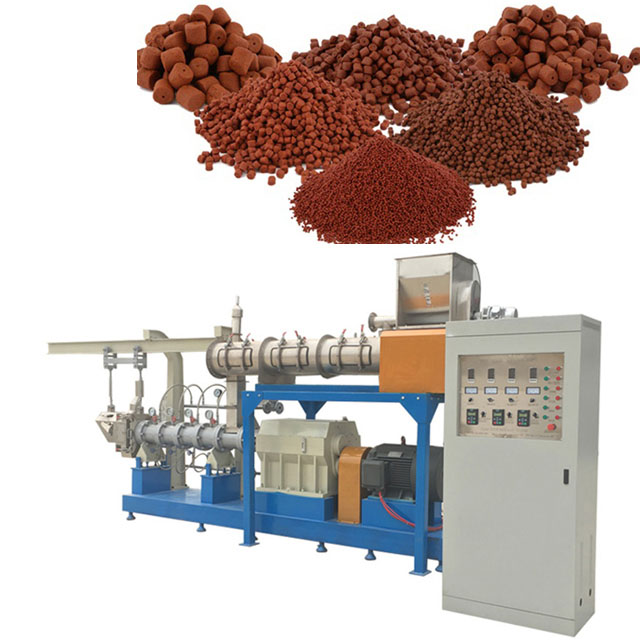

3.Machine Display

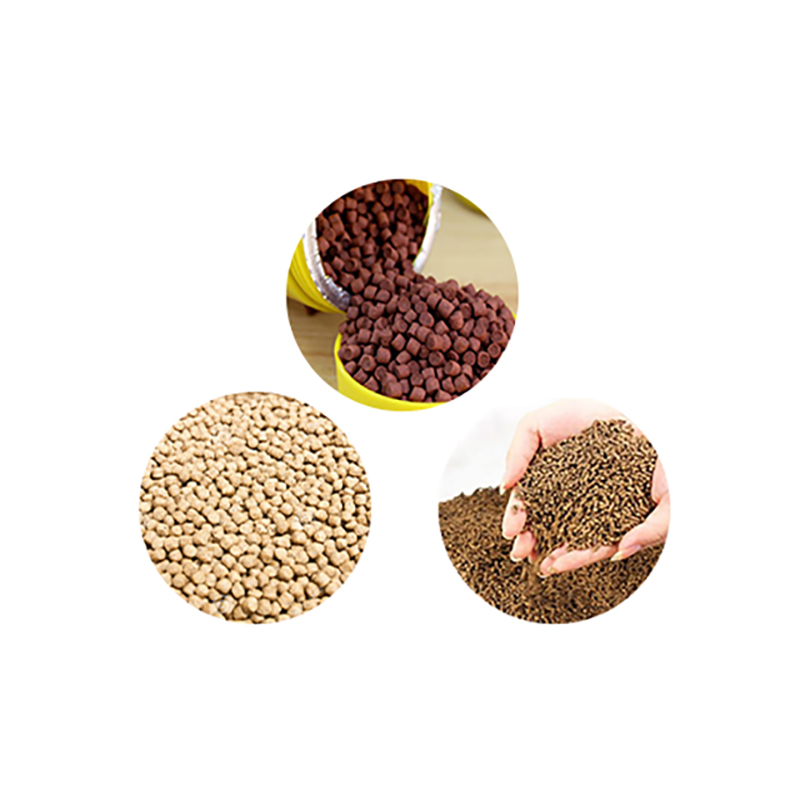

4.Samples
5.Technical Parameter
Model | Install power(kw) | Actuall consumption(kw) | Capacity | Size(mm) |
DSE-65 production line | 80 | 56-64 | 100-150 kg/h | 21000*1500*3000 |
DSE-70 production line | 116 | 82-93 | 200-250 kg/h | 21000*1500*3000 |
DSE-75 production line | 154 | 108-123 | 300-350 kg/h | 25000*1500*3200 |
DSE-85 production line | 194 | 137-156 | 400-500 kg/h | 25000*1500*3200 |
DSE-95S productionline | 165(Steam dryer) | 115-132 | 1000-1800 kg/h | 28000*1500*3500 |
DSE-95S-2 production line | 295(Steam dryer) | 206-236 | 2000-3000 Kg/h | 25000*20000*6000 |
DSE-95S-3 production line | 375(Steam dryer) | 263-300 | 3000-4000 Kg/h | 25000*20000*13000 |
DSE-95S-4 production line | 496(Steam dryer) | 347-397 | 4000-5000 Kg/h | 30000*25000*16000 |
DSE-130S production line | 540(Steam dryer) | 380-432 | 5000-6000 Kg/h | 30000*30000*16000 |

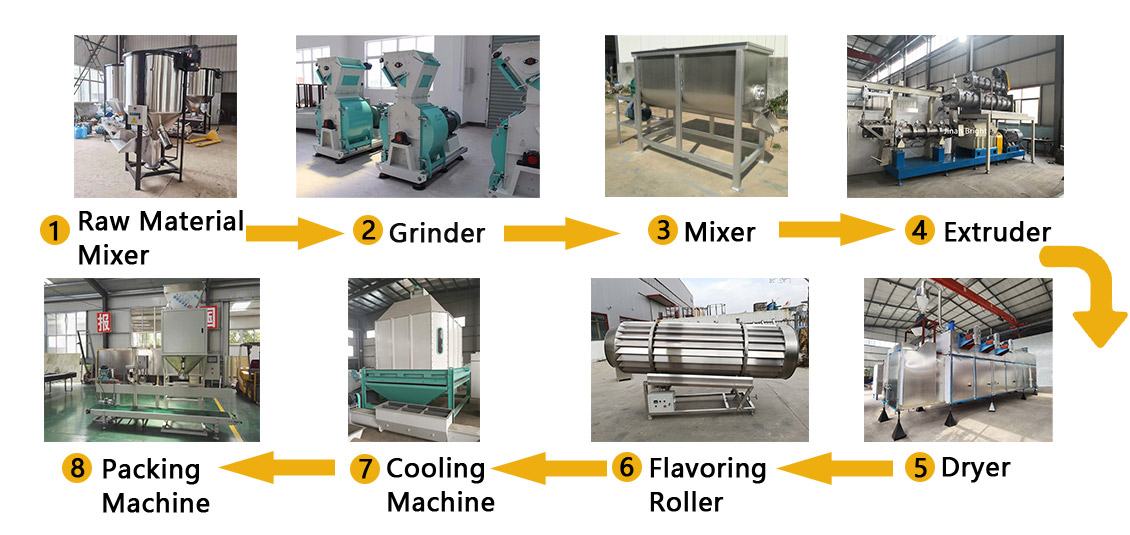

6.Flow Chart
Raw material Mixer→Elevator→Crusher set→Elevator→Silo→Mixer→Elevator→Silo→Extruder→Air conveyor→Steam dryer→Sifting screen→Conveyor→Flavoring roller→Elevator→Cooling machine→Elevator→Silo→Packing machine
7.Product Advantages

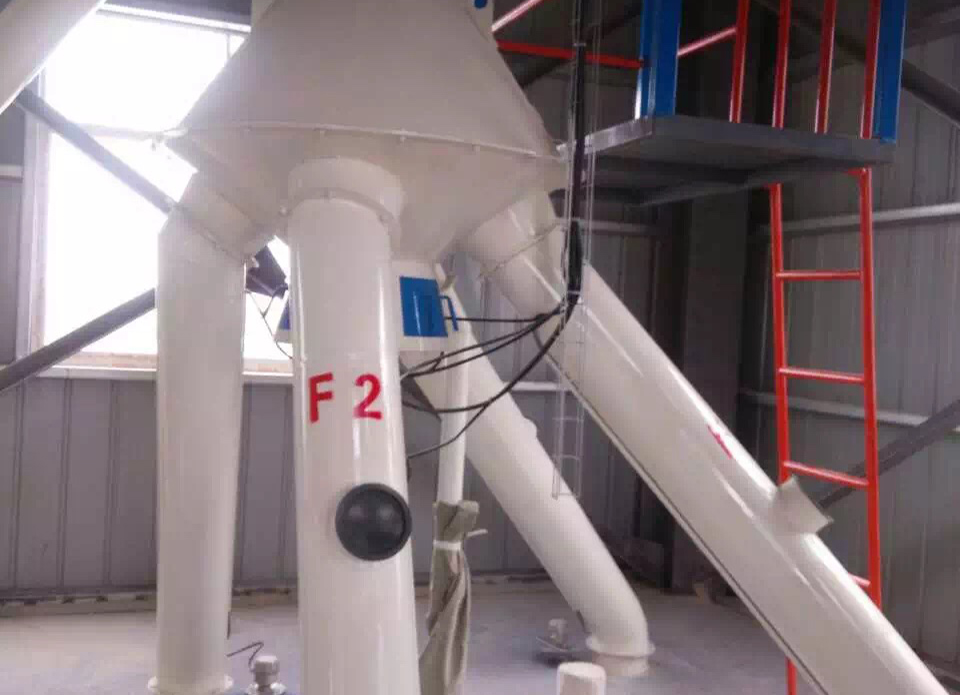

1. Customers can choose a fully automatic batching system, which is highly automated and saves manpower;central control system;The number of silos can also be adjusted according to the customer's formula, the characteristics of the raw materials and other factors to achieve the highest utilization rate and effectively control the production cost;The silo is configured in front of the main equipment to ensure continuous production.
2.After raw material feeding the whole system is automatic,mixing,crushing,extruding,drying,cooling and packing,continuous production line,reduce manual work。only labor is required in feeding and packaging, and it can be designed as a multi-layer structure to reduce the floor space, and at the same time use gravity to transport efficiently and save production costs.

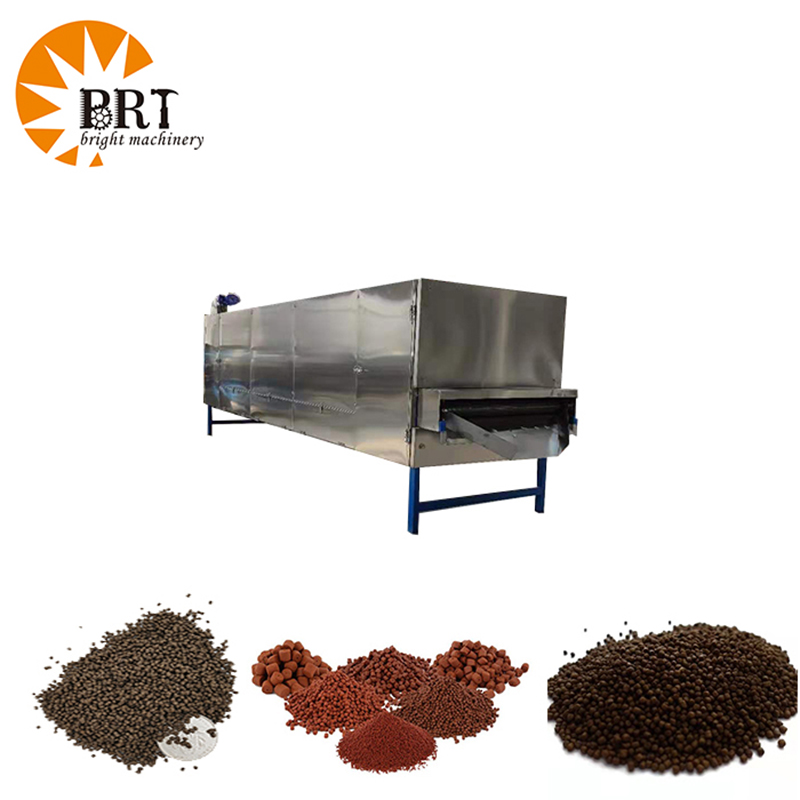

3. Using steam circulation oven, double door design,higher drying efficiency, saving energy consumption, saving production cost;stainless steel Mesh or chain plate,promise product quality;Steam circulation system, equipped with circulating fan and dehumidification fan, super high drying efficiency.
4. Engineers can provide machine layout flowcharts and layout drawings according to the actual situation of the customer's factory, CAD production, and 3D drawings to ensure smooth installation and use by customers.

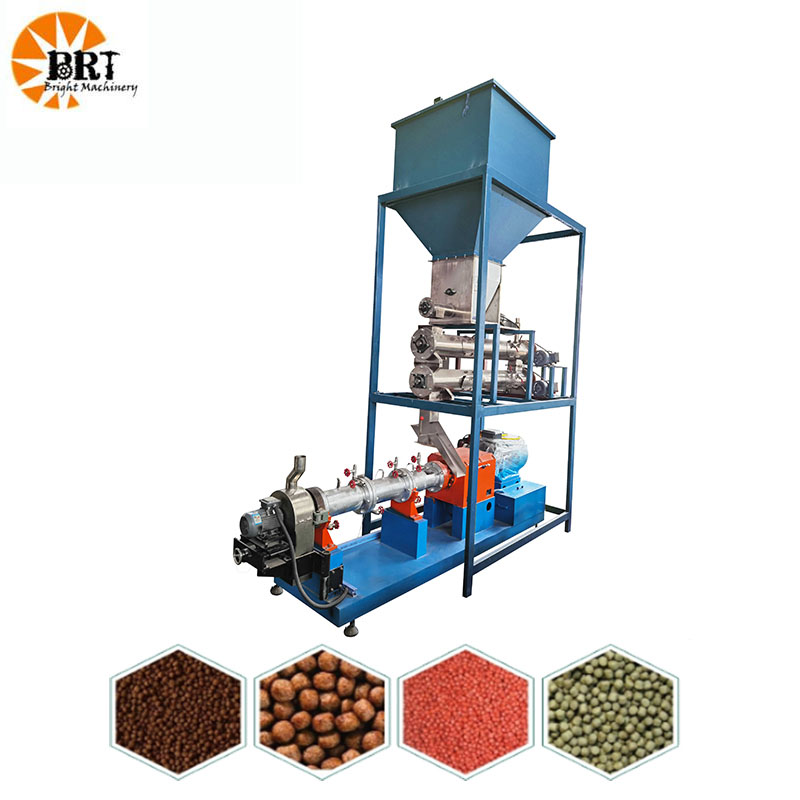

5.The extruder adopts high-end configuration. Siemens motors, Delta inverters, Schneider electric devices. Adopt high-torque box body, high strength and good stability; use NSK gear, equipped with forced lubrication, including filter and condenser, with long service life; machine barrel is made of 45# alloy steel, with wear-resistant bushing inside, use Long service life, low replacement cost, steam heating, high thermal efficiency; cantilever type rotary cutting, easy to adjust, fast tool setting; full combination screw, material w6mo5cr4v2, high-speed alloy steel, vacuum quenching, wide applicability, can be combined according to customer formula changes; Using a multi-shaft conditioner to precook the material to increase the protein content of the product and the output of the machine.
