Fish Feed Making Machine

Lead Time: 15-25 days

Materials: stainless steel 304

Voltage: Customized, 110v-440v,50-60hz.

Core Components Brand: Siemens,Delta, Schneider, Baltur

Shipping: Support to sea freight, land and air freight

Service:

1 One year warranty, lifetime service

2 Local engineer on-site service available within 14 working days


  Contact Now
Product Details

Fish Feed Making Machine


1.Introduction

The types of fish feed have gone through a way from raw to cooked, from shallow processing to deep processing, from the real fish and shrimp crushed right now to feeding, to the later matured pellet feeding, to the contemporary nutrient ratio scientific feeding. the extruded fish feed gadget and machine production line specializes in the manufacturing of various sorts and specifications of extruded aquatic fish feed for small and medium aquaculture farms and individual fisheries. the output of our fish feed device is one hundred kg in keeping with hour -10 plenty regular with hour, divided into extraordinary tool configurations. high-protein extruded feed pellets, immoderate protein content material, fish broaden rapid, soak up nicely, and the diploma of feed waste is low, and fish excretion has a lot much less damage to water best, and may be recycled and used to growth ecological agriculture. it's miles a effective tool and approach for sustainable fishery improvement.


2.Production Video

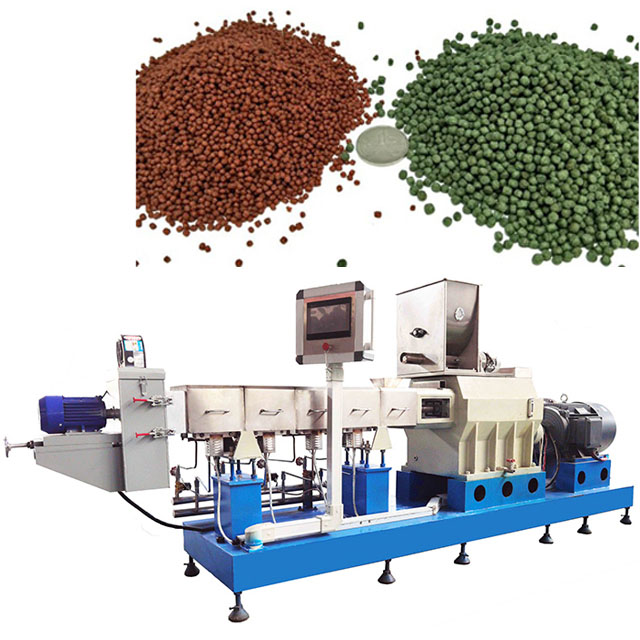

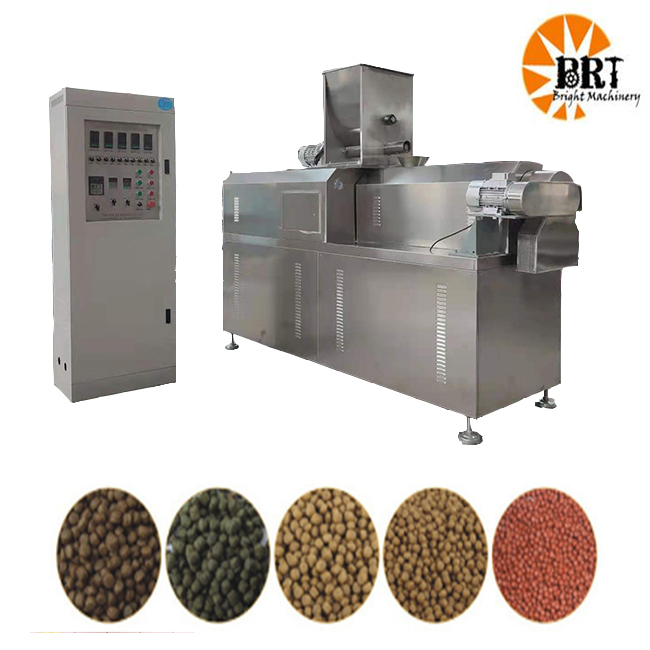

3.Machine Display

Fish Feed Making Machine


4.Samples

Fish Feed Making Machine


5.Technical Parameter

Model

Install power(kw)

Actuall consumption(kw)

Capacity

Size(mm)

DSE-65 production line

80

56-64

100-150 kg/h

21000*1500*3000

DSE-70 production line

116

82-93

200-250 kg/h

21000*1500*3000

DSE-75 production line

154

108-123

300-350 kg/h

25000*1500*3200

DSE-85 production line

194

137-156

400-500 kg/h

25000*1500*3200

DSE-95S productionline

165(Steam dryer)

115-132

1000-1800 kg/h

28000*1500*3500

DSE-95S-2 production line

295(Steam dryer)

206-236

2000-3000 Kg/h

25000*20000*6000

DSE-95S-3 production line

375(Steam dryer)

263-300

3000-4000 Kg/h

25000*20000*13000

DSE-95S-4 production line

496(Steam dryer)

347-397

4000-5000 Kg/h

30000*25000*16000

DSE-130S production line

540(Steam dryer)

380-432

5000-6000 Kg/h

30000*30000*16000


6.Flow Chart

Screw conveyor→Mixer→Screw conveyor→Extruder→Air conveyor→Dryer→Sifter→Hoist→Flavoring roller→Cooling conveyor

Fish Feed Making Machine


7.Product Advantage

1 Adopt Siemens main motor, Delta inverter, Schneider Omron ABB electrical components, the world's top brands, efficient and stable operation, reliable quality, durable, global accessories, can be directly purchased locally, effectively reducing production cost.


Fish Feed Making Machine Fish Feed Making Machine Fish Feed Making Machine Fish Feed Making Machine


2. The screw material is high-speed alloy steel, carburized, with hardness up to HRC 55-65, high wear resistance, high hardness, good toughness, optional 38CrMoAl, 12CrMoV, W6Mo5Cr4V2 material, long service life. Some models are equipped with a combination screw, which has wider applicability of raw materials. The screw combination method can be adjusted according to different products, and one machine can be used for multiple purposes.


Fish Feed Making Machine Fish Feed Making Machine Fish Feed Making Machine Fish Feed Making Machine


3.The main motor, rotary cutting motor and feeding motor are all controlled by frequency conversion, which can realize soft start and effectively protect the motor, and can adjust the speed according to the product status to produce higher quality products; equipped with PLC touch screen control system, equipment temperature and The speed adjustment is more digital and the control is more precise.



Fish Feed Making Machine Fish Feed Making Machine Fish Feed Making Machine Fish Feed Making Machine


4.Using a new type of box, the box material QT400, good stability. Gear material 20CrNiMoA, carburizing and quenching, hardness HRC58-62, high precision, low noise, long service life; using Japanese NSK, SKF bearings, high precision, long life, stable performance; oil pump motor, forced internal circulation lubrication; condenser, lower The surface temperature of gears and bearings increases the service life; the filter cleans the impurities in the oil, improves the lubrication effect and prolongs the service life.


Fish Feed Making Machine Fish Feed Making Machine Fish Feed Making Machine Fish Feed Making Machine


5.According to the actual situation, different energy sources, electricity, fuel oil, gas, steam can be used to save production costs; equipped with circulating fans and dehumidification fans to promote heat circulation, remove water vapor, and improve drying efficiency; 304 stainless steel mesh cloth and mesh are used. belt to ensure product quality; adjustable running speed, adjust drying time according to different products, high efficiency.



Fish Feed Making Machine Fish Feed Making Machine Fish Feed Making Machine Fish Feed Making Machine
