Fish Feed Extruder Machinery Line

Fish Feed Extruder Machinery Line

1.Introduction

1. Extrusion puffing of the fish feed pellet making machinery is a process in which the raw materials are subjected to high temperature, high pressure and instant curing, which integrates transportation, crushing, extrusion, mixing, shearing, high temperature disinfection and molding.

2. Fish feed pellet making machinery can process viscous, high-fat, high-moisture raw materials.

3. Good water resistance, aquatic feed pellets produced by fish feed pellet making machinery can be very stable in water, no matter whether it is sinking feed or floating feed, it can remain undisintegrated after being soaked in water for 12 hours, which can maintain the water quality of aquaculture and reduce the waste of feed.

4. Higher digestibility. Improve the digestibility of starch, protein and other substances, strong extrusion of the fish feed pellet making machinery can degrade some compact cellulose, keratin, etc., so that the digestibility is greatly improved.

5. Excellent palatability. The finished puffed granules produced by fish feed pellet making machinery have the characteristics of porosity and uniform texture, and produce some aroma substances, which increases the appetite of the feed, stimulates the appetite of aquatic animals, and increases the feed intake.

6. Widen the scope of raw material utilization. The twin-screw fish feed pellet making machinery can process excess water, oil or cellulose materials into other forms of aquatic products, enriching feed resources.

2.Production Video

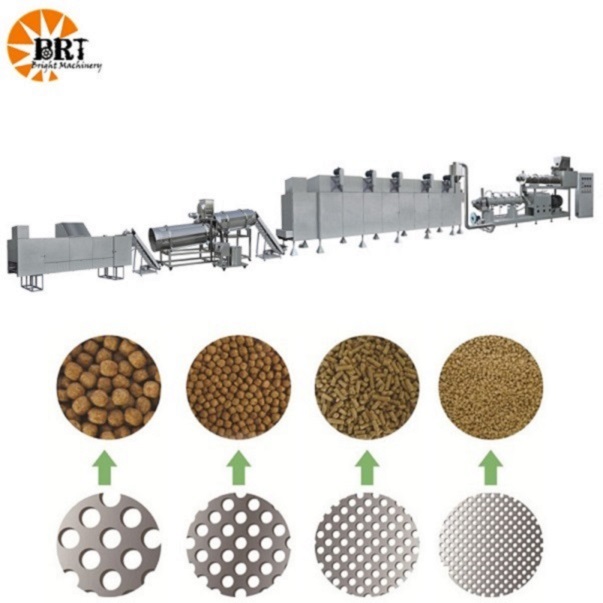

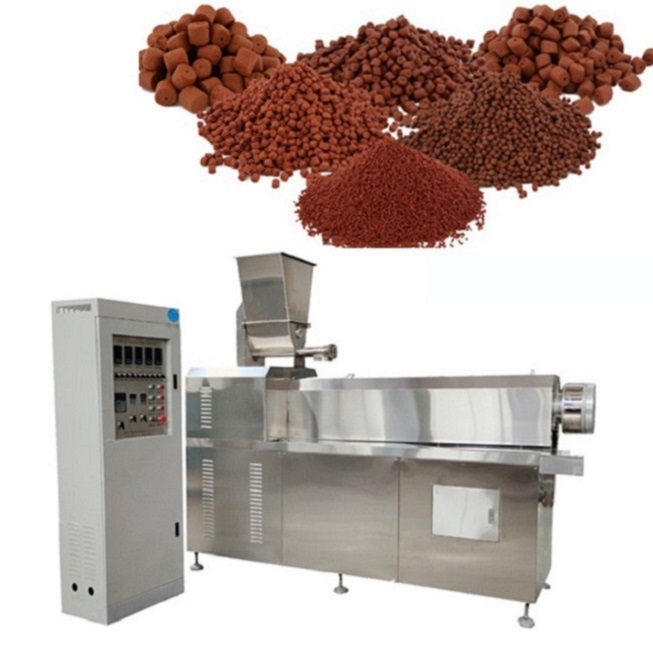

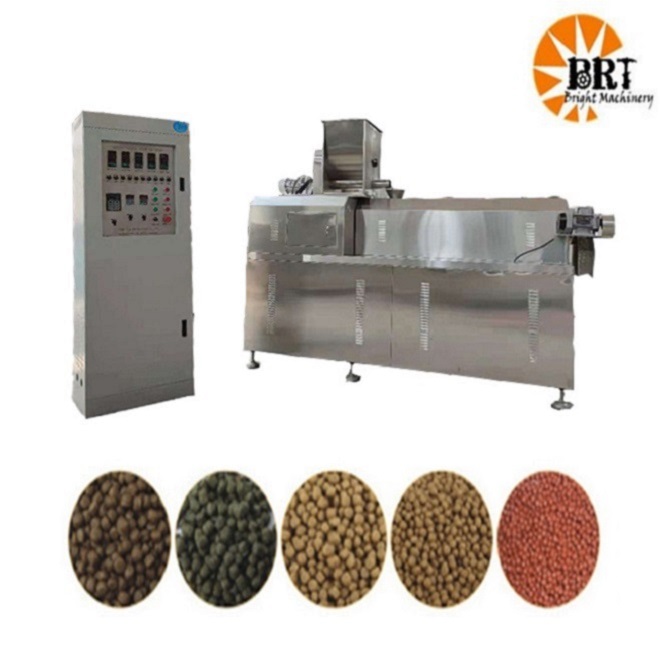

3.Machine Display

4.Samples

5.Technical Parameter

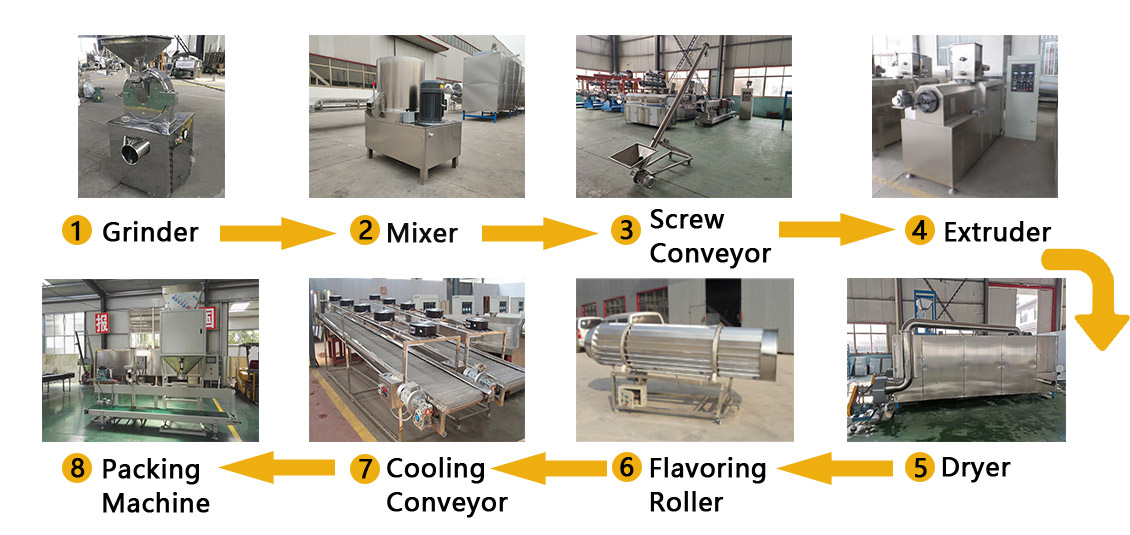

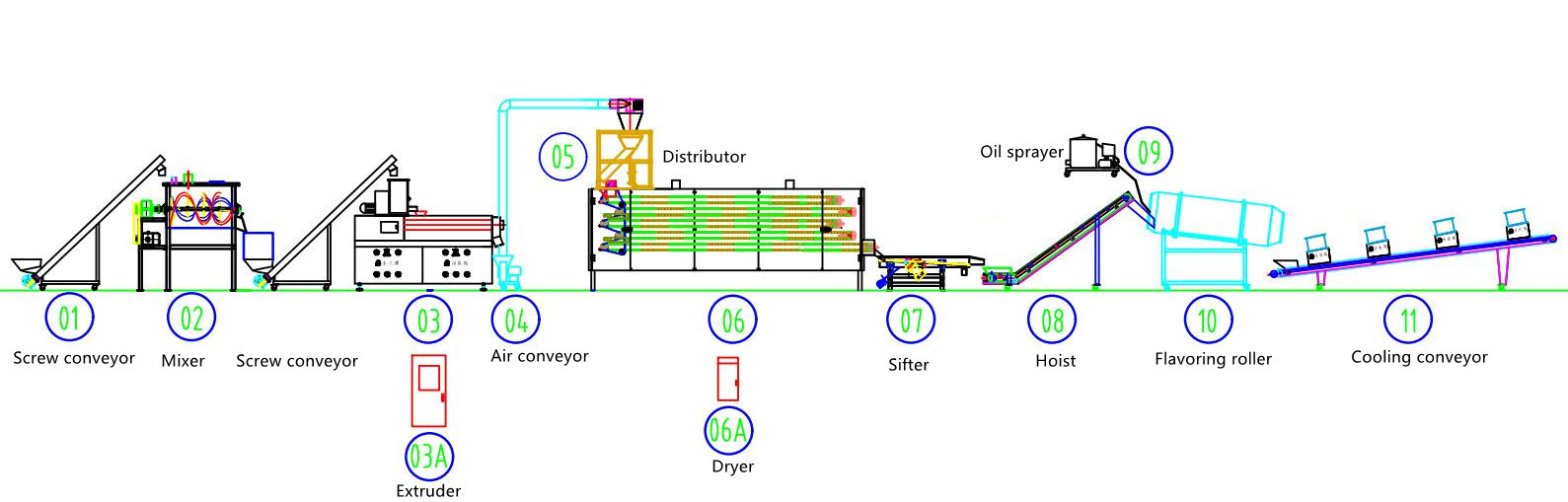

6.Flow Chart

Screw conveyor→Mixer→Screw conveyor→Extruder→Air conveyor→Dryer→Sifter→Hoist→Flavoring roller→Cooling conveyor

7.Product Advantages

1 Adopt Siemens main motor, Delta inverter, Schneider Omron ABB electrical components, the world's top brands, efficient and stable operation, reliable quality, durable, global accessories, can be directly purchased locally, effectively reducing production cost.

2.The screw material is high-speed alloy steel, carburized, with hardness up to HRC 55-65, high wear resistance, high hardness, good toughness, optional 38CrMoAl, 12CrMoV, W6Mo5Cr4V2 material, long service life. Some models are equipped with a combination screw, which has wider applicability of raw materials. The screw combination method can be adjusted according to different products, and one machine can be used for multiple purposes.

3.The main motor, rotary cutting motor and feeding motor are all controlled by frequency conversion, which can realize soft start and effectively protect the motor, and can adjust the speed according to the product status to produce higher quality products; equipped with PLC touch screen control system, equipment temperature and The speed adjustment is more digital and the control is more precise.

4.Using a new type of box, the box material QT400, good stability. Gear material 20CrNiMoA, carburizing and quenching, hardness HRC58-62, high precision, low noise, long service life; using Japanese NSK, SKF bearings, high precision, long life, stable performance; oil pump motor, forced internal circulation lubrication; condenser, lower The surface temperature of gears and bearings increases the service life; the filter cleans the impurities in the oil, improves the lubrication effect and prolongs the service life.

5.According to the actual situation, different energy sources, electricity, fuel oil, gas, steam can be used to save production costs; equipped with circulating fans and dehumidification fans to promote heat circulation, remove water vapor, and improve drying efficiency; 304 stainless steel mesh cloth and mesh are used. belt to ensure product quality; adjustable running speed, adjust drying time according to different products, high efficiency.
