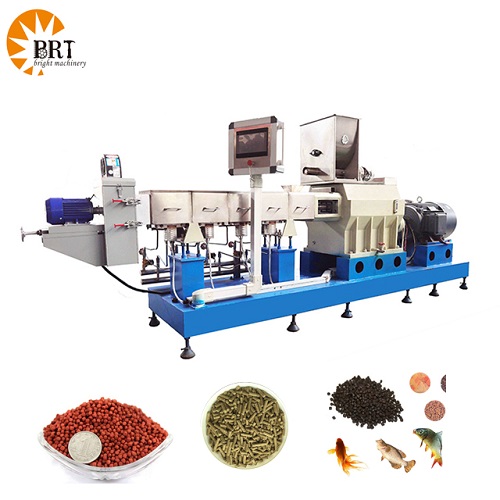

Double Screw Fish Feed Machine

Double Screw Fish Feed Machine

1.Introduction

Main aspects of Double Screw Fish Feed Machine:

1. The feeding, rotary slicing and important power all undertake frequency conversion velocity law system, which has robust power, steady operation, power saving, excessive aquatic manufacturing efficiency, sturdy and long lasting Double Screw Fish Feed Machine, low failure rate, and handy operation and maintenance.

2. The screw of Double Screw Fish Feed Machine is made of alloy cloth via a extraordinary process, the provider existence is 3-4 instances longer than that of comparable home machines, and the cost of producing feed is low; the segmented mixed screw is appropriate for a extensive vary of uncooked substances and greater various products.

3. Automatic lubrication machine reduces mechanical strength consumption and prolongs carrier life.

4. The feeding device of Double Screw Fish Feed Machine computing device adopts spiral pressured feeding, and the feeding is uniform and wide. Double Screw Fish Feed Machine can be geared up with an automated feeding system. The feeder is a screw conveying variable frequency pace manipulate to regulate the feeding quantity to manipulate the puffing output (quantitative feeding, and can efficaciously forestall the fabric from arching).

5. Double Screw Fish Feed Machine has linear bearing device adjustment system, modify the device precisely and quickly.

2.Production Video

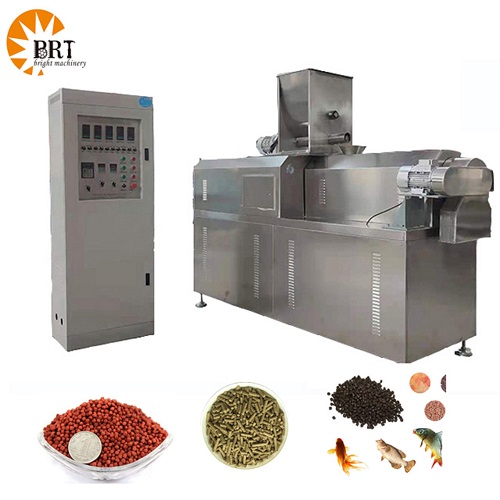

3.Machine Display

4.Samples

5.Technical Parameter

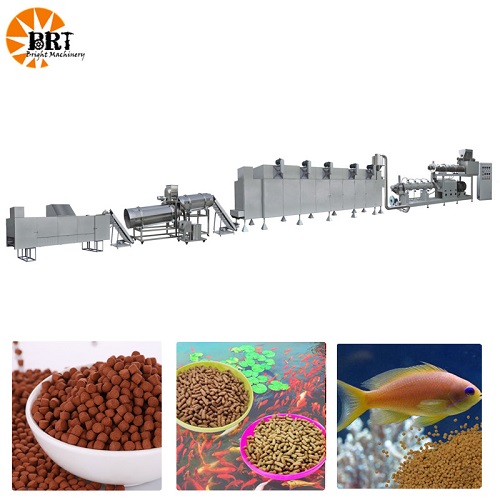

6.Flow Chart

Screw conveyor→Mixer→Screw conveyor→Extruder→Air conveyor→Dryer→Sifter→Hoist→Flavoring roller→Cooling conveyor

7.Product Advantage

1. Double Screw Fish Feed Machine Adopt Siemens major motor, Delta inverter, Schneider Omron ABB electrical components, the world's pinnacle brands, environment friendly and secure operation, dependable quality, durable, world accessories, can be without delay bought locally, efficaciously lowering manufacturing cost.

2. The screw cloth of Double Screw Fish Feed Machine is high-speed alloy steel, carburized, with hardness up to HRC 55-65, excessive put on resistance, excessive hardness, accurate toughness, non-compulsory 38CrMoAl, 12CrMoV, W6Mo5Cr4V2 material, lengthy provider life. Some fashions of floating fish feed equipment are geared up with a mixture screw, which has wider applicability of uncooked materials. The screw aggregate technique can be adjusted in accordance to exclusive products, and one computer can be used for more than one purposes.

3.The predominant motor, rotary reducing motor and feeding motor are all managed by using frequency conversion, which can recognise smooth begin and efficaciously guard the motor, and can modify the pace in accordance to the product fame to produce greater first-rate products; the Double Screw Fish Feed Machine geared up with PLC contact display manipulate system, gear temperature and The pace adjustment is greater digital and the manipulate is greater precise.

4.Double Screw Fish Feed Machine，using a new type of box, the box material QT400, good stability. Gear material 20CrNiMoA, carburizing and quenching, hardness HRC58-62, high precision, low noise, long service life; using Japanese NSK, SKF bearings, high precision, long life, stable performance; oil pump motor, forced internal circulation lubrication; condenser, lower The surface temperature of gears and bearings increases the service life; the filter cleans the impurities in the oil, improves the lubrication effect and prolongs the service life.

5.Double Screw Fish Feed Machine，using a new kind of box, the container cloth QT400, proper stability. Gear fabric 20CrNiMoA, carburizing and quenching, hardness HRC58-62, excessive precision, low noise, lengthy provider life; the usage of Japanese NSK, SKF bearings, excessive precision, lengthy life, steady performance; oil pump motor, pressured inside circulation lubrication; condenser, decrease The floor temperature of gears and bearings will increase the carrier life; the filter cleans the impurities in the oil, improves the lubrication impact and prolongs the carrier life.
