Lead Time: 15-25 days
Materials: stainless steel 304
Voltage: Customized, 110v-440v,50-60hz.
Core Components Brand: Siemens,Delta, Schneider, Baltur
Shipping: Support to sea freight, land and air freight
Service:
1 One year warranty, lifetime service
2 Local engineer on-site service available within 14 working days
Machinery Or Machine Line For Fish Feed Making
1 Introduction
Fish feed production lines have been very popular in recent years, and the fish feed market has continued to grow. Our fish feed production line adopts twin-screw extruder, which produces fish feed pellets with stable properties and uniform size, which are more suitable for fish feeding and growth.
2 Production Video

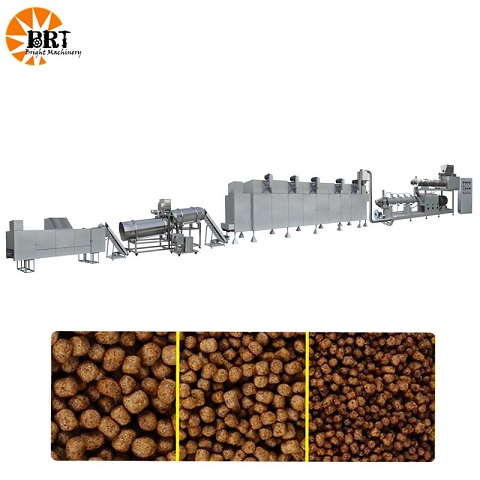

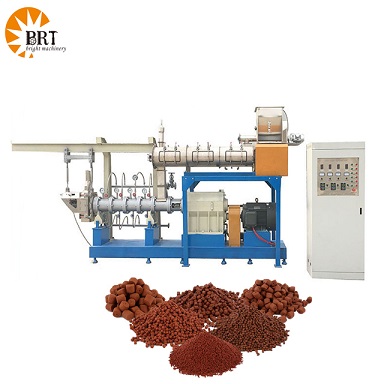

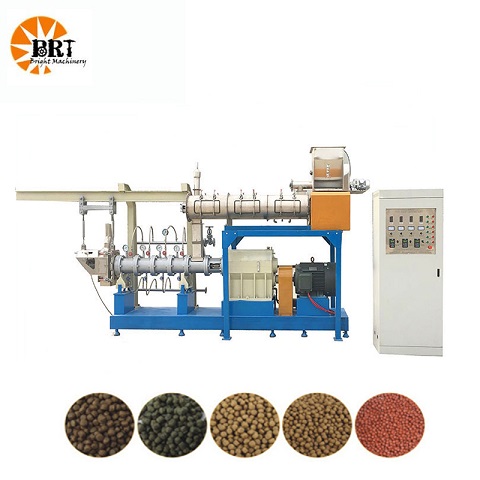

3 Machine Display

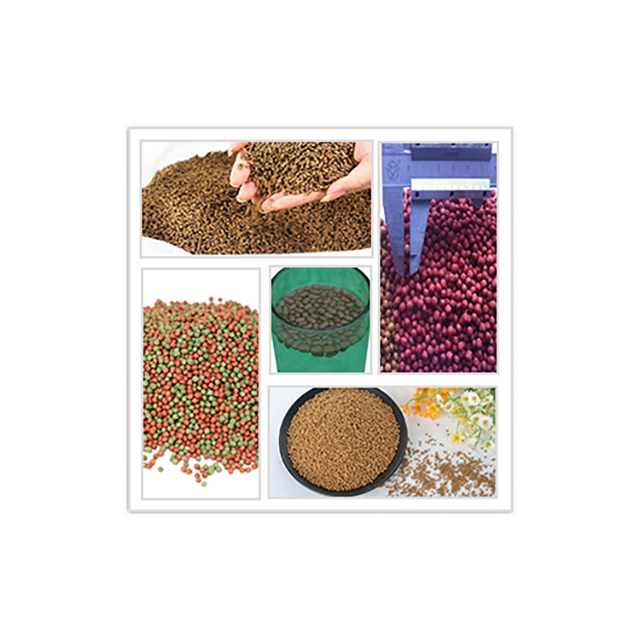

4 Sample
5 Technical Parameter
Model | Install power(kw) | Actuall consumption(kw) | Capacity | Size(mm) |
DSE-65 production line | 80 | 56-64 | 100-150 kg/h | 21000*1500*3000 |
DSE-70 production line | 116 | 82-93 | 200-250 kg/h | 21000*1500*3000 |
DSE-75 production line | 154 | 108-123 | 300-350 kg/h | 25000*1500*3200 |
DSE-85 production line | 194 | 137-156 | 400-500 kg/h | 25000*1500*3200 |
DSE-95S productionline | 165(Steam dryer) | 115-132 | 1000-1800 kg/h | 28000*1500*3500 |
DSE-95S-2 production line | 295(Steam dryer) | 206-236 | 2000-3000 Kg/h | 25000*20000*6000 |
DSE-95S-3 production line | 375(Steam dryer) | 263-300 | 3000-4000 Kg/h | 25000*20000*13000 |
DSE-95S-4 production line | 496(Steam dryer) | 347-397 | 4000-5000 Kg/h | 30000*25000*16000 |
DSE-130S production line | 540(Steam dryer) | 380-432 | 5000-6000 Kg/h | 30000*30000*16000 |

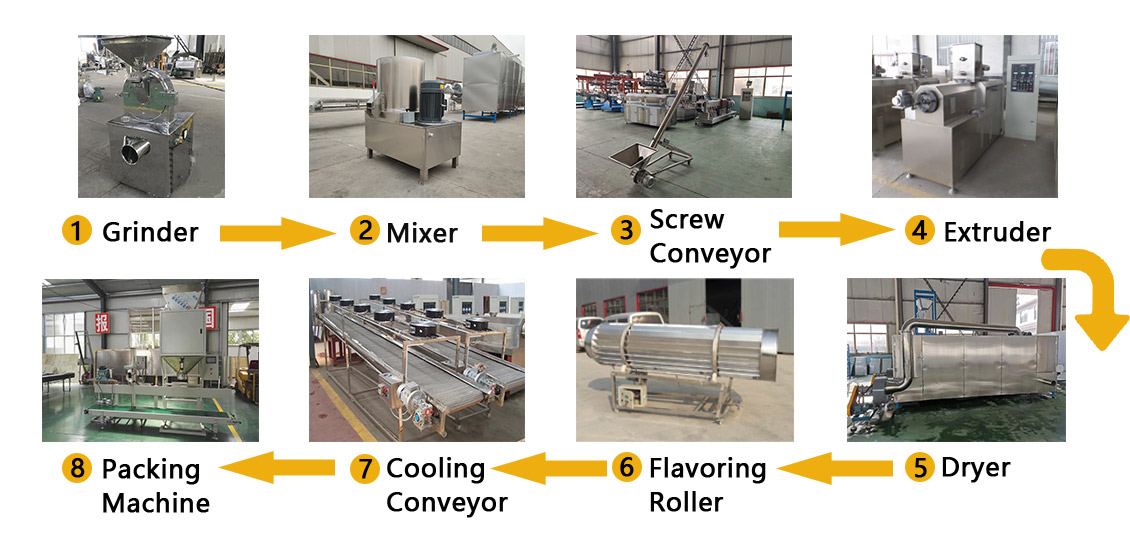

6 Flow Chart
Screw conveyor→Mixer→Screw conveyor→Extruder→Air conveyor→Dryer→Sifter→Hoist→Flavoring roller→Cooling conveyor
7 Product Advantage
1.The device is equipped with Siemens motors, delta inverters, schneider omron abbs, and other electric components, all of which are world-renowned brands. They are safe and reliable, have great efficiency, and long service lives, and can be purchased from anywhere in the world.
2.The screw is made of high-velocity alloy steel, carburized, with a hardness of hrc 55-65, high wear resistance, moderate hardness, high durability, non-obligatory 38crmoal, 12crmov, w6mo5cr4v2 material, and long carrier lives. A few models come with an aggregate screw, which allows for a larger range of raw materials to be used. The screw mixing technique can be changed to suit different products, and one device can serve multiple purposes.
3.The primary motor, rotary slicing motor, and feeding motor are all controlled via frequency conversion, which allows for a gentle start and efficient protection of the motor, as well as the ability to regulate the fee in accordance with the product reputation to produce higher-quality merchandise; equipped with a p.c. contact show manipulate tool, the temperature and speed adjustments are more digital, and the control is more unique.
4.Using a cutting-edge discipline, the field cloth qt400, the proper balance was achieved. The use of eastern nsk, skf bearings, excessive precision, long existence, stable usual overall performance; oil pump motor, compelled internal circulate lubrication; condenser, decrease the ground temperature of gears and bearings will increase the carrier lifestyles; the clean out cleans the impurities inside the oil, improves the lubrication;
5.To decrease production costs, various electrical sources, such as power, gasoline oil, gas, and steam, may be used; equipped with circulating fans and dehumidification fans to promote heat flow, eliminate water vapor, and improve drying performance; 304 stainless-steel mesh fabric and mesh are used. belt to ensure exceptional product; adjustable walking tempo, alter drying time in accordance with exceptional products, exceptional overall performance
