Fortified Rice Production Line

Lead Time: 15-25 days

Materials: stainless steel 304

Voltage: Customized, 110v-440v,50-60hz.

Core Components Brand: Siemens,Delta, Schneider, Baltur

Shipping: Support to sea freight, land and air freight

Service:

1 One year warranty, lifetime service

2 Local engineer on-site service available within 14 working days



  Contact Now
Product Details

Fortified Rice Production Line


1.Introduction

The fortified nutritious rice manufacturing line is a meals manufacturing device advanced and produced via the organisation in keeping with the cutting-edge meals vitamins desires. the production system adapts to the general situation of human beings's nutritional strengthening treatment in modern-day society, meets people's necessities for nutritional stability, and has the benefits of excessive diploma of automation and power saving. the production line can use various grains along with rice, millet, black rice, buckwheat, etc. as raw substances, upload diverse nutrients, proteins and minerals for processing, squeeze, mature and shape in an extruder to regenerate new stronger nutrients rice, its ingesting method is similar to herbal rice and it's miles simpler and extra handy, each nutritious and healthy.


2.Production Video

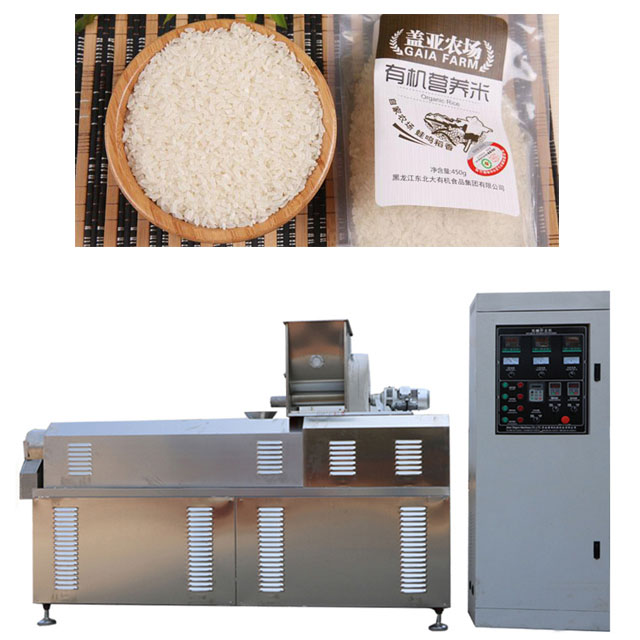

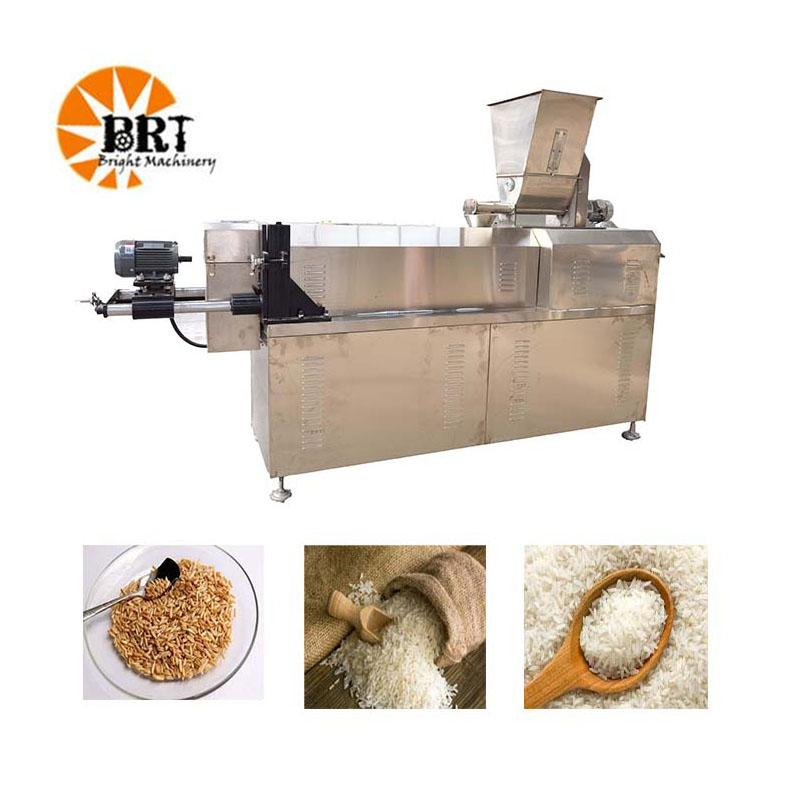

3.Machine Display

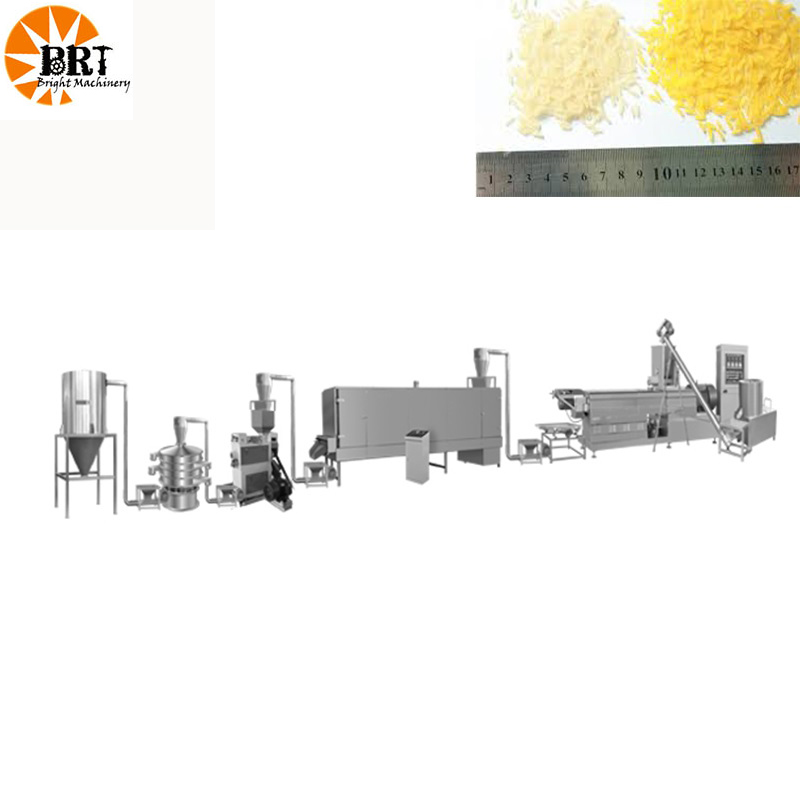

Fortified Rice Production Line

4.Samples

Fortified Rice Production Line Fortified Rice Production Line  Fortified Rice Production Line Fortified Rice Production Line


Fortified Rice Production Line Fortified Rice Production Line  Fortified Rice Production Line Fortified Rice Production Line


5.Technical Parameter

Model

Install power(kw)

Actuall consumption(kw)

Capacity

Size(mm)

DSE-70

production line

120

84-96

150-200 kg/h

21000*1500*3000

DSE-75C

production line

150

105-120

250-300 kg/h

24000*1500*3000

DSE-95C

Production line

490

342-392

400-500 kg/h

32000*1500*3000


6.Flow Chart

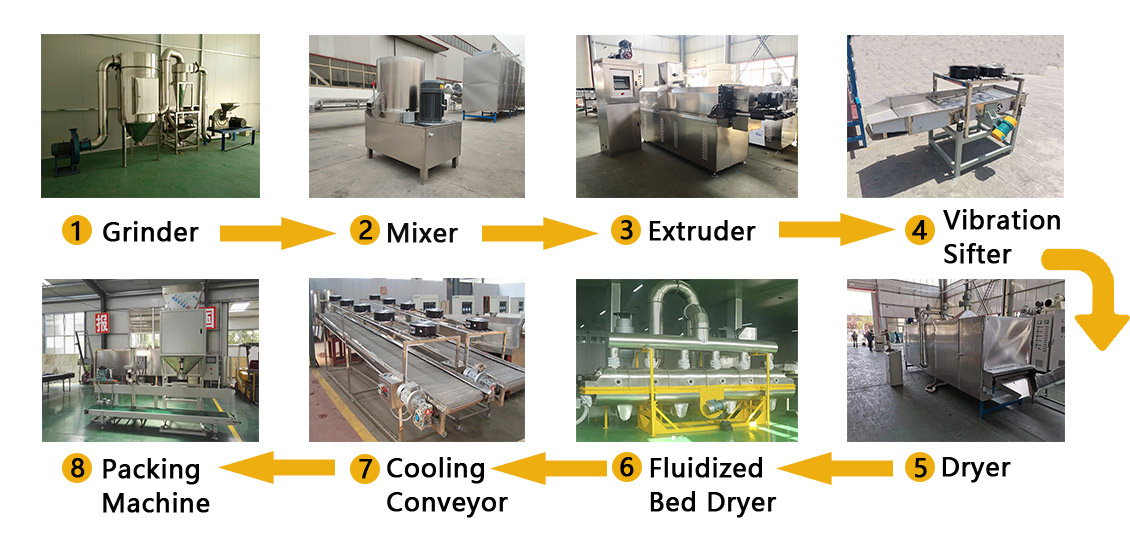

Flow chart:Grider→Mixer→Screw conveyor→Extruder→Vibration cooling machine→Air conveyor→Dryer→Cooling conveyor

Fortified Rice Production Line


7.Product Advantages

1. PLC touch screen control,easy operation,precise control,International famous parts and electric components,promise machine quality.Imported bearing set, strong carrying capacity and long service life.


Fortified Rice Production Line  Fortified Rice Production Line  Fortified Rice Production Line  Fortified Rice Production Line


2. The barrel is equipped with a water injection device to better meet the requirements of raw materials and quality,also can have a larger range of raw material adoption,Wider applicability of raw materials, can add a variety of nutrients to produce nutritional rice with different functions.


 Fortified Rice Production Line  Fortified Rice Production Line  Fortified Rice Production Line  Fortified Rice Production Line


3. Building block type combined screw, can be combined freely according to different raw materials and products,High-speed tool steel material, hardness HRC≥62, long service life,Unique rotary cutting design to ensure product consistency and surface smoothness.



Fortified Rice Production Line  Fortified Rice Production Line  Fortified Rice Production Line  Fortified Rice Production Line


4. The dryer uses fully insulated box, adopts internal thermal circulation method, high thermal efficiency, low energy consumption.The dryer has single-layer, three-layer, five-layer, and seven-layer ovens; multiple structures such as extended, reciprocating, etc.; multiple heating methods: electricity, steam, fuel/gas, available for selection, customer customization, choose the most suitable machine.


Fortified Rice Production Line  Fortified Rice Production Line  Fortified Rice Production Line  Fortified Rice Production Line
