Nik Naks Making Machines

Nik Naks Making Machines

1.Introduction

Cheetos Nik Naks are irregular puffed food made of corn residue (grits) as raw material and extruded by the main machine. The extruder vibrates the feeding hopper and can adjust the flow rate of raw materials. Feed screw speed is controlled by frequency conversion, which can be adjusted arbitrarily.

Frying type: ①Flour mixing machine→②Screw conveyor→③Rotary head extruder→④Elevator→⑤Separation cylinder→⑥Vibrating feeder→⑦Continuous fryer→⑧Vibration deoiling machine→⑨Seasoning line

2.Production Video

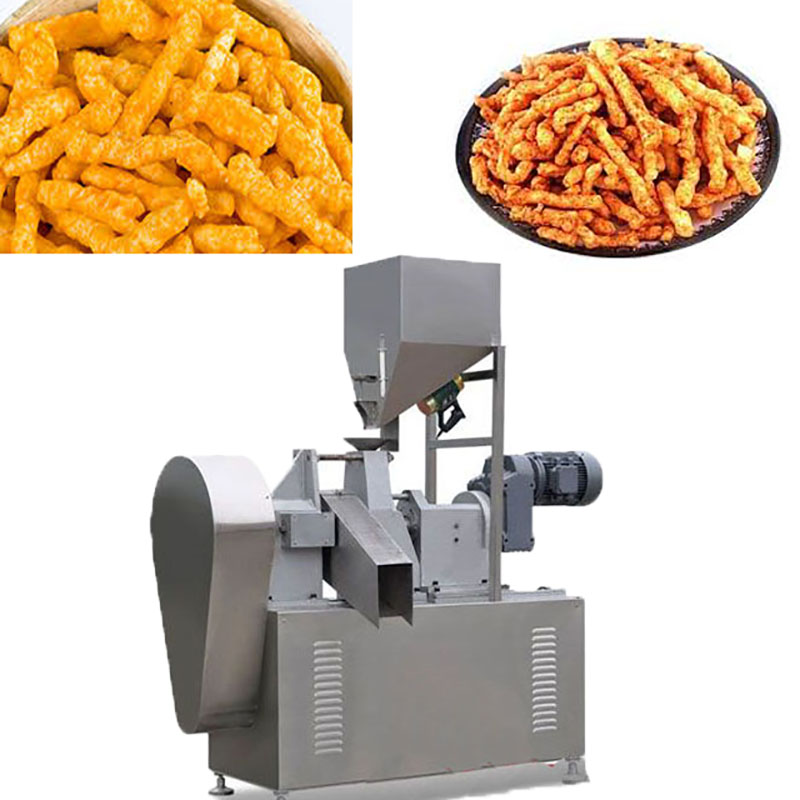

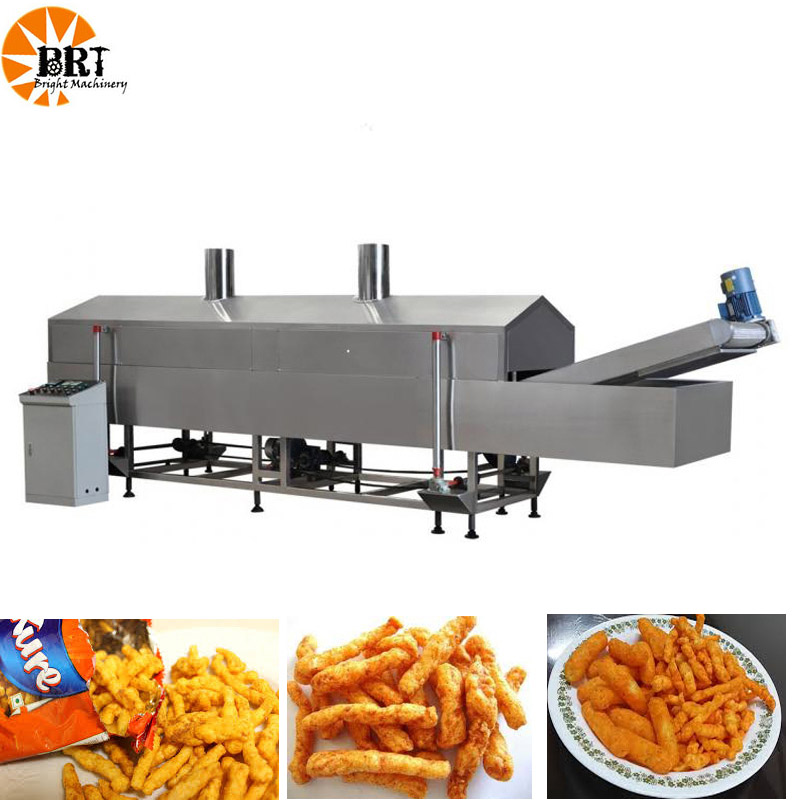

3.Machine Display

4.Samples

5.Technical Parameter

6.Flow Chart

Mixer→Screw conveyor→Extruder→Hoist→Roller screen→Hoistr→Fryer→De-oilling machine→Hoist→Flavoring roller→Cooling conveyor→Hoist→Packing machine

7.Product Advantages

1. The Nik Naks cheetos making machine have two different type: frying and baking nik naks, you could choose the type according to your local market.Both dryer and fryer have different option for heating energy. Electric.gas and fuel oil.

2. The latest rubbing and squeezing technology makes the product crisp and delicious,guarantee the product quality,uses bronze cutting pan to make the cheetos shape,high pressure and high temperature to have a good cure effect.

3. Exquisitely designed and precise control system,to adopt different material and make sure get the demanded puffing effect,the feeding and cutting motor frequency can be conreolled by the inverter,adjust according to material and final product.

4. The key parts are made of brass, which has good abrasion resistance,promise long service life,screw material 38CrMoAl,HRC 58-62,service life 1.5-2 years.

5. Food and material contact part is made by stainless steel 304 and food grade PVC,promise the food safety,the feeding silo and outlet are made by stainless steel 304,the silo with inspection window to check the material if need to feed or stop feeding.
