Lead Time: 15-25 days
Materials: stainless steel 304
Voltage: Customized, 110v-440v,50-60hz.
Core Components Brand: Siemens,Delta, Schneider, Baltur
Shipping: Support to sea freight, land and air freight
Service:
1 One year warranty, lifetime service
2 Local engineer on-site service available within 14 working days
Nutritional Powder Machine
1.Introduction
Nutritional powder refers to grains because the principle uncooked substances (corn, rice, millet, wheat, oats, yam, konjac, and so forth., and various beans consisting of black beans, crimson beans, barley, black sesame, and so forth.), with vegetables and culmination , eggs, meat and distinctive non-compulsory substances, adding calcium, phosphorus, iron and distinct minerals and vitamins, and so forth. thru the extrusion method to gelatinize the cereal starch, and the protein is matured, and processed into a new product that is accessible to consume, tastes strong, and nutritious. instances dietary supplement meals. together known as dietary powder. consistent with one in every of a type product formulas, dietary powder includes red bean and barley powder, yam powder, entire grain powder, five-grain meal replacement powder, and so forth.
2.Production Video

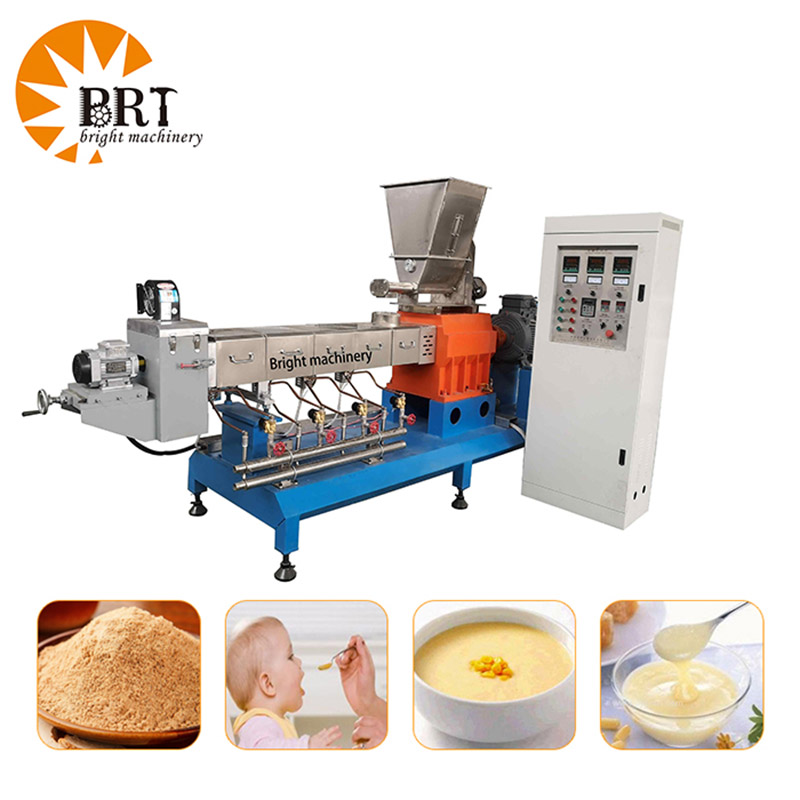

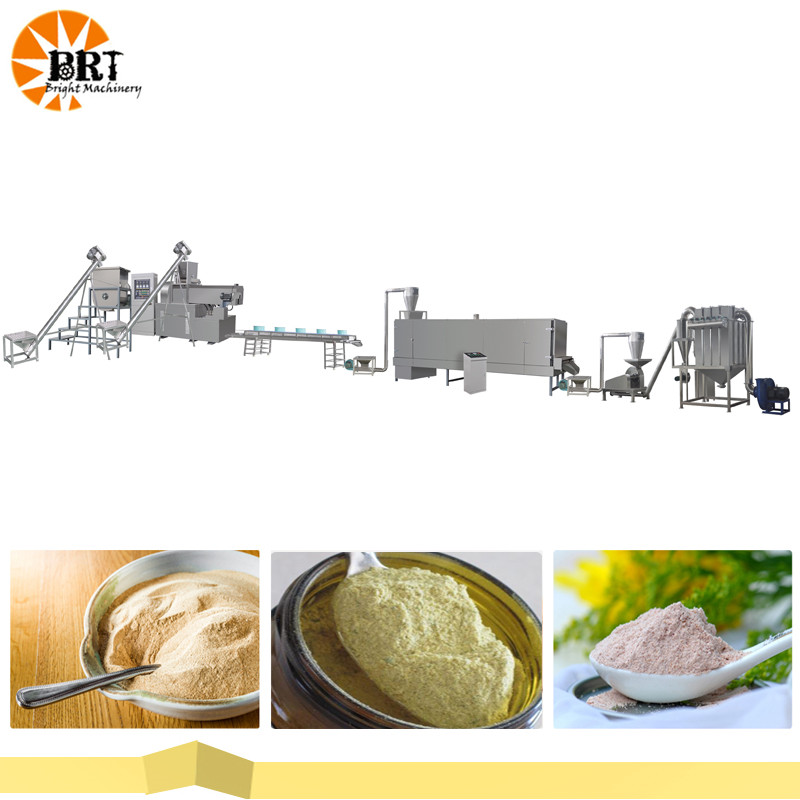

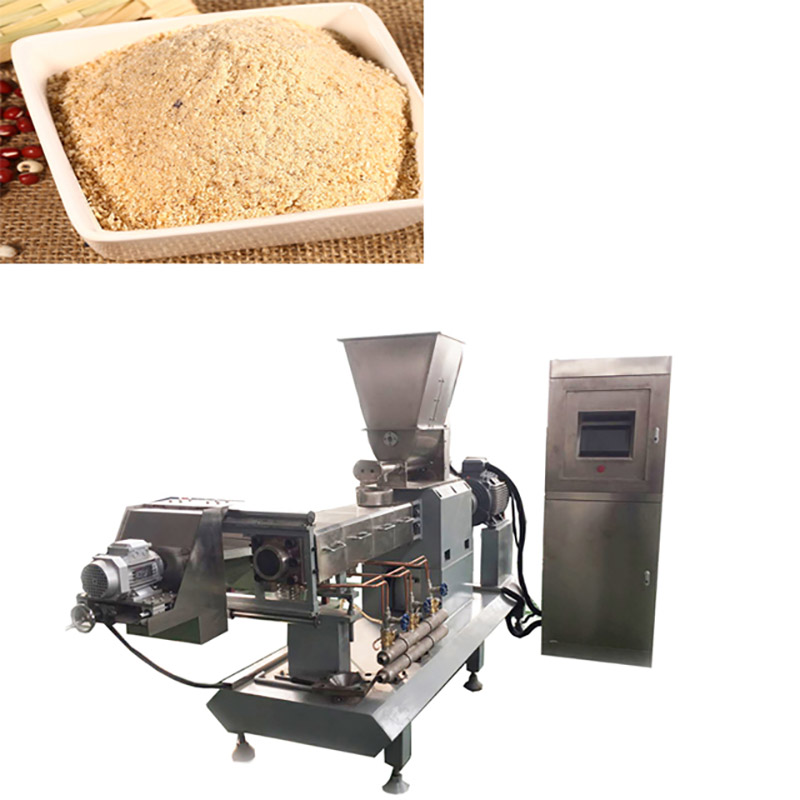

3.Machine Display
4.Samples
5.Technical Parameter
Model | Install power(kw) | Actuall consumption(kw) | Capacity | Size(mm) |
DSE-65 production line | 80 | 56-64 | 100-150 kg/h | 21000*1500*3000 |
DSE-70 production line | 116 | 82-93 | 200-250 kg/h | 21000*1500*3000 |
DSE-75 production line | 154 | 108-123 | 300-350 kg/h | 25000*1500*3200 |
DSE-85 production line | 194 | 137-156 | 400-500 kg/h | 25000*1500*3200 |
DSE-85S production line | 121(Steam dryer) | 85-97 | 600-800 kg/h | 28000*1500*3500 |
DSE-95S production line | 165(Steam dryer) | 115-132 | 1000-1800 kg/h | 28000*1500*3500 |

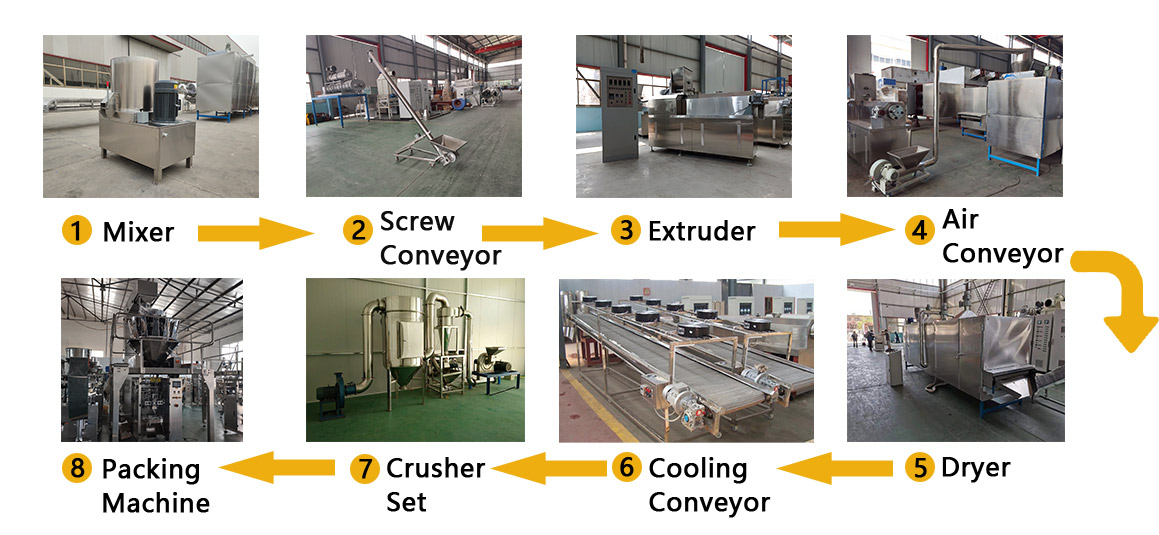

6.Flow Chart
Screw conveyor→Mixer→Bucket elevator→Extruder→Air conveyor→Cooling machine→Air conveyor→Dryer→Air conveyor→Crusher set→Sifter→Elevator→Packing machine
7.Product Advantages
1. Using rice, corn, beans and other grains as raw materials, through extrusion, drying, crushing and mixing, a variety of nutritional powders can be produced, such as baby rice powder, sesame paste and soybean powder.
2. The production line automatically completes the process flow from the start of feeding, with simple operation, no dust leakage, sanitation and energy saving. It can be easily mixed with various raw materials and nutrients.
3. nutritional powder production line integrates mixing, extruding, drying,cooling, milling and packaging. It does not require boilers, and the production process is simplified, efficient, and environmentally friendly.
4. The extruder adopts domestic high-efficiency twin-screw extrusion technology, and the screw segmented combined structure can meet the needs of different grain raw materials. The raw materials can be rice flour and corn flour as a single material, or a mixture of them.
