Fish Feed Extruder Machine

The crude protein content of floating feed is about 30% to 40%. The nutritional value of sinking feed is very high. The general crude protein content is above 48%. This feed can make the body of the fish more stout and more colorful.

Lead Time: 15-25 days

Materials: stainless steel 304

Voltage: Customized, 110v-440v,50-60hz.

Core Components Brand: Siemens,Delta, Schneider, Baltur

Shipping: Support to sea freight, land and air freight

Service:

1 One year warranty, lifetime service

2 Local engineer on-site service available within 14 working days


  Contact Now
Product Details

Fish Feed Extruder Machine


1.Introduction

Slow sinking feed is a quite superior and scientific feed at present. It is produced by using sinking or floating fish feed extruder, the usage of distinctive technological know-how to manage the water absorption velocity of feed in water and regulate the relationship between sinking pressure and buoyancy. Adjust its settling velocity and performance. Its settling pace is notably slow, between the floating extruded cloth and the sinking material, mainly appropriate for aquaculture fish residing in the center and decrease layers of the water body.sinking or floating fish feed extruder can produce floating fish feed,sinking fish feed and sluggish sinking fish feed.


2.Production Video

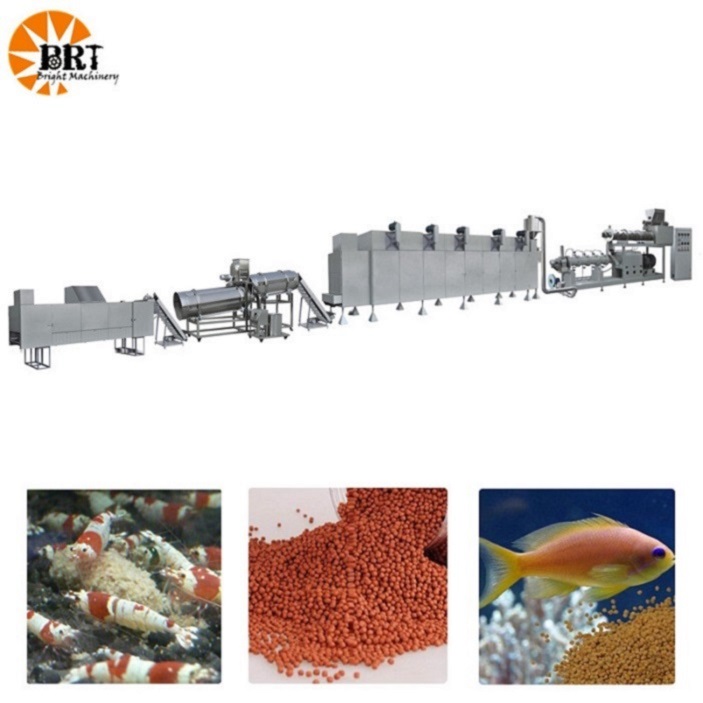

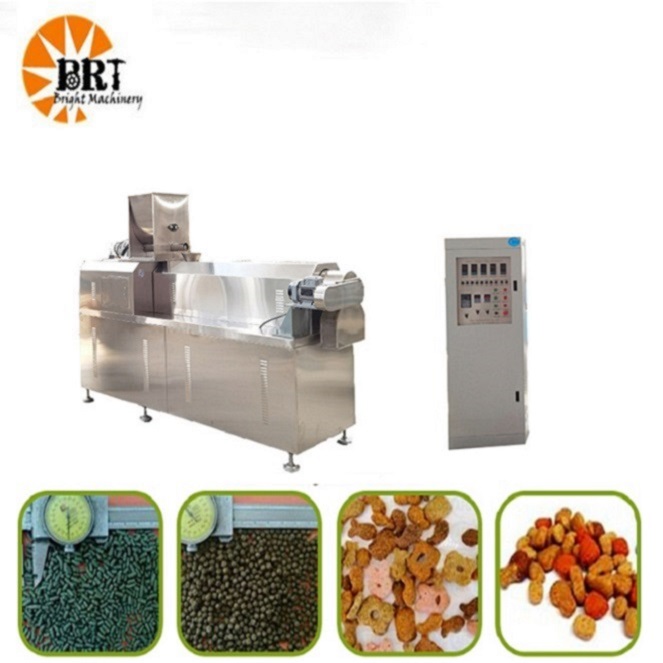

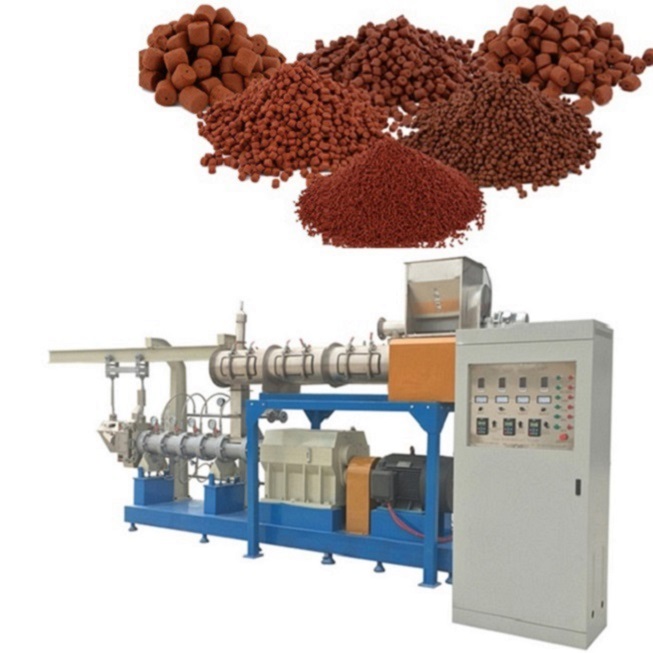

3.Machine Display

Fish Feed Extruder Machine


4.Samples

Fish Feed Extruder Machine


5.Technical Parameter

Model

Install power(kw)

Actuall consumption(kw)

Capacity

Size(mm)

DSE-65 production line

80

56-64

100-150 kg/h

21000*1500*3000

DSE-70 production line

116

82-93

200-250 kg/h

21000*1500*3000

DSE-75 production line

154

108-123

300-350 kg/h

25000*1500*3200

DSE-85 production line

194

137-156

400-500 kg/h

25000*1500*3200

DSE-95S productionline

165(Steam dryer)

115-132

1000-1800 kg/h

28000*1500*3500

DSE-95S-2 production line

295(Steam dryer)

206-236

2000-3000 Kg/h

25000*20000*6000

DSE-95S-3 production line

375(Steam dryer)

263-300

3000-4000 Kg/h

25000*20000*13000

DSE-95S-4 production line

496(Steam dryer)

347-397

4000-5000 Kg/h

30000*25000*16000

DSE-130S production line

540(Steam dryer)

380-432

5000-6000 Kg/h

30000*30000*16000


6.Flow Chart

Mixer→Screw Conveyor→Extruder→Air Conveyor→Dryer→Hoister→Flavoring System→Cooling Conveyor

Fish Feed Extruder Machine


7.Product Advantages

1.Sinking or floating fish feed extruder adopts Siemens main motor, Delta inverter, Schneider Omron ABB electrical components, the world's top brands, efficient and stable operation, reliable quality, durable, global accessories, can be directly purchased locally, effectively reducing production cost.


Fish Feed Extruder Machine Fish Feed Extruder Machine Fish Feed Extruder Machine Fish Feed Extruder Machine


2. The sinking or floating fish feed extruder screw material is high-speed alloy steel, carburized, with hardness up to HRC 55-65, high wear resistance, high hardness, good toughness, optional 38CrMoAl, 12CrMoV, W6Mo5Cr4V2 material, long service life. Some sinking or floating fish feed extruder models are equipped with a combination screw, which has wider applicability of raw materials. The screw combination method of the sinking or floating fish feed extruder can be adjusted according to different products, and one machine can be used for multiple purposes.


Fish Feed Extruder Machine Fish Feed Extruder Machine Fish Feed Extruder Machine Fish Feed Extruder Machine


3.The main motor, rotary cutting motor and feeding motor are all controlled by frequency conversion, so the sinking or floating fish feed extruder can realize soft start and effectively protect the motor, and can adjust the speed according to the product status to produce higher quality products; equipped with PLC touch screen control system, equipment temperature and The speed adjustment is more digital and the control is more precise.


Fish Feed Extruder Machine Fish Feed Extruder Machine Fish Feed Extruder Machine Fish Feed Extruder Machine


4.Using a new type of box, the box material QT400, good stability. Gear material 20CrNiMoA, carburizing and quenching, hardness HRC58-62, high precision, low noise, long service life; using Japanese NSK, SKF bearings, high precision, long life, stable performance; oil pump motor, forced internal circulation lubrication; condenser, lower The surface temperature of gears and bearings increases the service life; the filter cleans the impurities in the oil, improves the lubrication effect and prolongs the service life.


Fish Feed Extruder Machine Fish Feed Extruder Machine Fish Feed Extruder MachineFish Feed Extruder Machine


5. According to the actual situation, different energy sources, electricity, fuel oil, gas, steam can be used to save production costs; equipped with circulating fans and dehumidification fans to promote heat circulation, remove water vapor, and improve drying efficiency; 304 stainless steel mesh cloth and mesh are used. belt to ensure product quality; adjustable running speed, adjust drying time according to different products, high efficiency.


Fish Feed Extruder Machine Fish Feed Extruder Machine Fish Feed Extruder Machine Fish Feed Extruder Machine
