Floating Fish Feed Extruder Machine

Floating Fish Feed Extruder Machine

1.Introduction

Slow sinking feed is a relatively advanced and scientific feed at present. It is produced by sinking or floating fish feed extruder, using special technology to control the water absorption speed of feed in water and adjust the relationship between sinking force and buoyancy. Adjust its settling speed and performance. Its settling speed is relatively slow, between the floating extruded material and the sinking material, especially suitable for aquaculture fish living in the middle and lower layers of the water body.sinking or floating fish feed extruder can produce floating fish feed，sinking fish feed and slow sinking fish feed.

2.Production Video

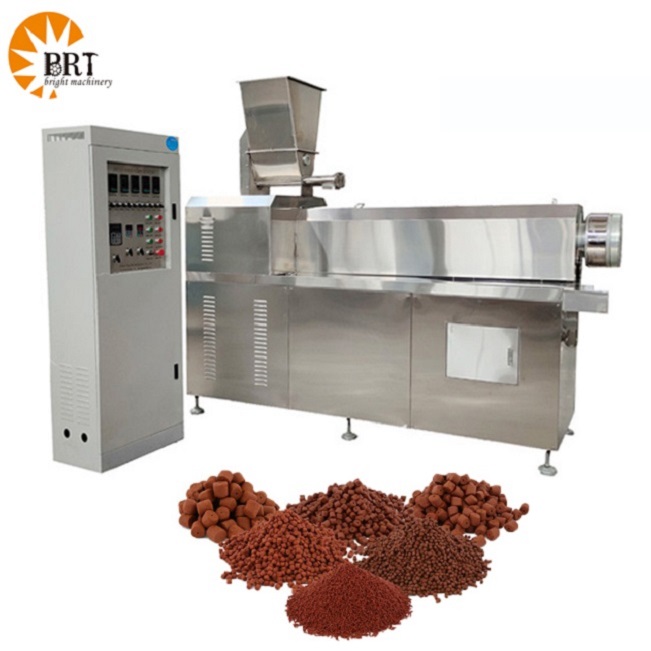

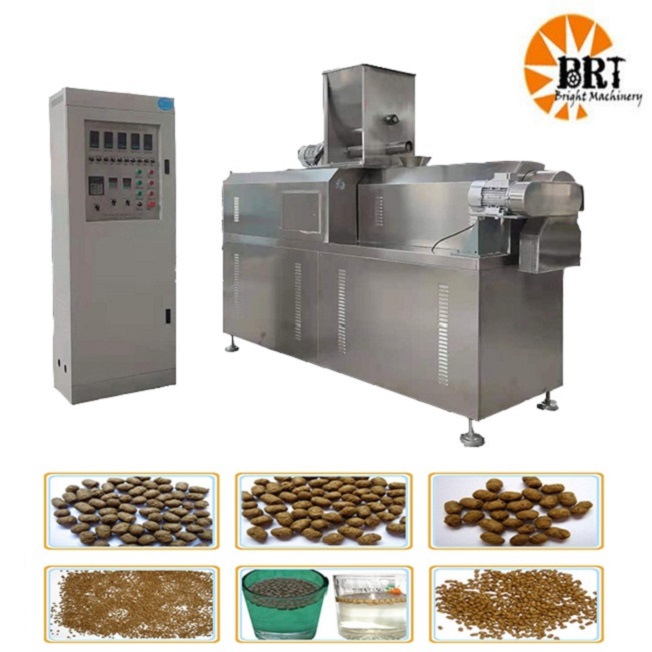

3.Machine Display

4.Samples

5.Technical Parameter

6.Flow Chart

Mixer→Screw Conveyor→Extruder→Air Conveyor→Dryer→Hoister→Flavoring System→Cooling Conveyor

7.Product Advantages

1.Sinking or floating fish feed extruder adopts Siemens main motor, Delta inverter, Schneider Omron ABB electrical components, the world's top brands, efficient and stable operation, reliable quality, durable, global accessories, can be directly purchased locally, effectively reducing production cost.

2. The sinking or floating fish feed extruder screw material is high-speed alloy steel, carburized, with hardness up to HRC 55-65, high wear resistance, high hardness, good toughness, optional 38CrMoAl, 12CrMoV, W6Mo5Cr4V2 material, long service life. Some sinking or floating fish feed extruder models are equipped with a combination screw, which has wider applicability of raw materials. The screw combination method of the sinking or floating fish feed extruder can be adjusted according to different products, and one machine can be used for multiple purposes.

3.The main motor, rotary cutting motor and feeding motor are all controlled by frequency conversion, so the sinking or floating fish feed extruder can realize soft start and effectively protect the motor, and can adjust the speed according to the product status to produce higher quality products; equipped with PLC touch screen control system, equipment temperature and The speed adjustment is more digital and the control is more precise.

4.Using a new type of box, the box material QT400, good stability. Gear material 20CrNiMoA, carburizing and quenching, hardness HRC58-62, high precision, low noise, long service life; using Japanese NSK, SKF bearings, high precision, long life, stable performance; oil pump motor, forced internal circulation lubrication; condenser, lower The surface temperature of gears and bearings increases the service life; the filter cleans the impurities in the oil, improves the lubrication effect and prolongs the service life.

5. According to the actual situation, different energy sources, electricity, fuel oil, gas, steam can be used to save production costs; equipped with circulating fans and dehumidification fans to promote heat circulation, remove water vapor, and improve drying efficiency; 304 stainless steel mesh cloth and mesh are used. belt to ensure product quality; adjustable running speed, adjust drying time according to different products, high efficiency.
