TSP Soya Chunks Extrusion Making Machines

TSP soya chunks extrusion making machines use of low-temperature soybean meal, soybean protein isolate, gluten powder, etc. as the most important uncooked materials. Processes such as melting, cooking, excessive temperature sterilization, extrusion molding, etc., shape a layered hard fiber structure, thereby producing a layered muscle fiber structure, excessive strength, excessive sturdiness comparable to meat texture and taste. Depending on the die and auxiliary equipment, shapes such as cylinders, blocks, sheets, strips, granules, puddings, crumbs, etc. can be produced respectively. It is sturdy and resistant to high temperature stewing, so it can be extensively used in meat products, speedy food, quick-frozen food, stuffing, immediately noodle seasoning, etc. It can additionally be made into vegetarian meat snack meals and vegetarian dishes of extraordinary flavors. TSP soya chunks extrusion making machines is a whole set of completely automated manufacturing lines, consisting of uncooked cloth mixing, extrusion molding, drying, cooling and different equipment, and there are manufacturing strains with one-of-a-kind outputs and configurations.


Lead Time: 15-25 days

Materials: stainless steel 304

Voltage: Customized, 110v-440v,50-60hz.

Core Components Brand: Siemens,Delta, Schneider, Baltur

Shipping: Support to sea freight, land and air freight

Service:

1 One year warranty, lifetime service

2 Local engineer on-site service available within 14 working days


  Contact Now
Product Details

TSP Soya Chunks Extrusion Making Machines


1.Introduction

Tvp/tsp is a sort of soybean wire-drawing protein meals which is comparable to meat texture and style with layered muscle fiber structure, excessive electricity and excessive longevity with the aid of the use of low-temperature soybean meal, soybean protein isolate and gluten powder as the fundamental uncooked materials.
Raw substances are on the entire processed soybean products, inclusive of defatted soybean meal, protein listen, protein isolate, gluten, and so forth.

Tissue drawing protein is produced by TSP soya chunks extrusion making machines. TSP soya chunks extrusion making machines know-how adopts a new kind of twin-screw extruder, and its screw adopts a segmented mixture graph shape of purposeful screw segments; TSP soya chunks extrusion making machines's barrel is additionally segmented, geared up with water injection ports, exhaust ports, etc., and every phase of the barrel is impartial Heating and temperature control, and the full size of the barrel is outfitted with an automated water circulation cooling system, which can precisely manipulate the temperature; TSP soya chunks extrusion making machines adopts a PLC contact display centralized shrewd manage system, and the manufacturing parameters can be managed automatically, easily and accurately.

2.Production video

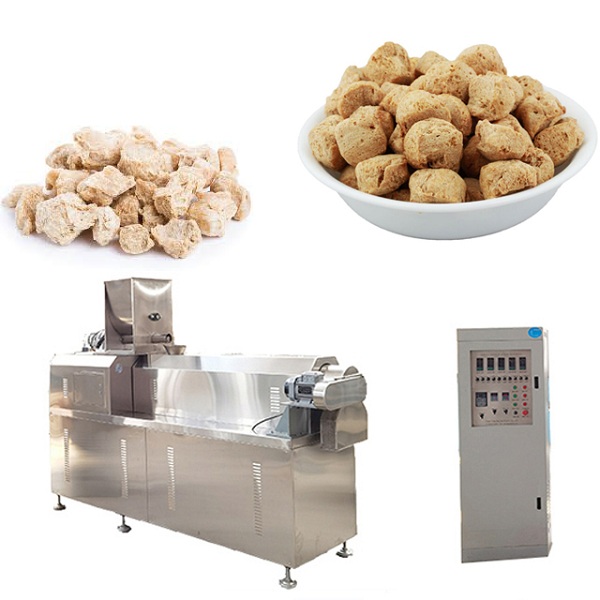

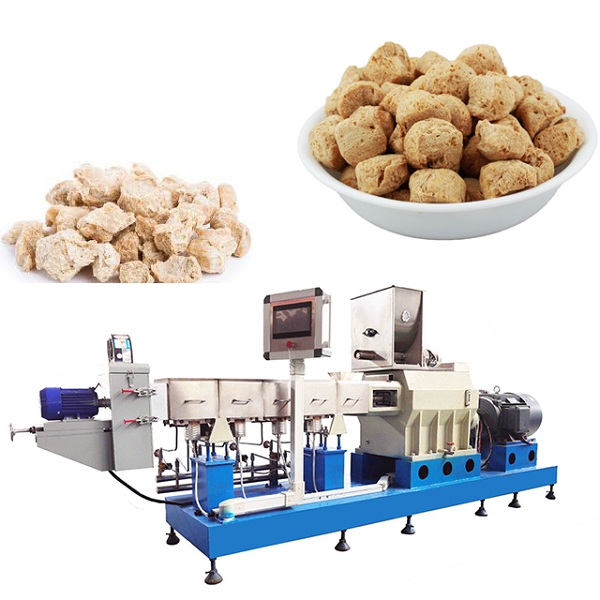

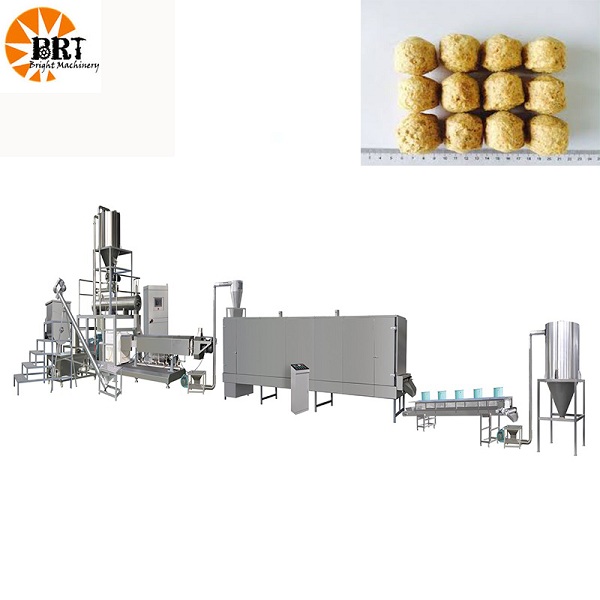

3.Machine display

TSP Soya Chunks Extrusion Making Machines


4.Samples

TSP Soya Chunks Extrusion Making Machines.jpg


5.Technical parameter

Model

Capacity/output

Installed Power

Power Consumption

Dimension

DSE65 Soy Protein Production Line

200-250kg/h

116kw

93kw

20*3*2.2m

DSE65F Soy Protein Production Line

200-300kg/h

134kw

107kw

24*3*2.2m

DSE77 Soy Protein Production Line

300-400kg/h

158kw

126kw

26*3*2.2m

DSE75F Soy Protein Production Line

300-500kg/h

178kw

143kw

30*3*2.2m

DSE85 Soy Protein Production Line

400-500kg/h

210kw

168kw

36*3*2.2m

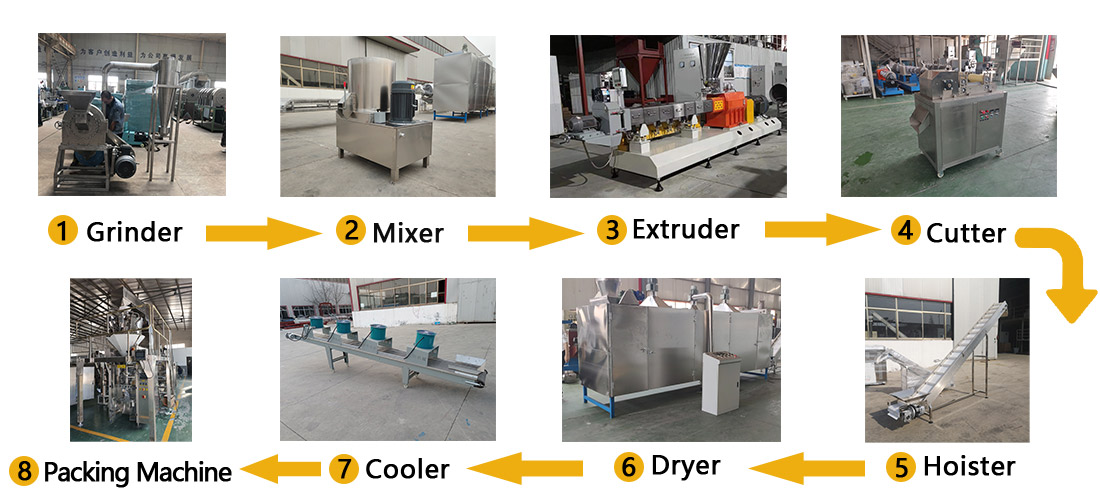

6.Flow chart

Feeder Nose→Dust Collector→Bucket Elevator→Permanent Magnetic Drum→Bucket Elevator→Silo→Milling Machine Group→Bucket Elevator→Silo→Mixer→Bucket Elevator→Silo→Double Screw Extruder→Conveyor→Cutter→Hoister→Dryer→Hoister→Cooler→Sifter→Hoister→Packing Machine

TSP Soya Chunks Extrusion Making Machines


7.Product advantages

TSP soya chunks extrusion making machines for TVP/TSP soya protein is a continuous, high-temperature, high-pressure, and short-term sterilization process. The soy protein food produced by this TSP soya chunks extrusion making machines has good water absorption and oil retention characteristics, strong taste, high temperature resistance and stew, so it can be widely used in meat products, fast food, frozen food, stuffing, instant noodle seasoning and so on. Compared with the traditional production process, TSP soya chunks extrusion making machines produces Soy protein has the following characteristics:


1. It can modify protein molecules to form a new cross-linked and layered fiber structure, and has good rehydration and oil retention performance; it can decompose protein, which is easy to digest and absorb, and its nutritional value is improved.


TSP Soya Chunks Extrusion Making Machines TSP Soya Chunks Extrusion Making Machines TSP Soya Chunks Extrusion Making Machines TSP Soya Chunks Extrusion Making Machines


2. Short production process, low production cost, high output, energy saving and high efficiency, simple equipment supporting, small footprint, convenient operation, no sewage and waste gas generation, environmental protection and low carbon.


3. Optional Delta or Siemens brand PLC control system, more accurate and convenient


TSP Soya Chunks Extrusion Making Machines TSP Soya Chunks Extrusion Making Machines TSP Soya Chunks Extrusion Making Machines TSP Soya Chunks Extrusion Making Machines


4. Modular screw with building block structure effectively reduces replacement cost.  Screw material is 38CrMoV or 12CrMoV, strong and durable


TSP Soya Chunks Extrusion Making Machines TTSP Soya Chunks Extrusion Making Machines TSP Soya Chunks Extrusion Making Machines TSP Soya Chunks Extrusion Making Machines


5.  Famous brand electrical parts, safe and reliable, NSK or SKF brand bearing, long working life, low noise


TSP Soya Chunks Extrusion Making Machines TSP Soya Chunks Extrusion Making Machines TSP Soya Chunks Extrusion Making Machines TSP Soya Chunks Extrusion Making Machines
