Corn Puff Snack Extruder

Lead Time: 15-25 days

Materials: stainless steel 304

Voltage: Customized, 110v-440v,50-60hz.

Core Components Brand: Siemens,Delta, Schneider, Baltur

Shipping: Support to sea freight, land and air freight

Service:

1 One year warranty, lifetime service

2 Local engineer on-site service available within 14 working days


  Contact Now
Product Details

Corn Puff Snack Extruder


1 Introduction

Corn Puff Snack Extruder makes powdered uncooked substances which consist of corn flour into puff snack through the machine of mixing,puffing,drying,flavoring and cooling. the same manufacturing line can produce puff snacks of a variety of patterns and sizes. at the equal time,at the same time, the same puff snack can be matched with incredible machine production strains in step with precise ability


2 Production Video

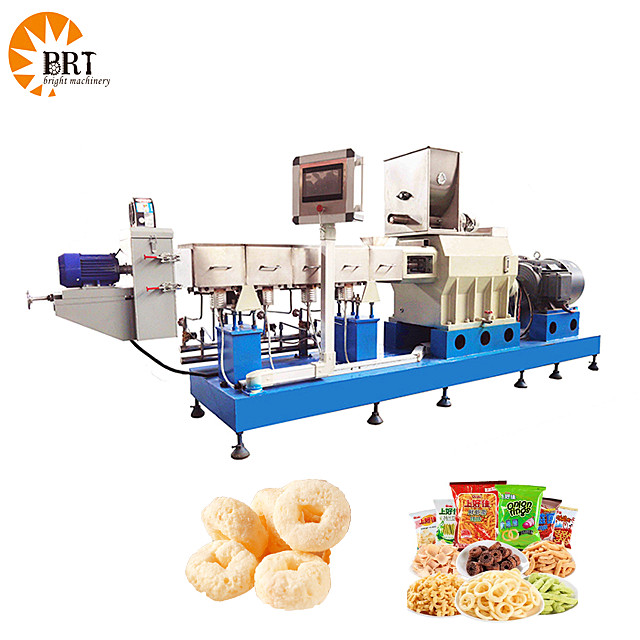

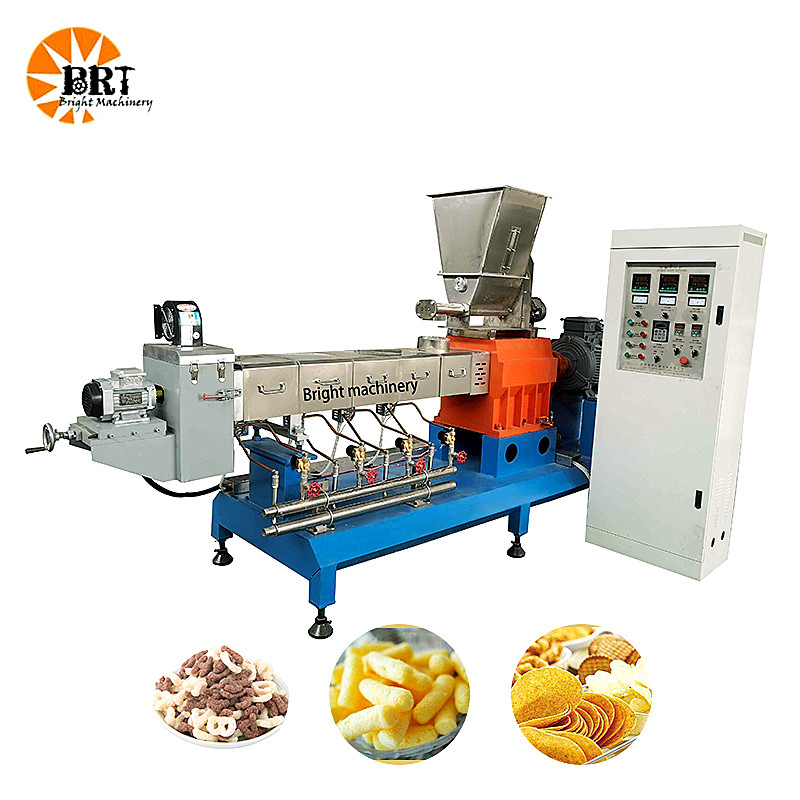

3 Machine Display

Corn Puff Snack Extruder


4 Samples

Corn Puff Snack ExtruderCorn Puff Snack Extruder Corn Puff Snack ExtruderCorn Puff Snack Extruder


Corn Puff Snack ExtruderCorn Puff Snack Extruder Corn Puff Snack ExtruderCorn Puff Snack Extruder


5 Technical Parameter

Model

Capacity/output

Installed Power

Power Consumption

Dimension

DSE65 Puff Snack Production Line

100-150kg/h

120kw

96kw

26*3*2.2m

DSE65F Puff Snack Production Line

100-150kg/h

124kw

100kw

26*3*2.2m

DSE70 Puff Snack Production Line

200-250kg/h

164kw

132kw

28*3*2.2m

DSE70F Puff Snack Production Line

200-250kg/h

130kw

104kw

26*3*2.2m

DSE85 Puff Snack Production Line

300-500kg/h

270kw

216kw

32*3*2.2m

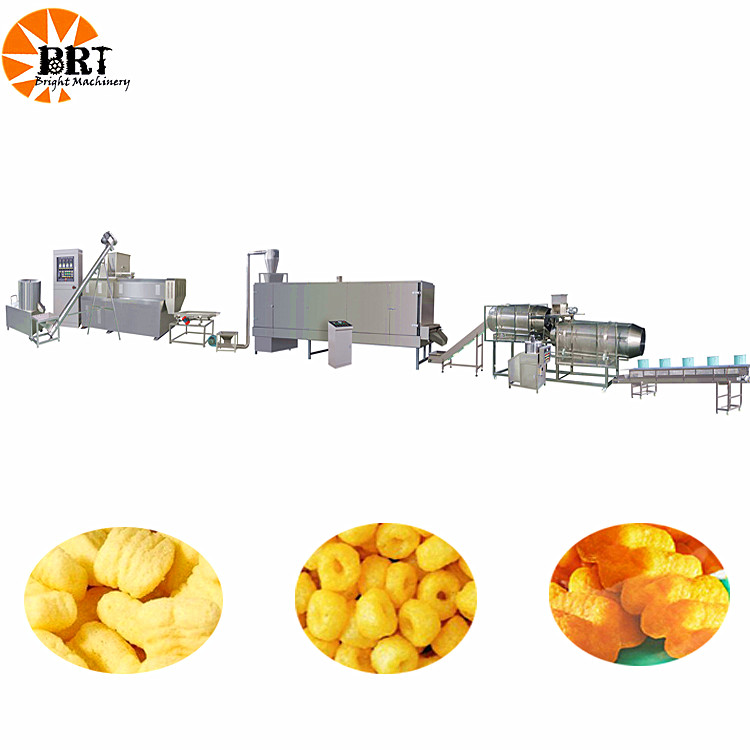

6 Flow Chart

Mixer→Screw Conveyor→Extruder→Air Conveyor→Dryer→Hoister→Flavoring System→Cooling ConveyorCorn Puff Snack Extruder


7 Product Advantage

1.Corn Puff Snack Extruder Adopt Siemens motor, Delta inverter, Schneider Omron ABB electrical components, the world's well-known brands, safe, dependable and durable, can correctly manage the motor velocity in accordance to the country of the product, limit consumption.


Corn Puff Snack Extruder Corn Puff Snack Extruder Corn Puff Snack Extruder Corn Puff Snack Extruder


2.The screw cloth is high-speed alloy steel, carburized, with hardness up to HRC 55-65, excessive put on resistance, excessive hardness, appropriate toughness, non-compulsory 38CrMoAl, 12CrMoV, W6Mo5Cr4V2 material, lengthy provider life. Some Corn Puff Snack Extruder are geared up with a mixture screw, which has wider applicability of uncooked materials. The screw aggregate approach can be adjusted in accordance to exceptional products, and one Extruder can be used for more than one purposes.


Corn Puff Snack Extruder Corn Puff Snack Extruder Corn Puff Snack Extruder Corn Puff Snack Extruder


3.Corn Puff Snack Extruder's major motor, rotary slicing motor and feeding motor are all managed with the aid of frequency conversion, which can understand smooth begin and successfully guard the motor, and can alter the pace in accordance to the product repute to produce greater fine products; geared up with PLC contact display screen manage system, tools temperature and The pace adjustment is extra digital and the manage is greater precise.


Corn Puff Snack Extruder Corn Puff Snack Extruder Corn Puff Snack Extruder Corn Puff Snack Extruder


4.Corn Puff Snack Extruder using a new kind of box, the container cloth QT400, right stability. Gear cloth 20CrNiMoA, carburizing and quenching, hardness HRC58-62, excessive precision, low noise, lengthy carrier life; the use of Japanese NSK, SKF bearings, excessive precision, lengthy life, secure performance; oil pump motor, compelled inside circulation lubrication; condenser, decrease The floor temperature of gears and bearings will increase the provider life; the filter cleans the impurities in the oil, improves the lubrication impact and prolongs the provider life.


Corn Puff Snack Extruder Corn Puff Snack Extruder Corn Puff Snack Extruder Corn Puff Snack Extruder


5.According to the authentic situation, Corn Puff Snack Extruder distinctive electricity sources, electricity, gas oil, gas, steam can be used to shop manufacturing costs; geared up with circulating followers and dehumidification followers to promote warmth circulation, eliminate water vapor, and enhance drying efficiency; 304 stainless metal mesh material and mesh are used. belt to make certain product quality; adjustable jogging speed, modify drying time in accordance to distinct products, excessive efficiency.


Corn Puff Snack Extruder Corn Puff Snack Extruder Corn Puff Snack Extruder Corn Puff Snack Extruder
