Tortilla Chips Processing Extruder

Tortilla Chips Processing Extruder

1.Introduction

The Nachos/Doritos/Tortilla manufacturing line is made of corn flour after extrusion, molding and frying. Tortilla Chips Processing Extruder predominant factors are corn meal, water, vegetable oil and salt. After frying, spray on the ground with vary of flavoring powder. Because of its crisp and delicious, it is cherished with the aid of early life and adults. Tortilla Chips Processing Extruder is equipped with world-renowned electrical elements and frequency converters, which are included and reliable

2.Production Video

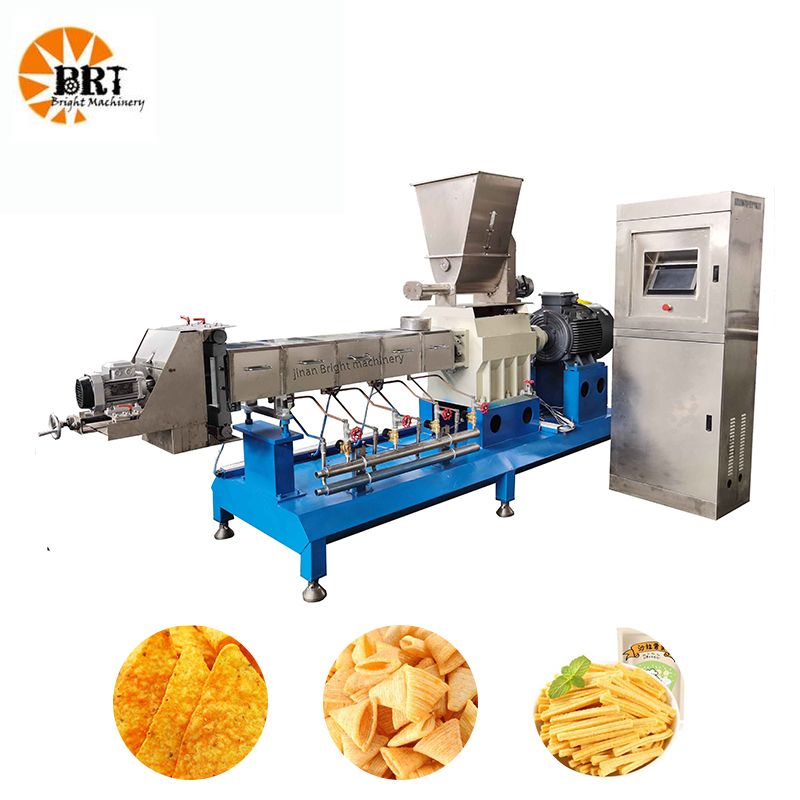

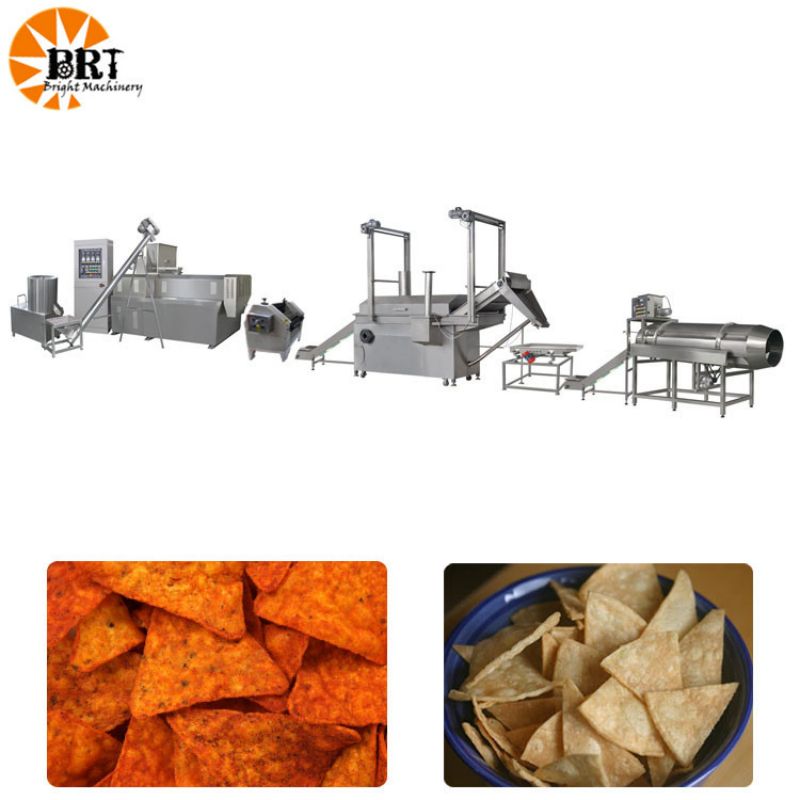

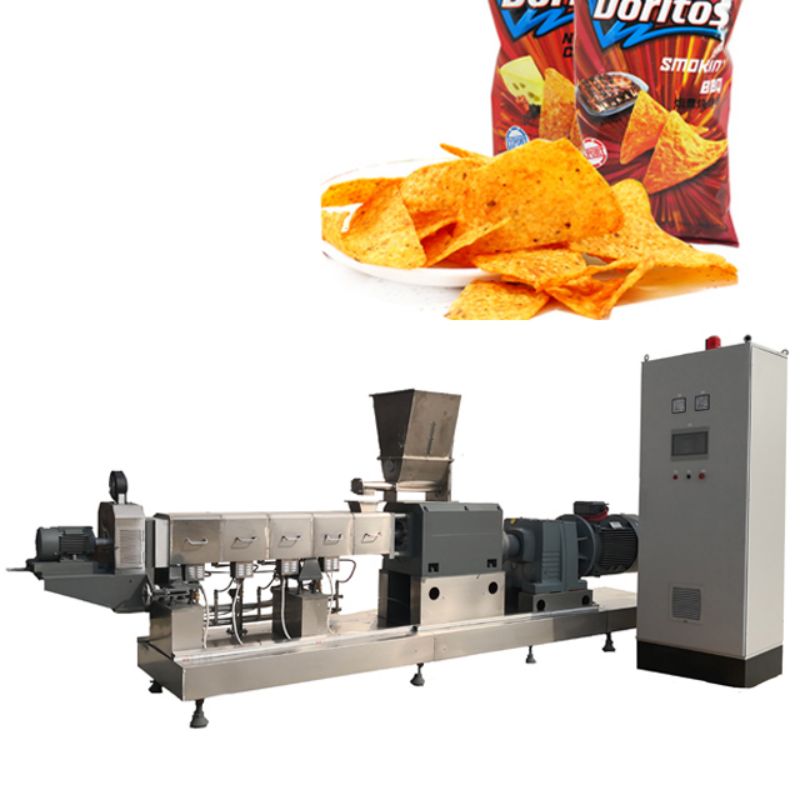

3.Machine Display

4.Samples

5.Technical Parameter

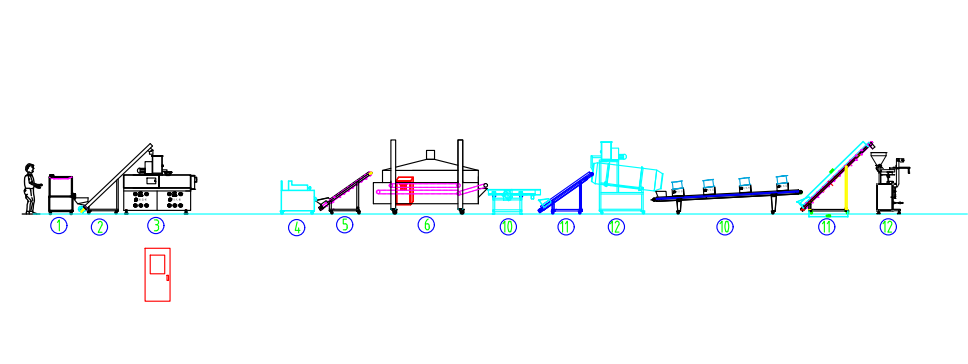

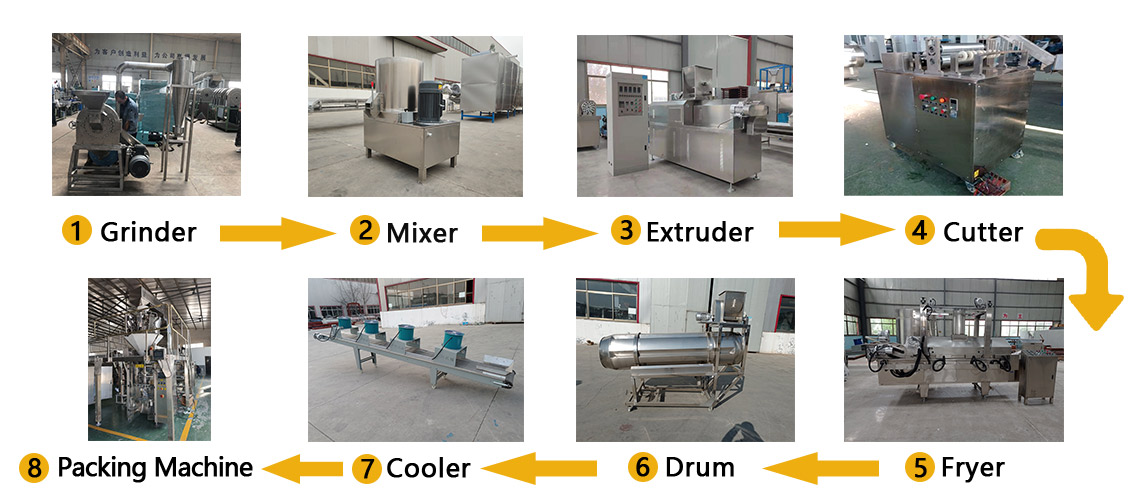

6.Flow Chart

Mixer→Screw Conveyor→Extruder→Cutter→Hoister→Fryer→Deoilling Machine→Hoister→Flavoring Drum→Cooling Conveyor→Hoister→Packing Machine

7.Product Advantages

1 Tortilla Chips Processing Extruder undertake Siemens fundamental motor, Delta frequency control converter, Schneider Omron ABB electrical components, the world's pinnacle brands, surroundings pleasant and invulnerable operation, reliable quality, durable, global accessories, can be right now offered locally, efficaciously reducing manufacturing value

2. The Tortilla Chips Processing Extruder screw fabric is high-speed alloy steel, carburized, with hardness up to HRC 55-65, excessive put on resistance, excessive hardness, top toughness, optionally available 38CrMoAl, 12CrMoV, W6Mo5Cr4V2 material, lengthy carrier life. Some Tortilla Chips Processing Machine fashions are outfitted with a mixture screw, which has wider applicability of uncooked materials. The Tortilla Chips Processing Extruder screw aggregate approach can be adjusted in accordance to extraordinary products, and one laptop can be used for more than one purposes.

3 The important motor, rotary reducing motor and feeding motor of Tortilla Chips Processing Extruder are all managed through frequency conversion, which can recognize tender begin and correctly shield the motor, and can alter the pace in accordance to the product repute to produce greater fine products; Tortilla Chips Processing Machine outfitted with PLC contact display screen manipulate system, gear temperature and The pace adjustment is greater digital and the manage is extra precise.

4 Using a new type of box, the box material QT400, good stability. Gear material 20CrNiMoA, carburizing and quenching, hardness HRC58-62, high precision, low noise, long service life; using Japanese NSK, SKF bearings, high precision, long life, stable performance; oil pump motor, forced internal circulation lubrication; condenser, lower The surface temperature of gears and bearings increases the service life; the filter cleans the impurities in the oil, improves the lubrication effect and prolongs the service life

5.The fried food Tortilla Chips Processing Machine is equipped with a fryer for curing, equipped with an oil filter system to keep the oil clean, ensure product quality and reduce production costs; it is equipped with an oil storage tank, automatic oil replenishment, and internal heating to ensure stable oil temperature and better finished product effect. ; Zone heating of Tortilla Chips Processing Extruder, adjustable heating temperature to meet the needs of different types of products for frying
