Lead Time: 15-25 days
Materials: stainless steel 304
Voltage: Customized, 110v-440v,50-60hz.
Core Components Brand: Siemens,Delta, Schneider, Baltur
Shipping: Support to sea freight, land and air freight
Service:
1 One year warranty, lifetime service
2 Local engineer on-site service available within 14 working days
Fortified Rice Production Line
1.Introduction
The fortified rice manufacturing line is a meals production tool advanced and produced via the company regular with the cutting-edge food vitamins goals. the producing system adapts to the overall state of affairs of people's nutritional strengthening remedy in current-day society, meets people's requirements for nutritional balance, and has the benefits of excessive diploma of automation and energy saving. the producing line can use numerous grains collectively with rice, millet, black rice, buckwheat, and so on. as uncooked materials, upload numerous nutrients, proteins and minerals for processing, squeeze, mature and form in an extruder to regenerate new stronger nutrients rice, its ingesting method is just like herbal rice and it's miles an awful lot much less complex and in addition to be had, every nutritious and wholesome.
2.Production Video

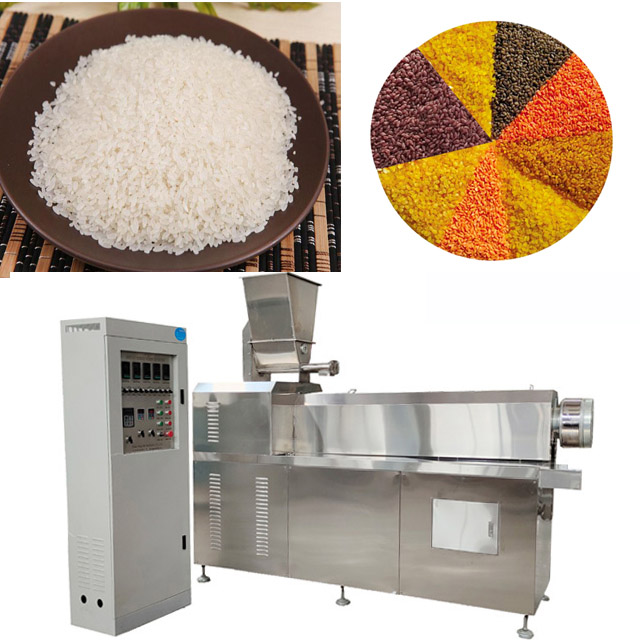

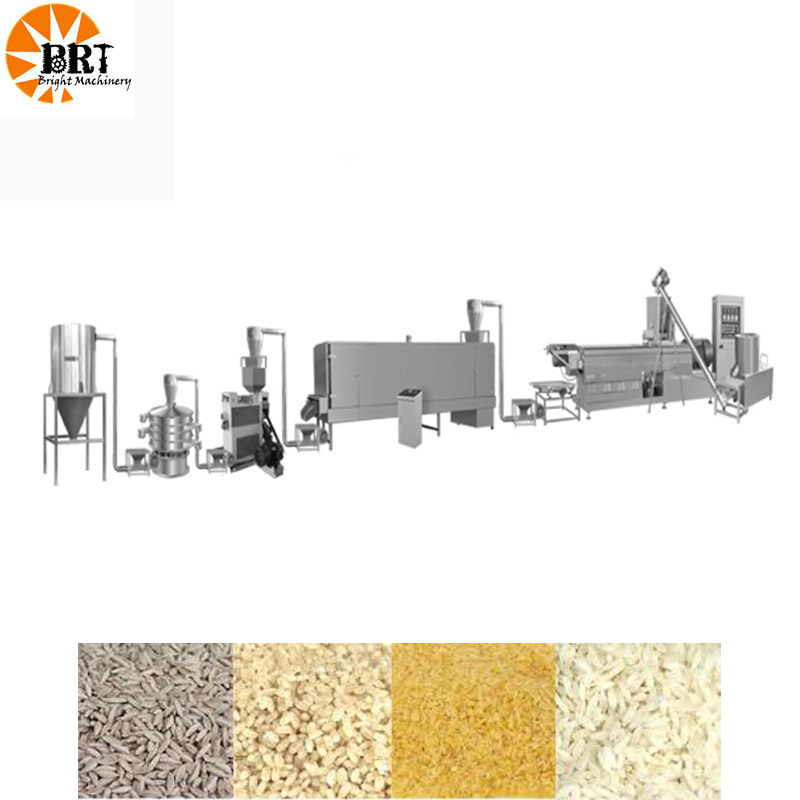

3.Machine Display
4.Samples
5.Technical Parameter
Model | Install power(kw) | Actuall consumption(kw) | Capacity | Size(mm) |
DSE-70 production line | 120 | 84-96 | 150-200 kg/h | 21000*1500*3000 |
DSE-75C production line | 150 | 105-120 | 250-300 kg/h | 24000*1500*3000 |
DSE-95C Production line | 490 | 342-392 | 400-500 kg/h | 32000*1500*3000 |
6.Flow Chart

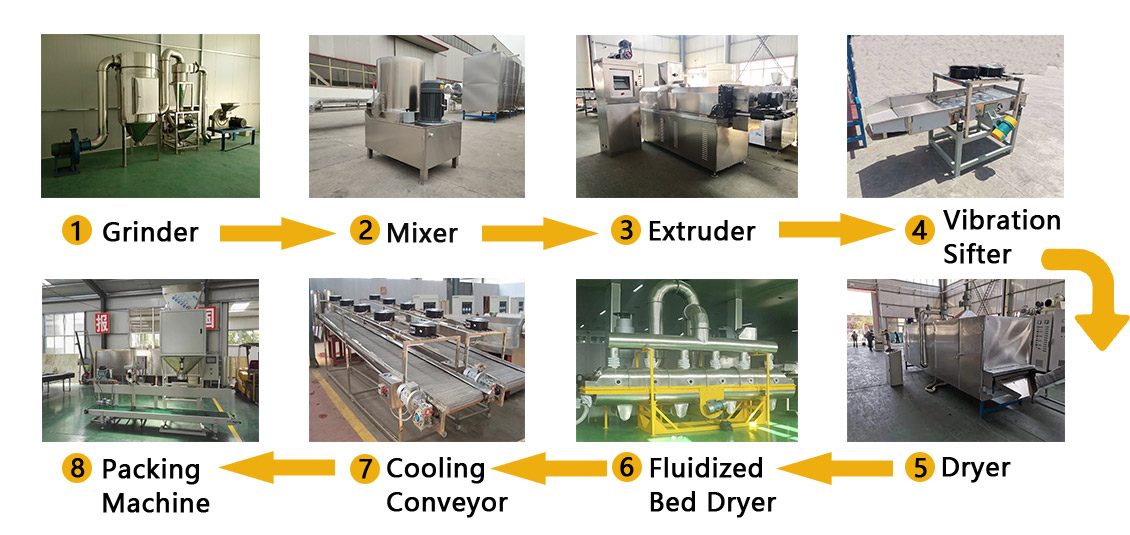

Flow chart:Grider→Mixer→Screw conveyor→Extruder→Vibration cooling machine→Air conveyor→Dryer→Cooling conveyor
7.Product Advantages
1. PLC touch screen control,easy operation,precise control,International famous parts and electric components,promise machine quality.Imported bearing set, strong carrying capacity and long service life.
2. The barrel is equipped with a water injection device to better meet the requirements of raw materials and quality,also can have a larger range of raw material adoption,Wider applicability of raw materials, can add a variety of nutrients to produce nutritional rice with different functions.
3. Building block type combined screw, can be combined freely according to different raw materials and products,High-speed tool steel material, hardness HRC≥62, long service life,Unique rotary cutting design to ensure product consistency and surface smoothness.
4. The dryer uses fully insulated box, adopts internal thermal circulation method, high thermal efficiency, low energy consumption.The dryer has single-layer, three-layer, five-layer, and seven-layer ovens; multiple structures such as extended, reciprocating, etc.; multiple heating methods: electricity, steam, fuel/gas, available for selection, customer customization, choose the most suitable machine.
