Lead Time: 15-25 days
Materials: stainless steel 304
Voltage: Customized, 110v-440v,50-60hz.
Core Components Brand: Siemens,Delta, Schneider, Baltur
Shipping: Support to sea freight, land and air freight
Service:
1 One year warranty, lifetime service
2 Local engineer on-site service available within 14 working days
Kurkure Making Line
1.Introduction
Kurkure is a special sort of squeezed meals that is very crunchy within the mouth. the corn grits are blended with a certain proportion of water after which enter the rotary head extruder. beneath the squeezing and kneading movement of the 2 turntables of the extruder, the corn grits shape abnormal twisted shapes, after which the slicing knife cuts them into the favored duration.cheetos may be seasoned after deep-frying or roasting. it is very popular amongst clients because of its scrumptious taste.
2.Production Video

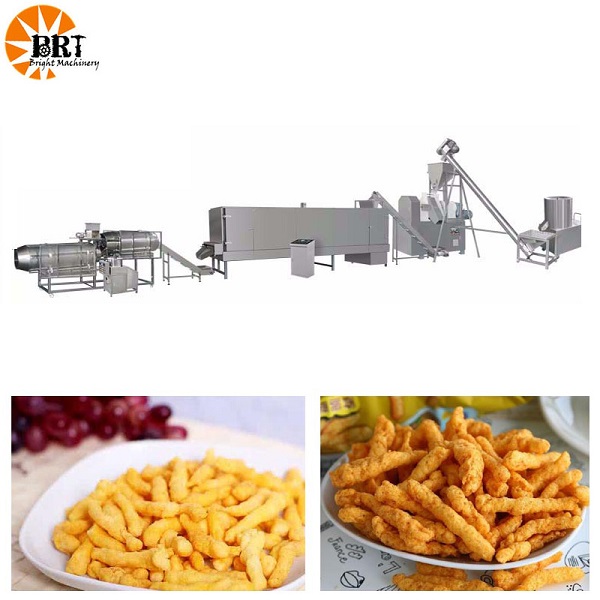

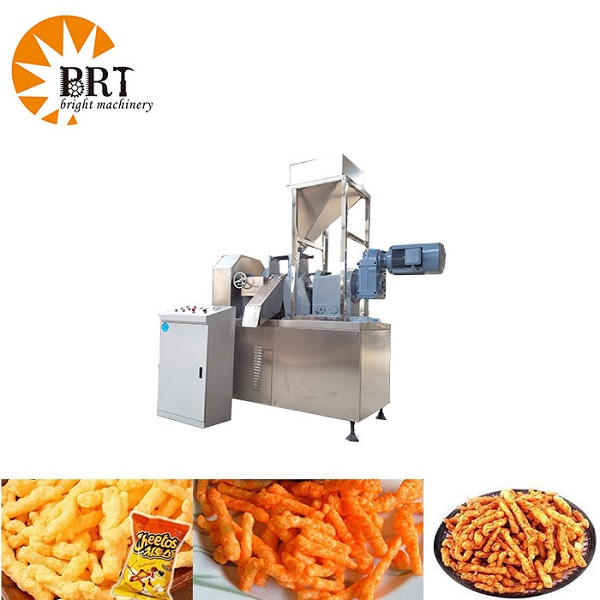

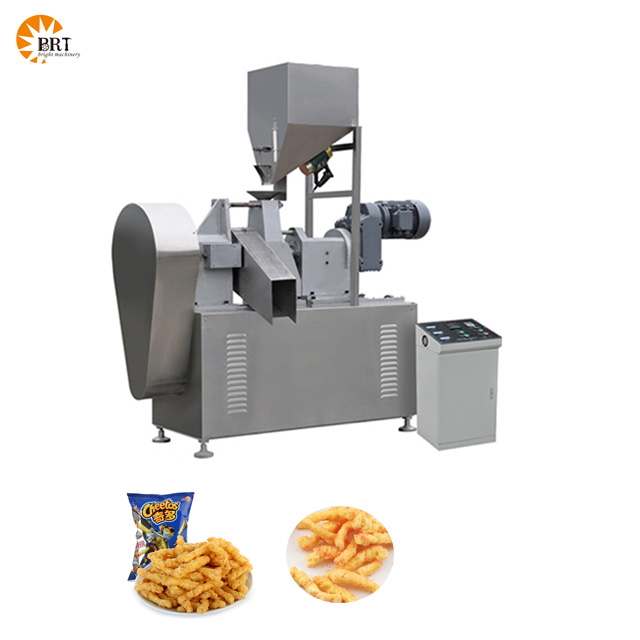

3.Machine Display
4.Samples
5.Technical Parameter
Model | Install power(kw) | Actuall consumption(kw) | Capacity | Size(mm) |
SSE-76-1 production line | 80 | 56-64 | 100-150 kg/h | 21000*1500*3000 |
SSE-76-2 production line | 100 | 70-80 | 150-200 kg/h | 21000*1500*3000 |
6.Flow Chart
Mixer→Screw conveyor→Extruder→Hoist→Roller screen→Hoistr→Fryer→De-oilling machine→Hoist→Flavoring roller→Cooling conveyor→Hoist→Packing machine
7.Product Advantages
1. The kurkure cheetos production line is have two different type: frying and baking,can choose the type depending on local market.Both dryer can fryer have different option for heating energy.Electric.fuel gas and fuel oil.
2. The latest rubbing and squeezing technology makes the product crisp and delicious,guarantee the product quality,uses bronze cutting pan to make the cheetos shape,high pressure and high temperature to have a good cure effect.
3. Exquisitely designed and precise control system,to adopt different material and make sure get the demanded puffing effect,the feeding and cutting motor frequency can be conreolled by the inverter,adjust according to material and final product.
4. The key parts are made of brass, which has good abrasion resistance,promise long service life,screw material 38CrMoAl,HRC 58-62,service life 1.5-2 years.
5. Food and material contact part is made by stainless steel 304 and food grade PVC,promise the food safety,the feeding silo and outlet are made by stainless steel 304,the silo with inspection window to check the material if need to feed or stop feeding.
