Kurkure Snack Production Line Machine

Kurkure Snack Production Line Machine

1.Introduction

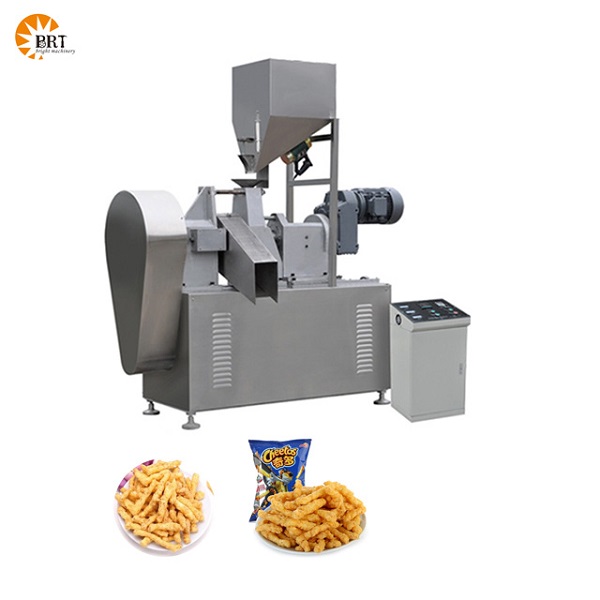

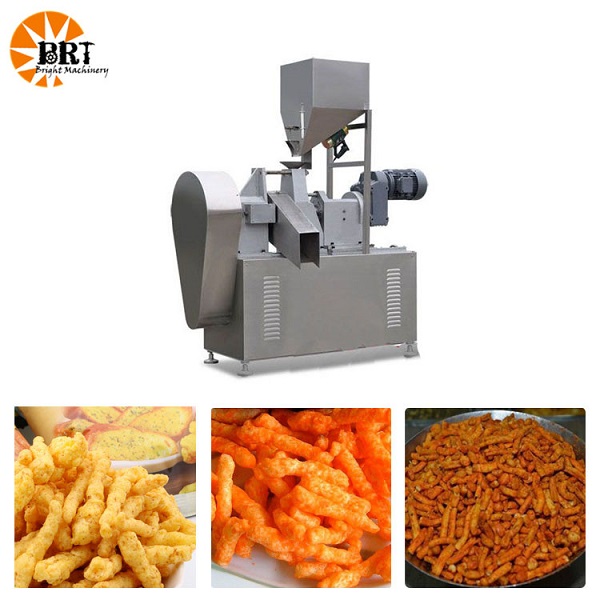

Cheetos is a special type of squeezed food that is very crunchy in the mouth. The corn grits are mixed with a certain proportion of water and then enter the rotary head extruder. Under the squeezing and kneading action of the two turntables of the extruder, the corn grits form irregular twisted shapes, and then the cutting knife cuts them into the desired length.Cheetos can be seasoned after deep-frying or roasting. It is very popular among consumers because of its delicious flavor.Various outputs to meet different needs. The integrated control cabinet makes the operation more simple and easy to learn. Self cleaning function improves the use experience and saves time.

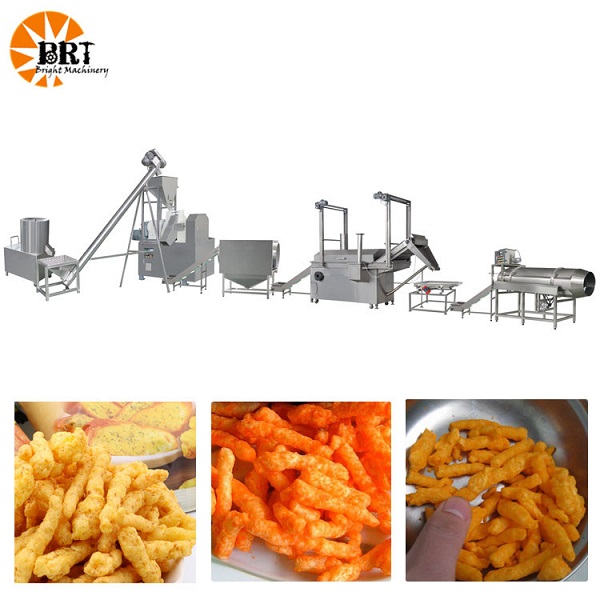

Frying type: ①Flour mixing machine→②Screw conveyor→③Rotary head extruder→④Elevator→⑤Separation cylinder→⑥Vibrating feeder→⑦Continuous fryer→⑧Vibration deoiling machine→⑨Seasoning line

2.Production Video

3.Machine Display

4.Samples

5.Technical Parameter

6.Flow Chart

Mixer→Screw conveyor→Extruder→Hoist→Roller screen→Hoistr→Fryer→De-oilling machine→Hoist→Flavoring roller→Cooling conveyor→Hoist→Packing machine

7.Product Advantages

1. The kurkure cheetos production line is have two different type: frying and baking,can choose the type depending on local market.Both dryer can fryer have different option for heating energy.Electric.fuel gas and fuel oil.

2. The latest rubbing and squeezing technology makes the product crisp and delicious,guarantee the product quality,uses bronze cutting pan to make the cheetos shape,high pressure and high temperature to have a good cure effect.

3. Exquisitely designed and precise control system,to adopt different material and make sure get the demanded puffing effect,the feeding and cutting motor frequency can be conreolled by the inverter,adjust according to material and final product.

4. The key parts are made of brass, which has good abrasion resistance,promise long service life,screw material 38CrMoAl,HRC 58-62,service life 1.5-2 years.

5. Food and material contact part is made by stainless steel 304 and food grade PVC,promise the food safety,the feeding silo and outlet are made by stainless steel 304,the silo with inspection window to check the material if need to feed or stop feeding.
