Automatic Nutritional Powder Machine

Automatic nutritional powder machine with rice, corn, beans and other grains as raw materials, extrusion extrusion, drying, grinding and mixing, can produce a variety of nutrition powder, such as baby rice flour, sesame paste and bean flour. Automatic nutritional powder machine from the start of feeding process automatic completion, simple operation, no dust leakage, health and energy saving. It can be easily combined with various raw materials and nutrients.


Lead Time: 15-25 days

Materials: stainless steel 304

Voltage: Customized, 110v-440v,50-60hz.

Core Components Brand: Siemens,Delta, Schneider, Baltur

Shipping: Support to sea freight, land and air freight

Service:

1 One year warranty, lifetime service

2 Local engineer on-site service available within 14 working days


  Contact Now
Product Details

Automatic Nutritional Powder Machine


1.Introduction

The Automatic Nutritional Powder Machine equipment configuration is flexible, the production product is diversified the equipment operation is simple, automatic nutritional powder machine self-cleaning is good, the work runs stably

The ovens of this automatic nutritional powder machine series production line have a wide range of application, which can be used to dry puffed food or other materials such as strip, block and granule. Users can choose drying boxes with different layers, lengths and heat sources according to the materials. Automatic nutritional powder machine is compact in design, reasonable and easy to operate. Double pitch roller chain drive, round-trip drying, smooth operation, no stuck phenomenon. Baking temperature, time adjustable, baking effect is excellent. Equipped with high efficiency and energy saving combustion system, the heat source distribution is reasonable, the material is heated evenly, the energy consumption is low, the output is large.

2.Production Video

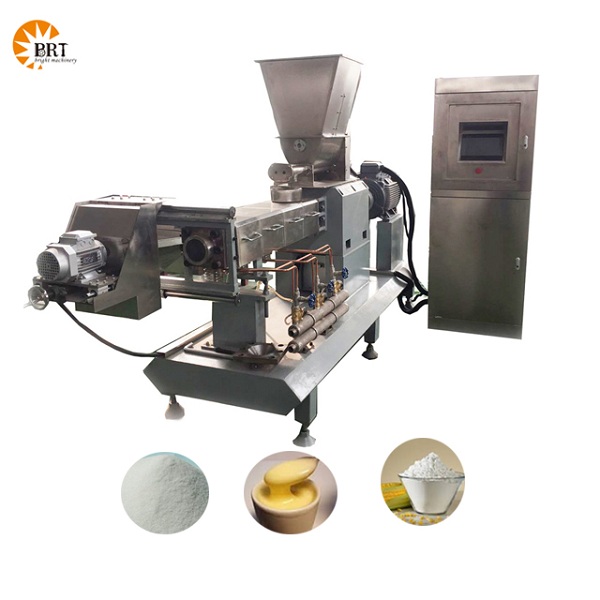

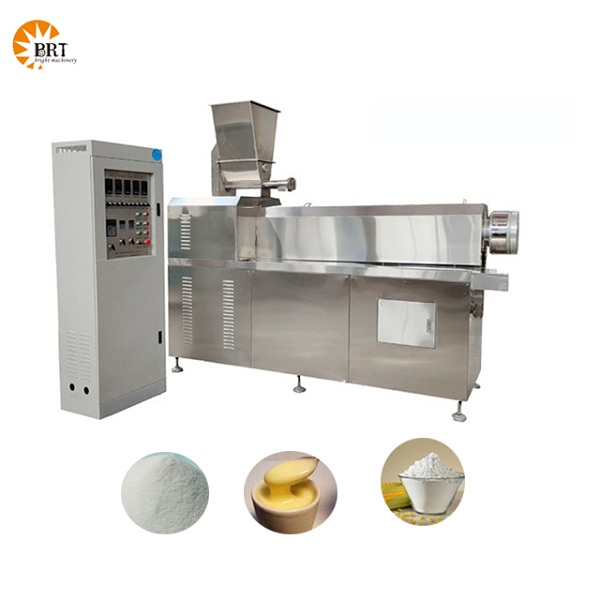

3.Machine Display

Automatic Nutritional Powder Machine


4.Samples

Automatic Nutritional Powder Machine .jpg


5.Technical Parameter

Model

Install power(kw)

Actuall consumption(kw)

Capacity

Size(mm)

DSE-65 production line

80

56-64

100-150 kg/h

21000*1500*3000

DSE-70 production line

116

82-93

200-250 kg/h

21000*1500*3000

DSE-75 production line

154

108-123

300-350 kg/h

25000*1500*3200

DSE-85 production line

194

137-156

400-500 kg/h

25000*1500*3200

DSE-85S production line

121(Steam dryer)

85-97

600-800 kg/h

28000*1500*3500

DSE-95S production line

165(Steam dryer)

115-132

1000-1800 kg/h

28000*1500*3500


6.Flow Chart

Screw conveyor→Mixer→Bucket elevator→Extruder→Air conveyor→Cooling machine→Air conveyor→Dryer→Air conveyor→Crusher set→Sifter→Elevator→Packing machine

Automatic Nutritional Powder Machine


7.Product Advantages

1. Automatic nutritional powder machine using rice, corn, beans and other grains as raw materials, through extrusion, drying, crushing and mixing, a variety of nutritional powders can be produced, such as baby rice powder, sesame paste and soybean powder.


Automatic Nutritional Powder Machine  Automatic Nutritional Powder Machine  Automatic Nutritional Powder Machine  Automatic Nutritional Powder Machine


2. Automatic nutritional powder machine completes the process flow from the start of feeding, with simple operation, no dust leakage, sanitation and energy saving. It can be easily mixed with various raw materials and nutrients.


Automatic Nutritional Powder Machine  Automatic Nutritional Powder Machine  Automatic Nutritional Powder Machine  Automatic Nutritional Powder Machine


3. nutritional powder production line integrates mixing, extruding, drying,cooling, milling and packaging. It does not require boilers, and the production process is simplified, efficient, and environmentally friendly.


Automatic Nutritional Powder Machine  Automatic Nutritional Powder Machine  Automatic Nutritional Powder Machine  Automatic Nutritional Powder Machine


4. Automatic nutritional powder machine extruder adopts domestic high-efficiency twin-screw extrusion technology, and the screw segmented combined structure can meet the needs of different grain raw materials. The raw materials can be rice flour and corn flour as a single material, or a mixture of them.


Automatic Nutritional Powder Machine  Automatic Nutritional Powder Machine  Automatic Nutritional Powder Machine  Automatic Nutritional Powder Machine
